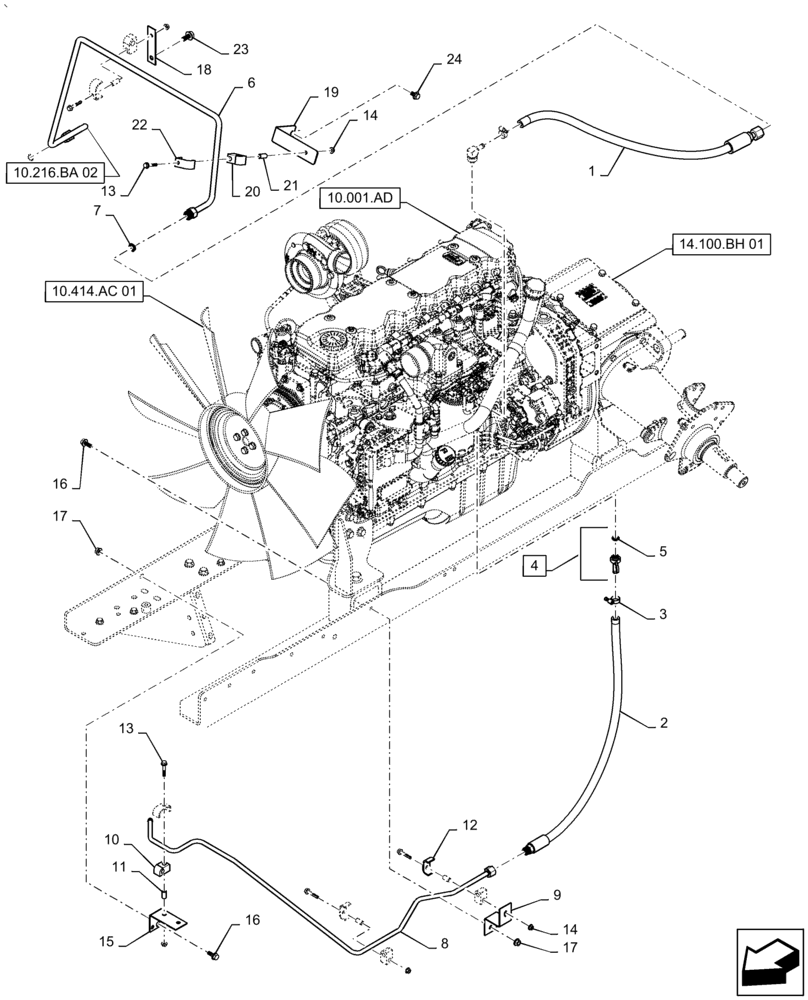

Запчасти Case IH AF4077 (10.216.BA[01]) - ENGINE FRAME, FUEL LINE CIRCUIT (10) - ENGINE

1

84383047

HOSE,9.53mm ID x 700mm L, SAE 100R6

Assy, Fuel Supply

1шт.

2

47545276

Assy, Fuel Return

HOSE

1шт.

3

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

2шт.

4

87408919

FITTING

Straight, Incl 5

1шт.

5

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

Special, Fitting

1шт.

6

84535335

TUBE

Assy, Fuel Supply

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

8

47553092

Assy, Fuel Return

TUBE

1шт.

9

87727868

BRACKET

Support, Fuel Line Supply

1шт.

10

449127A1

CLAMP

Tube Single

3шт.

11

418785A1

SPACER

3шт.

12

449128A1

CLAMP,20mm ID

3шт.

13

87698832

FLANGE BOLT,Hex, M6 x 35mm, Cl 10.9

5шт.

14

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

5шт.

15

87301600

BRACKET

Fuel Return

1шт.

16

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

2шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

18

47458513

SUPPORT

Fuel Line

1шт.

19

47601671

Fuel Line Support

ANGLE

1шт.

20

87644666

CLAMP

2шт.

21

303793A1

SLEEVE

Spacer, Tube Clamp

2шт.

22

87644667

PLATE

Tube Clamp

2шт.

23

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

1шт.

24

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

Flange

1шт.

25

8605735

90 ELBOW

1шт.
