Запчасти Case IH AF4077 (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

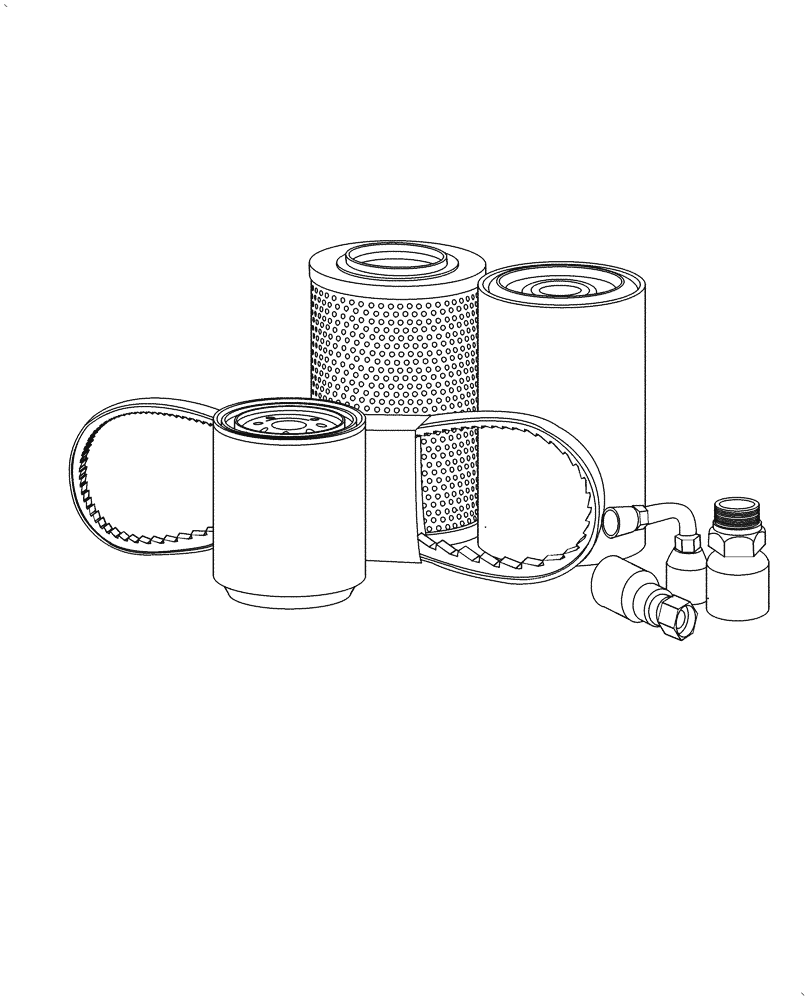

Схема запчастей Case IH AF4077 - (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

From Engine

1шт.

2

132151A1

AIR FILTER

Primary

1шт.

3

87682993

AIR FILTER,91mm ID x 164.5mm OD x 347.5mm L

Engine, Primary

5шт.

4

84313864

FUEL FILTER

Assy, severe Duty

5шт.

5

84352375

V-BELT

V, Rotor Drive, HN, Inverter

1шт.

6

47424853

V, Separator Drive, 5H 5V

V-BELT

1шт.

7

84376536

BELT

V, Aux Pump Drive, 2HP

1шт.

8

1989217C1

V-BELT,22.327 mm W x 3712.09 mm L

V, Unloader Drive

1шт.

9

47581837

V, Header Drive, Corn, 3HC

V-BELT

1шт.

10

132149A1

AIR FILTER

1шт.

11

87629602

V-BELT,22.23mm W x 3722.60mm L

Feeder Drive Without Rock Trap

1шт.

12

301146A1

V-BELT,31.80 mm W x 1847.25 mm L

Fan Drive 72.75 in OC

1шт.

13

87642957

V-BELT,22.23 mm W x 3238.00 mm L

Fan Jackshaft Drive Aramid Cord

1шт.

14

87476486

V-BELT,22.33 mm W x 5105.40 mm L

Cleaning System Drive With Chopper

1шт.

15

84172256

V-BELT,5654.00 mm L

Straw Spreader Drive

1шт.

16

84363681

V-BELT

V, Chopper Drive Cl 5

1шт.

17

47778259

Alternator

BELT

1шт.

18

1329214C1

HYDRAULIC OIL FILTER

Replacement Element

1шт.

19

84283691

FUEL FILTER

Element

2шт.

20

87803261

ENGINE OIL FILTER

From Engine

5шт.

21

86999949

FUEL FILTER

8шт.

22

87489502

V-BELT,12.7mm W

1шт.

Выбрано товаров: 22
