Запчасти Case IH AF4077 (80.150.AA[05]) - GRAIN TANK ASSY (80) - CROP STORAGE/UNLOADING

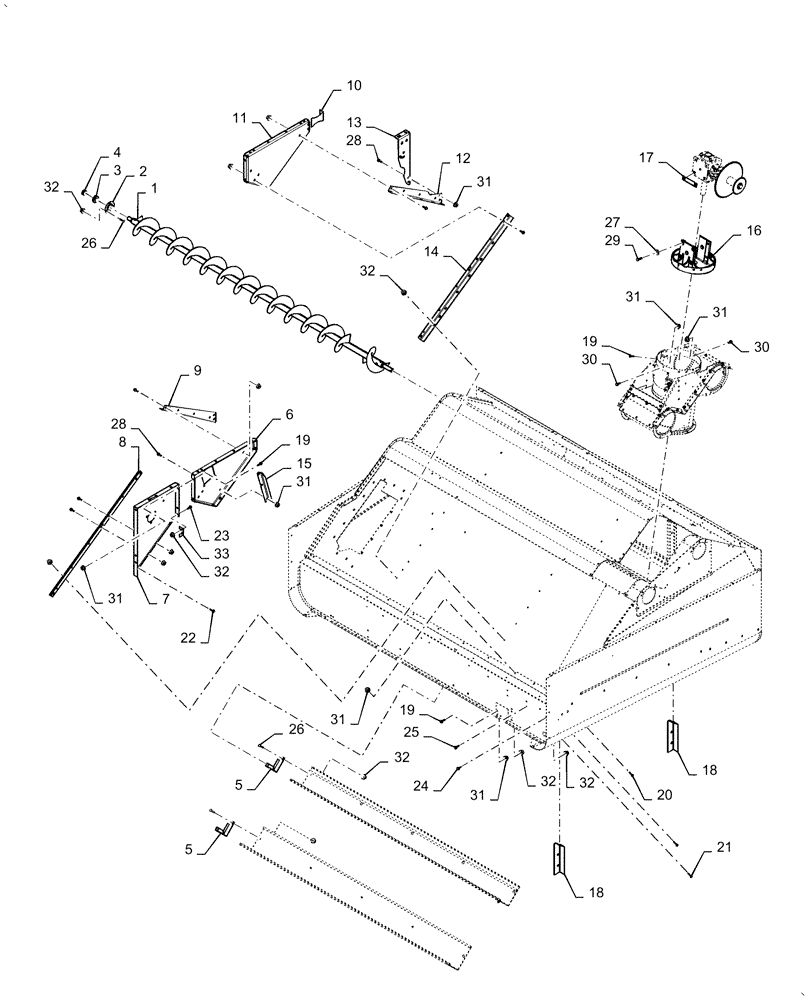

Схема запчастей Case IH AF4077 - (80.150.AA[05]) - GRAIN TANK ASSY (80) - CROP STORAGE/UNLOADING
30
31
28
32
31
5
16
11
20
31
31
6
31
29
28
26
2
32
3
15
5
7
30
4
10
24
26
22
23
32
18
27
32
32
19
14
19
33
12
31
13
8
31
19
21
18
32
25
1
17
9

Артикул

Название

Примечание

Количество

1

87653251

AUGER

Assy, Grain Tank Cross, Use for 2015

2шт.

1

47914989

Assy ,Grain Tank, Cross, Use from 2016, Start Serial: After 8/12 ECO 35222709

AUGER

2шт.

2

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Spherical, Housing

4шт.

3

214366C91

BALL BEARING,25.40mm ID x 52mm OD

Head Shaft

2шт.

4

87431217

COLLAR,25.43mm ID x 38.1mm OD x 13.5mm W

Lock

2шт.

5

47458752

Auger Cover End

SUPPORT

2шт.

6

47678519

Grain Tank Center, LH

SUPPORT

1шт.

7

47678591

Tank Rear, LH

SUPPORT

1шт.

8

47458777

Rear Tank Bottom, LH

ANGLE

1шт.

9

47458769

Front, LH, Tank

SUPPORT

1шт.

10

47458780

Filler

PLATE

4шт.

11

47748316

Grain Tank Center, RH

SUPPORT

1шт.

12

47679790

Front, RH, Tank

SUPPORT

1шт.

13

47678530

Grain Tank, RH, Front

SUPPORT

1шт.

14

47458779

Rear Tank Bottom, RH

SUPPORT

1шт.

15

47458789

Concave Control Support

ANGLE

1шт.

16

1347177C1

SUPPORT

Unloader Lower Gear Box

1шт.

17

47458781

Unloader Lower Gearbox

SHIM

4шт.

18

47688820

Bracket, Tank Front

SUPPORT

2шт.

19

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

29шт.

20

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

51шт.

21

847-3825

SERRATED SCREW,M8 x 25mm, Cl 10.9

3шт.

22

87673844

SELF-TAP SCREW,M8 x 1.25 x 20mm

2шт.

23

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

1шт.

24

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

1шт.

25

87698833

BOLT,M8 x 33.1mm, Cl 10.9

13шт.

26

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

10шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

28

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

19шт.

29

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

8шт.

30

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

31

86050279

FLANGE NUT,M10 x 1.5, Cl 10

50шт.

32

86507066

FLANGE NUT,M8 x 1.25, Cl 10

66шт.

33

47581979

SUPPORT

1шт.

Выбрано товаров: 34
