Запчасти Case IH AF4077 (80.101.AR[04]) - GRAIN ELEVATOR HOUSING, HEAD, EXTENDED WEAR (80) - CROP STORAGE/UNLOADING

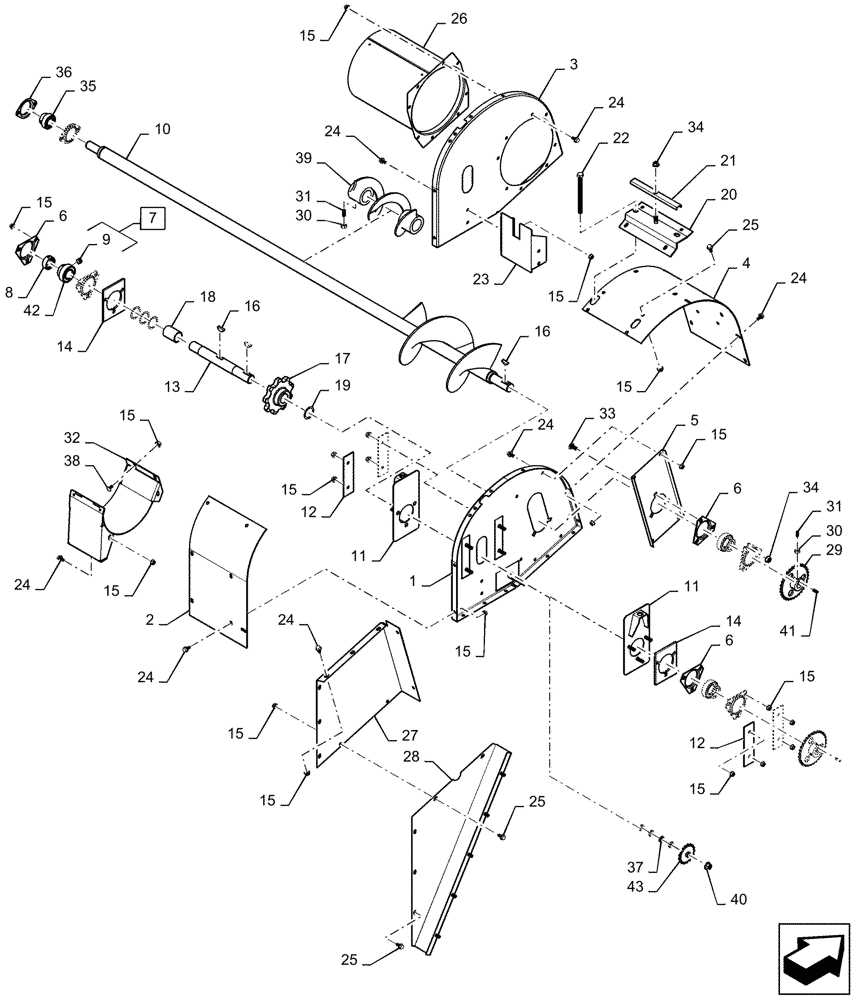

Схема запчастей Case IH AF4077 - (80.101.AR[04]) - GRAIN ELEVATOR HOUSING, HEAD, EXTENDED WEAR (80) - CROP STORAGE/UNLOADING
24
43
28
30
26
27
20
19
32
7
25
36
14
39
24
23
4
15
29
15
1
9
13
34
25
15
11
21
24
18
16
15
6
6
24
12
2
31
42
24
25
31
15
35
40
15
30
8
37
24
3
41
10
15
15
12
6
15
38
14
16
5
15
15
24
22
17
15
11
15
33
34

Артикул

Название

Примечание

Количество

1

47539633

Weld Assy, Elevator Head, RH, Extension Wear

PANEL

1шт.

2

47539806

Elevator Head Rear Extension Wear

SUPPORT

1шт.

3

47539653

Weld Assy, Elevator Head, LH, Extension Wear

PANEL

1шт.

4

47539689

Elevator Head Front Extension Wear

SUPPORT

1шт.

5

47444269

Auger, RH, Bearing

SUPPORT

1шт.

6

84414986

FLANGE

6шт.

7

325106

BALL BEARING,30mm ID x 62mm OD x 18mm W

Grain Elevator, Incl 8, 9, 42

3шт.

8

212463

RING

Span

1шт.

9

86516064

SET SCREW,M6 x 6mm, Cl 12.9

1шт.

10

47958153

Weld Assy, Horizontal Delivery, Use from 2016

AUGER

1шт.

10

47958126

Weld Assy, Horizontal Delivery, Use from 2016

AUGER

1шт.

11

47480021

Weld Assy, Headshaft

SUPPORT

2шт.

12

47444310

Guide

BAR

4шт.

13

47584282

Grain Elevator Head, Use for 2015

SHAFT

1шт.

13

47958129

Grain Elevator Head, Use from 2016

SHAFT

1шт.

14

47444316

Spacer

PLATE

2шт.

15

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Use for 2015

70шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Use from 2016

57шт.

16

10220510

WOODRUFF KEY,8mm x 11mm x 27.35mm

Use for 2015

3шт.

16

10220510

WOODRUFF KEY,8mm x 11mm x 27.35mm

Use from 2016

1шт.

17

47743162

Grain Elevator

SPROCKET

1шт.

18

47428072

SPACER

2шт.

19

87039409

SHIM,35mm ID x 45mm OD x 0.5mm Thk

6шт.

20

47479996

Weld Assy, Grain Conveyor Tightener

SUPPORT

1шт.

21

47444325

Tightener Lock

CHANNEL

1шт.

22

47598614

BOLT,Hex, M12 x 150mm, Cl 10.9

2шт.

23

47539753

Elevator Top Extension Wear

DEFLECTOR

1шт.

24

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

Flange, Use for 2015

36шт.

24

87681207

BOLT,M8 x 24.1mm, Cl 10.9

Flange, Use from 2016

35шт.

25

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Flange, Use for 2015

13шт.

25

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange, Use from 2016

6шт.

26

47539786

Weld Assy, Delivery Auger Extension Wear, Use for 2015

TUBE

1шт.

26

47921997

Weld Assy, Delivery Auger Extension Wear, Use from 2016

TUBE

1шт.

27

47444361

Lower Head Extension

SUPPORT

1шт.

28

47470761

Weld Assy, Tunnel, LH

SUPPORT

1шт.

29

47476137

Weld Assy, Elevator Head Drive, Use from 2016

SPROCKET

2шт.

30

100016

NUT,M10 x 1.5, Cl 8

Use for 2015

6шт.

30

84807411

THIN NUT,Thin, M10 x 1.5, Cl 04

Use from 2016

8шт.

31

300483

SET SCREW,M10 x 25mm

Use for 2015

6шт.

31

300483

SET SCREW,M10 x 25mm

Use from 2016

8шт.

32

47539776

Weld Assy, Horizontal Delivery Auger Extension Wear

TROUGH

1шт.

33

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

34

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

35

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

36

86548974

FLANGE,Bearing

Spherical

2шт.

37

86588503

WASHER,17mm ID x 28mm OD x 3mm Thk

Use from 2016

4шт.

38

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

2шт.

39

47581757

Weld Assy, Distributor

SUPPORT

1шт.

40

87016581

FLANGE NUT,M16 x 2, CI 10

Use from 2016

1шт.

41

47845070

SQUARE KEY

Squqre Key, Use from 2016

2шт.

42

445927

BALL BEARING,30 mm ID x 60 mm OD x 18 mm

1шт.

43

298009A1

DRIVE SPROCKET

Tightener, Use from 2016

1шт.

Выбрано товаров: 52
