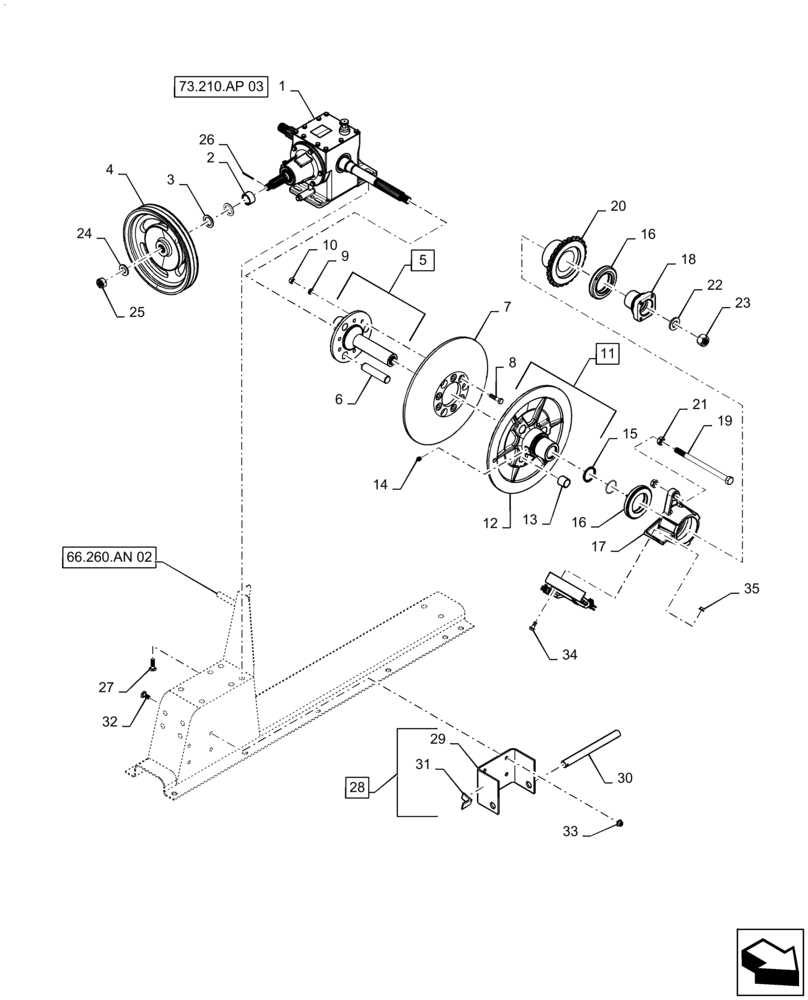

Запчасти Case IH AF4077 (73.210.AP [01]) - STRAW CHOPPER, HOUSING, GEARS & SUPPORT (73) - RESIDUE HANDLING

1

47458123

GEARBOX

1шт.

2

87745589

SPACER

Chopper Driver Pulley

1шт.

3

87629040

WASHER,1.34" ID x 2" OD x 0.12" Thk

2шт.

4

87735266

PULLEY,356mm OD

Chopper Drive

1шт.

5

47462117

HUB

Assy, Rotor Drive Variator, Incl 6

1шт.

6

191544C2

PIN,28.48mm OD x 127mm L

3шт.

7

47459332

HALF-PULLEY

Fixed

1шт.

8

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

9

492-21050

LOCK WASHER,1/2"

6шт.

10

429-108

NUT,1/2"-13, G8

6шт.

11

47452378

PULLEY

Assy, Rotor Drive Variable, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Rotor Drive Variable, Incl in 11

1шт.

13

87307839

BUSHING,30.2mm ID x 35.03mm OD x 31.75mm L

Polytetrafluoroethylene Fiber Garmax

3шт.

14

219-86

LUBE NIPPLE,1/8" NPTF

Fitting

1шт.

15

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

16

87307506

BALL BEARING,82.54mm ID x 132.06mm OD x 22.86mm W

Thrust

2шт.

17

47444104

SLEEVE

1шт.

18

47740406

Coupling, Splined

SPLINED COUPLING

1шт.

19

413-12176

BOLT,3/4"-10 x 11", Gr 5

1шт.

20

47438886

SLEEVE

1шт.

21

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

22

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

23

232-41316

NUT,1"-8, GC

1шт.

24

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

25

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

26

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

27

87495307

CARRIAGE BOLT,M12 x 45mm, Cl 10.9

6шт.

28

1315251C1

SUPPORT

Assy, Idler Pivot, Incl 29 - 31

1шт.

29

1315252C1

NO LONGER SERVICED

Channel, Support

1шт.

30

1315473C1

PIN

Idler

1шт.

31

601926R1

ANGLE

Stop

1шт.

32

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

4шт.

33

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

34

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

35

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.
