Запчасти Case IH AF4077 (55.302.AV) - BATTERY - CABLES (55) - ELECTRICAL SYSTEMS

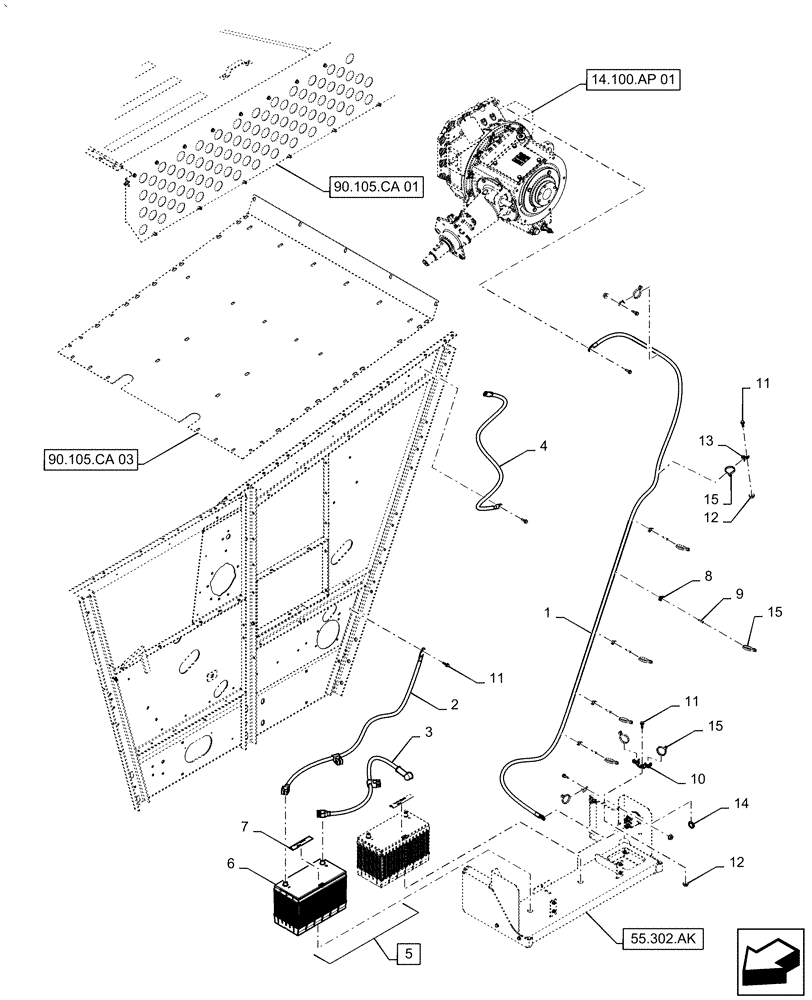

Схема запчастей Case IH AF4077 - (55.302.AV) - BATTERY - CABLES (55) - ELECTRICAL SYSTEMS
15
11
10
2
4
6
11
1
15
5
9
12
14.100.ap 01
14
11
15
8
3
90.105.ca 01
55.302.ak
7
90.105.ca 03
13
12

Артикул

Название

Примечание

Количество

1

47497182

Starter Positive

CABLE

1шт.

2

47497147

Battery, Negative

CABLE

1шт.

3

47497179

Battery, Positive

CABLE

1шт.

4

47497165

Ground, Starter

CABLE

1шт.

5

47475406

Assy, Incl 6, 7

BATTERY

2шт.

6

NSS

NOT SOLD SEPARAT

Battery, Incl In 5

1шт.

7

NSS

NOT SOLD SEPARAT

Label, CIH Top Battery, Incl In 5

1шт.

8

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

5шт.

9

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

5шт.

10

84360209

BASE

Tie

1шт.

11

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

13

47582709

For Axial With Metal Bush

MOUNT

3шт.

14

87026295

LOCK WASHER,M20 x 24.6mm OD x 2.8mm Thk

Ring, Split

1шт.

15

529070

CABLE TIE,368.3mm L

10шт.

Выбрано товаров: 15
