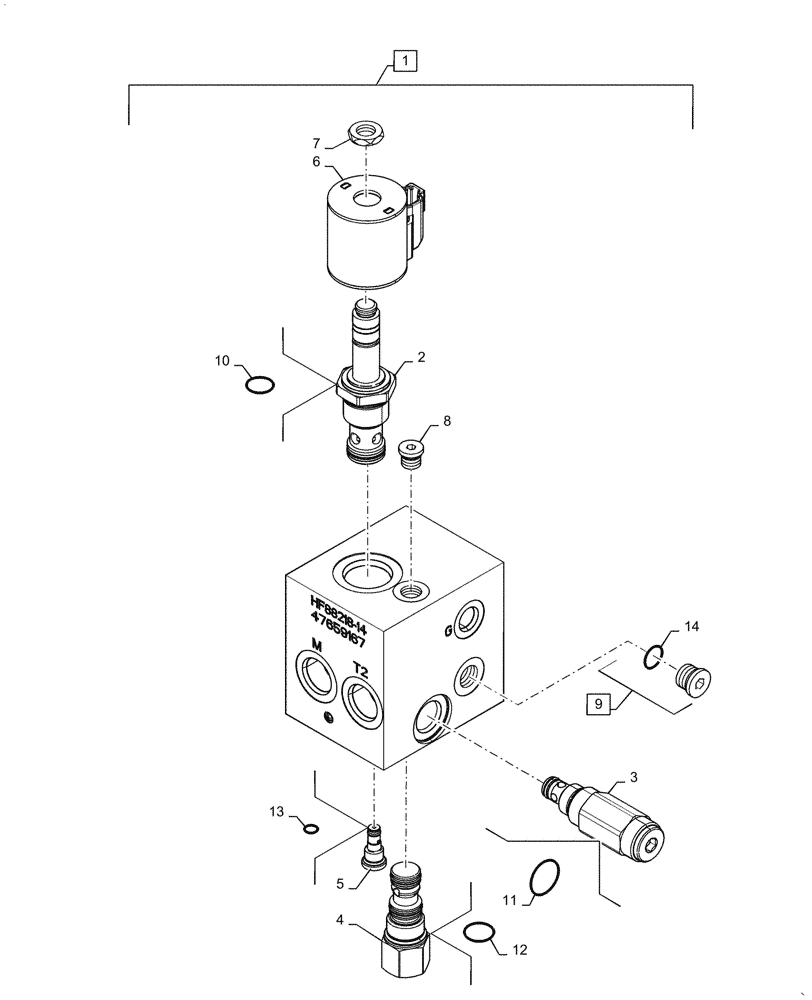

Запчасти Case IH AF4077 (35.518.AD[01]) - HYDRAULIC VALVE, REEL DRIVE (35) - HYDRAULIC SYSTEMS

1

47659167

Reel Drive, Incl 2 - 14

HYDRAULIC VALVE

1шт.

2

87582519

HYDRAULIC VALVE

Proportioal 2 - Way Cartridge, Incl 10

1шт.

3

47664159

Pressure Relief Cartridge, Incl 11

VALVE

1шт.

4

47664152

Hydraulic Pressure Reg Cartridge, Incl 12

VALVE

1шт.

5

336791A1

VALVE

Check Cartridge, Incl 13

1шт.

6

47557214

Valve Cartridge

COIL

1шт.

7

87348571

NUT,Hex, 1/2" - 20, RH

Coil

1шт.

8

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

9

9625178

PLUG,9/16" - 18 ORB

Incl 14

1шт.

10

431868A1

SEAL KIT

1шт.

11

1542831C1

SEAL KIT

1шт.

12

47444623

Kit

SEAL

1шт.

13

336792A1

SET OF PARTS

Seal Kit

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring

1шт.
