Запчасти Case IH AF4077 (35.357.AA) - ACCUMULATOR, MOUNTING AND SYSTEM (35) - HYDRAULIC SYSTEMS

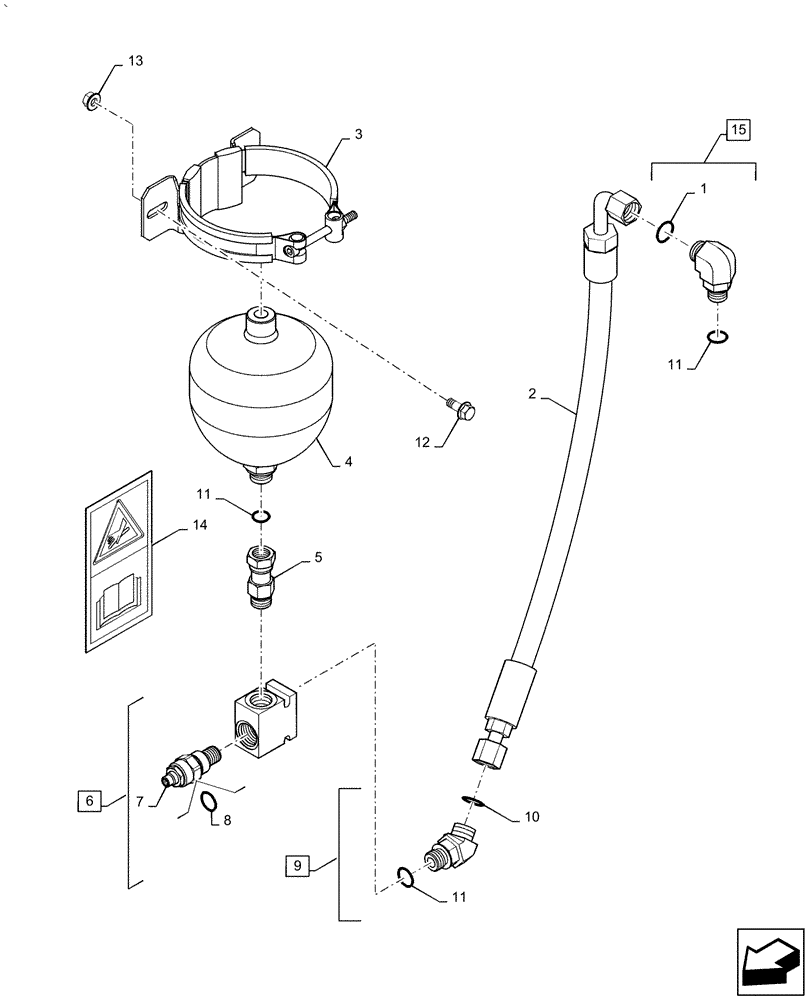

Схема запчастей Case IH AF4077 - (35.357.AA) - ACCUMULATOR, MOUNTING AND SYSTEM (35) - HYDRAULIC SYSTEMS
1
11
8
11
2
3
5
11
14
9
7
15
4
10
12
13
6

Артикул

Название

Примечание

Количество

1

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

2

47611405

Assy, Accumulator

HOSE

1шт.

3

84133868

CLAMP

Assy, Accumulator Mounting

1шт.

4

87105673

ACCUMULATOR

1шт.

5

86974819

FITTING,3/4"-16 x 13/16"-16 ORFS

Connector

1шт.

6

47618626

Hydraulic Lift, Needle, Incl 7, 8

VALVE

1шт.

7

47442293

Needle, Cartridge, Incl 8

VALVE

1шт.

8

329484A1

SEAL KIT

1шт.

9

86512032

ELBOW

Incl 10, 11

1шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

12

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

2шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

14

344946A1

WARNING DECAL

1шт.

15

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 1, 11

1шт.

Выбрано товаров: 15
