Запчасти Case IH 9240 (74.140.CP[01]) - VAR - 425198, 425199, 425513 - TAILINGS DELIVERY (74) - CLEANING

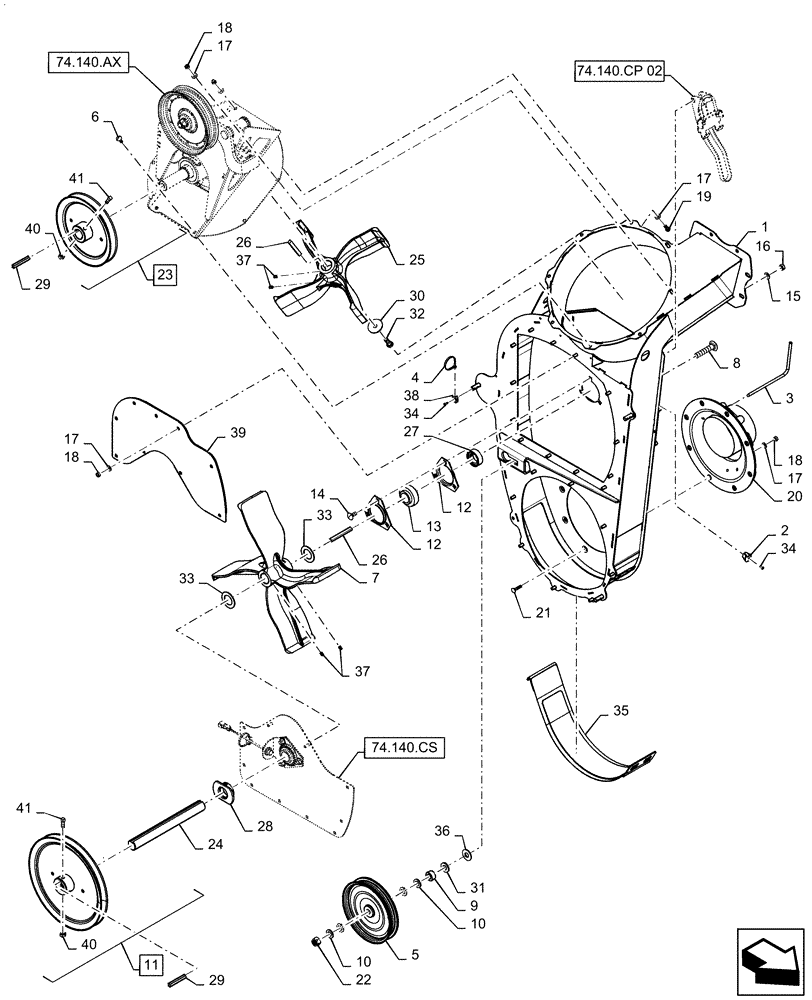

Схема запчастей Case IH 9240 - (74.140.CP[01]) - VAR - 425198, 425199, 425513 - TAILINGS DELIVERY (74) - CLEANING
36
74.140.cp 02
38
35
33
18
30
26
4
40
19
31
17
12
5
40
74.140.ax
17
29
11
74.140.cs
39
26
6
41
32
17
16
18
23
18
28
21
33
13
14
34
3
37
10
25
20
15
24
34
41
29
27
17
12
9
1
10
37
7
22
8
2

Артикул

Название

Примечание

Количество

1

87728892

HOUSING

Standard, - VAR - 425198

1шт.

1

87728895

HOUSING

Extended Wear, - VAR - 425199, 425513

1шт.

2

323307

CLAMP

Spring, 20mm OD x 25mm OAL

1шт.

3

9819720

PIN,7.94mm OD

Locking, 135mm W x 191mm OAL

1шт.

4

86566989

CABLE TIE,208mm L

1шт.

5

86976165

IDLER,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

Idler, 16.17mm ID x 222.26mm OD

1шт.

6

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

7

87541978

BLOWER

4 Blade Impellar

1шт.

8

120048

CARRIAGE BOLT,M16 x 80mm, Cl 8.8

1шт.

9

87108015

SPACER

16.5mm ID x 30mm OD x 15.86mm OAL

1шт.

10

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

11

87283318

PULLEY,344.7mm OD

Upper Impellar, Incl 40 - 41

1шт.

12

84414985

FLANGED BEARING

9.5mm Thk

2шт.

13

212607

BALL BEARING,35mm ID x 72mm OD x 51.1mm Thk

1шт.

14

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

16

100016

NUT,M10 x 1.5, Cl 8

3шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

35шт.

18

9706690

NUT,M8 x 1.25, Cl 8

31шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

20

86997060

COVER

Tailings

1шт.

21

62196

BOLT

M8 x 16mm OD x 35mm

8шт.

22

86000441

NUT,M16 x 2.0, Cl 8

1шт.

23

87283292

PULLEY,251.6mm OD

Drive, Upper Impellar, 255.8mm OD, Incl 40 - 41

1шт.

24

84405034

SHAFT

30mm OD x 325mm OAL

1шт.

25

87542137

BLOWER

Tailings Fan, 4 Blade Impellar

1шт.

26

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

2шт.

27

86997053

COLLAR

Bearing

1шт.

28

87107362

PICK-UP

Speed

1шт.

29

86996914

KEY

8mm W x 74.2mm OAL x 10mm Thk

2шт.

30

87026355

WASHER,12.8mm ID x 50mm OD x 3mm Thk

1шт.

31

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

1шт.

32

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

1шт.

33

87109160

SHIM,35.5mm ID x 58mm OD x 2.18mm Thk

1шт.

34

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

35

87728882

DOOR

Cleanout

1шт.

36

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

1шт.

37

84814918

SET SCREW,M8 x 12mm, Cl 8.8

4шт.

38

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

39

87684737

COVER ASSY

Front Tailings

1шт.

40

100016

NUT,M10 x 1.5, Cl 8

6шт.

41

393599

SET SCREW,M10 x 25mm, Cl 12.9

6шт.

Выбрано товаров: 42
