Запчасти Case IH 9240 (50.100.AP [03]) - CAB, EVAPORATOR, HEATER COIL, FAN (50) - CAB CLIMATE CONTROL

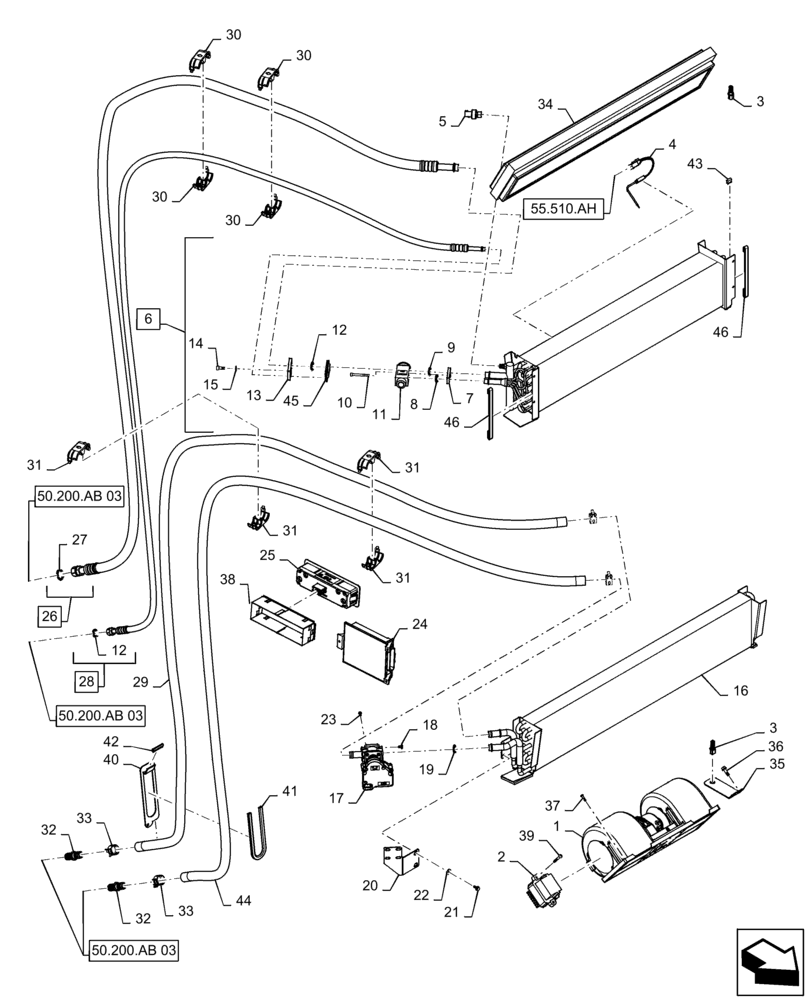

Схема запчастей Case IH 9240 - (50.100.AP [03]) - CAB, EVAPORATOR, HEATER COIL, FAN (50) - CAB CLIMATE CONTROL
23
1
16
12
5
46
43
30
29
30
40
20
46
11
24
18
21
44
19
32
17
25
6
36
31
26
32
28
10
37
13
39
27
55.510.ah
35
22
31
3
2
33
50.200.ab 03
8
31
38
42
30
45
31
33
4
9
3
14
34
41
30
50.200.ab 03
12
7
50.200.ab 03
15

Артикул

Название

Примечание

Количество

1

84580265

BLOWER

Motor

1шт.

2

84342778

DRIVER

Motor Resistor

1шт.

3

87454442

SENSOR

Thermistor

3шт.

4

87754238

SENSOR

Evaporator Temperature

1шт.

5

47996489

Low Pressure

SWITCH, A/C LOW PRES

1шт.

6

84542602

EVAPORATOR

Incl 7 - 15, 45 - 46

1шт.

7

84144154

MOUNTING PLATE

Expansion Valve Retainer, 26mm L x 47.5mm W x 6mm Thk

1шт.

8

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

9

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

10

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

2шт.

11

82023542

VALVE, THERMAL EXPAN

1шт.

12

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

13

NSS

NOT SOLD SEPARAT

Expansion Valve Plate, Incl in 6

1шт.

14

NSS

NOT SOLD SEPARAT

Expansion Valve Bolt, Incl in 6

1шт.

15

NSS

NOT SOLD SEPARAT

Washer, Incl in 6

1шт.

16

47613266

COIL

Heater Core

1шт.

17

84542607

HEATER VALVE

Water Shut - Off

1шт.

18

87355939

SCREW,#8 - 16 x 0.28"

4шт.

19

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

20

84542606

BRACKET

Heater Core Support

1шт.

21

86507068

BOLT,M5 x 0.8 x 17.4mm

2шт.

22

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

2шт.

23

47364405

SCREW,Torx, M8 x 12.699mm, SST

4шт.

24

84268957

MODULE

ATC Controller

1шт.

24

84268957R

REMAN ELECT CONTROL

ATC Controller

1шт.

24

84268957C

CORE-ELECTRONIC CONT

Return Number

1шт.

25

84316356

CONTROL UNIT

A/C/Fan Speed

1шт.

26

47405767

A/C HOSE,15.88mm ID x 2600mm L

Incl 27

1шт.

27

87533612

O-RING,1.93mm Thk x 15.67mm ID, Cl 5, 75 Duro

1шт.

28

47405809

A/C HOSE

Incl 12

1шт.

29

84607280

HEATER HOSE,15.9mm ID x 23.9mm OD x 2.71M

Return

1шт.

30

47621955

CLAMP,25.4mm ID x 78.94mm OAL x 27.94mm Thk

4шт.

31

47621906

CLAMP,25.4mm ID x 78.94mm OAL x 27.94mm Thk

4шт.

32

44995013

FITTING

5/8"

2шт.

33

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

4шт.

34

360260A2

CAB FILTER,A/C, 740mm L x 140.4mm W x 50mm Thk, Pleatloc

Cab Air Recirculation

1шт.

35

84350681

BRACKET

Blower Mounting

1шт.

36

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

37

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

9шт.

38

87281122

SLEEVE

HVAC Control Unit Insert, 181.8mm L

1шт.

39

86625169

SCREW,Pan, 1-1/2" OAL

2шт.

40

84419756

BRACKET

Hose Routing

1шт.

41

84478836

TRIM,298mm L

Bracket Edging

1шт.

42

84544528

TRIM

Top Bracket Edging, 35mm L

1шт.

43

47395715

CLIP

U - Type Panel Fastener

2шт.

44

84607279

HEATER HOSE,15.9mm ID x 150mm L, SAE 20R3

Supply

1шт.

45

NSS

NOT SOLD SEPARAT

Expansion Valve Seal, Incl in 6

1шт.

46

NSS

NOT SOLD SEPARAT

Evaporator Coil, Incl in 6

2шт.

Выбрано товаров: 48
