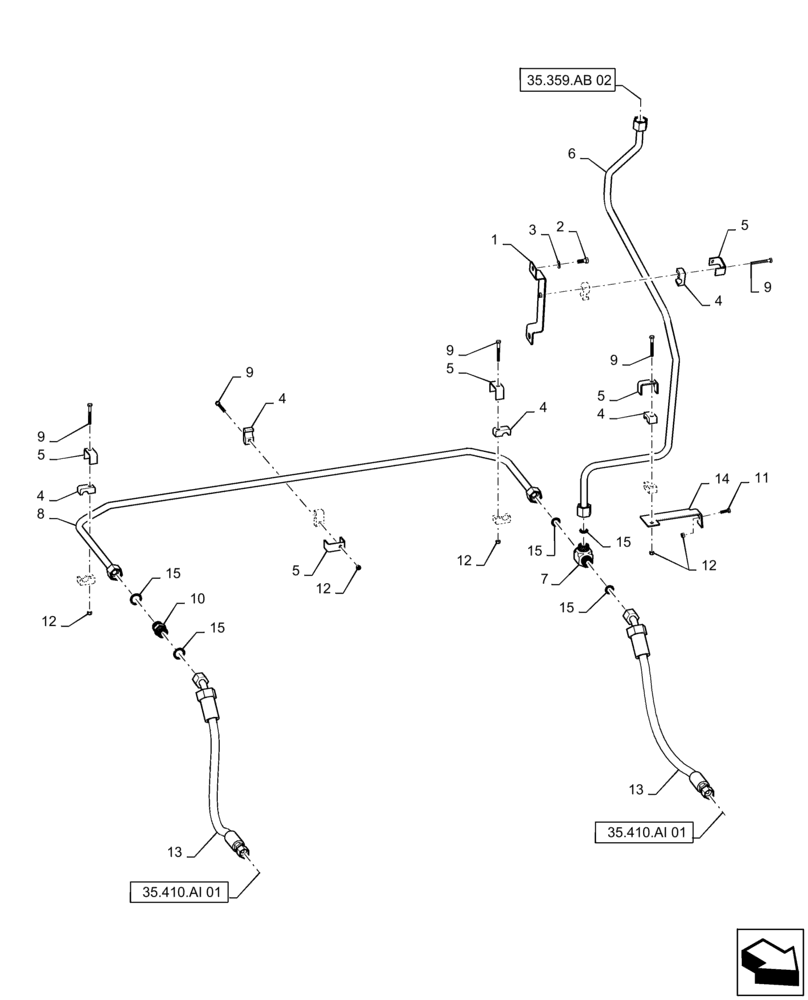

Запчасти Case IH 9240 (35.536.AB) - HYDRAULICS FEEDER LIFT (35) - HYDRAULIC SYSTEMS

1

87281787

SUPPORT TUBE

Feeder Lift

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

4

433007

CLAMP

Hydraulic Hose, 10mm ID x 39mm L x 20mm Thk

10шт.

5

433100

SUPPORT

Bracket

5шт.

6

87000417

HYD TUBE,0.625" OD

Feeder Lift, Mid

1шт.

7

84989665

TEE,1"-14 ORFS

1шт.

8

87000419

HYD TUBE,0.625" OD

Feeder Lift, Lower

1шт.

9

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

5шт.

10

84431473

HYD CONNECTOR,1"-14 ORFS

1шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

12

353308

NUT,M6 x 1.0, Cl 8

5шт.

13

87105740

FLEXIBLE HOSE,12.5mm ID x 625mm L

Feeder Lift Cylinder

2шт.

14

87108132

SUPPORT

Bracket, Feeder Lift/Case Drain Tubes

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.
