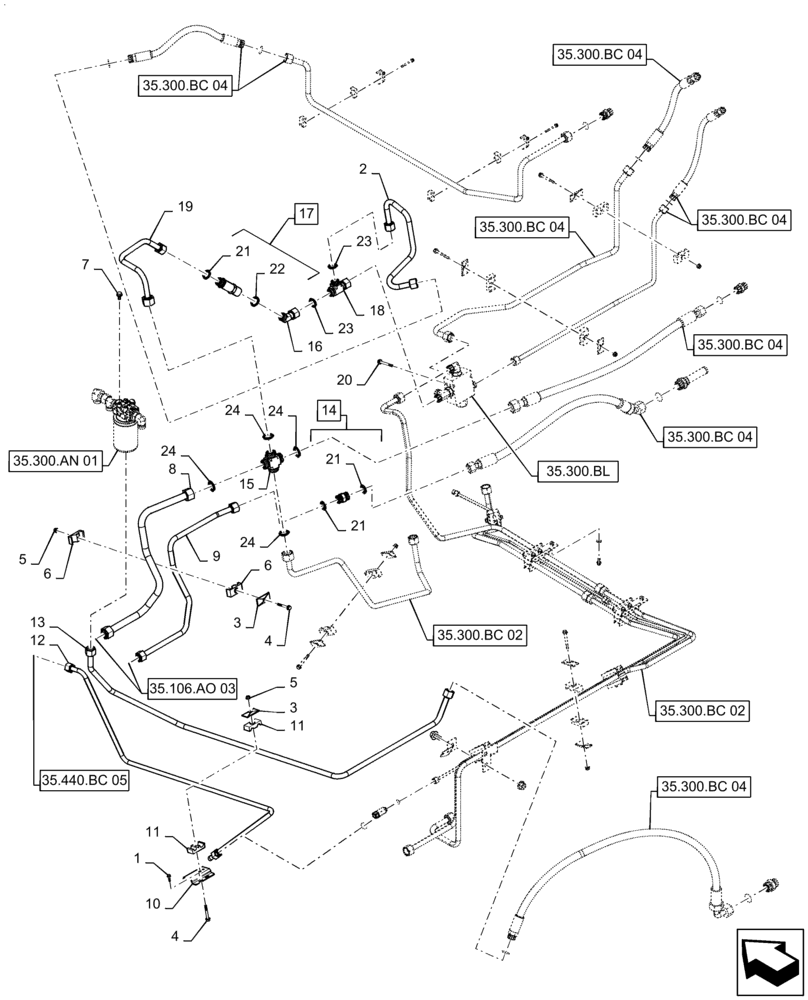

Запчасти Case IH 9240 (35.300.BC [03]) - HYDRAULIC SYSTEM, ENGINE 16L (35) - HYDRAULIC SYSTEMS

1

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

4шт.

2

47634725

TUBE

Hydraulic, Aux Cooler Supply 1, 16mm ID x 20mm OD x 236mm L

1шт.

3

87000230

PLATE

Hose Clamp, 9mm ID x 65mm L x 30mm Thk

3шт.

4

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

2шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

6

87000146

CLAMP

Hydraulic Tube, 25.4mm ID x 19.05mm ID x 67mm L x 30mm Thk

1шт.

7

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

8

47380555

TUBE

Aux Cooler Return, 21mm ID x 25mm OD x 496mm L

1шт.

9

47380557

TUBE

Main Cooler Return, 16mm ID x 20mm OD x 653mm L

1шт.

10

87109755

BRACKET

Tube Clamp, 103mm L x 89.9mm Thk

2шт.

11

87000144

CLAMP

Hydraulic Tube, 19.05mm ID x 15.87mm ID x 67mm L x 30mm Thk

2шт.

12

87397349

HYD TUBE,16mm OD x 1064.4mm OAL

1шт.

13

47633815

TUBE

Hydraulic, Main Cooler Inlet, 16mm ID x 20mm OD x 1215mm L

1шт.

14

84100407

UNION,1-3/16"-12 ORFS

Incl 21

1шт.

15

47394380

UNION CROSS

ORFS

1шт.

16

84214051

45 ELBOW,1-3/16"-12 ORFS x 14mm

ORFS, 20mm or 3/4"

1шт.

17

87563490

CHECK VALVE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

110 P.S.I., Incl 21 - 22

1шт.

18

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

ORFS, Swivel, 20mm or 3/4"

1шт.

19

47380564

TUBE

Hydraulic, Aux Cooler Bypass, 16mm ID x 20mm OD x 230mm L

1шт.

20

87656138

BOLT,M8 x 78.1mm, Cl 10.9

2шт.

21

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

22

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

23

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

24

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.
