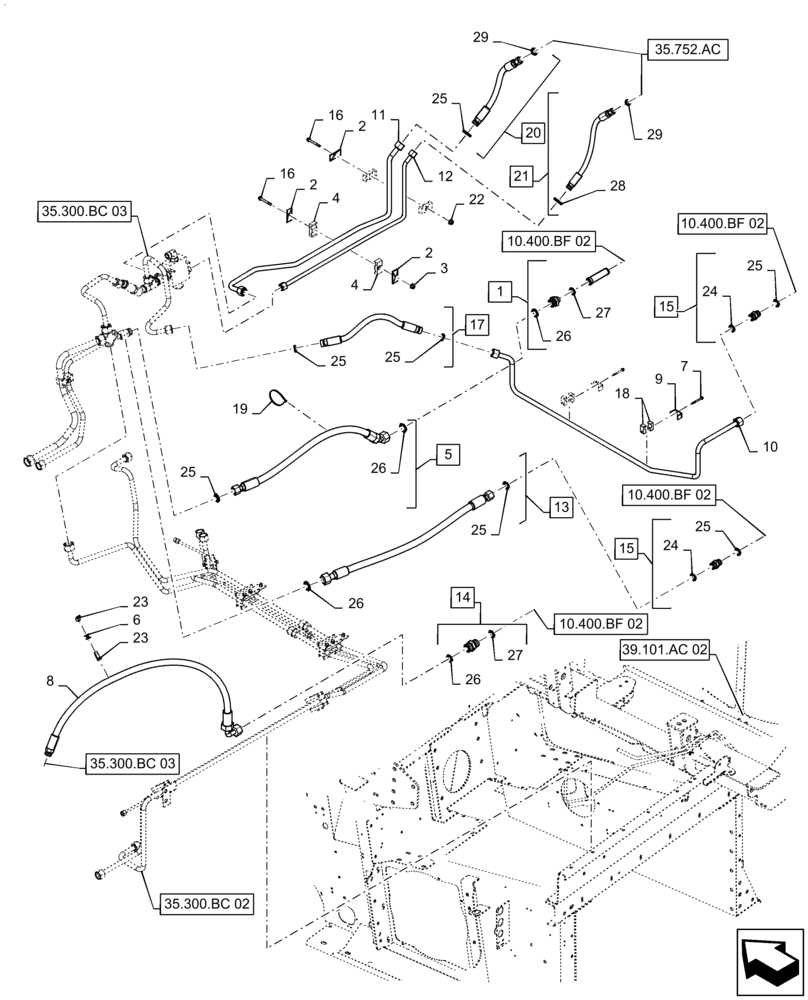

Запчасти Case IH 9240 (35.300.BC[04]) - HYDRAULIC SYSTEM, ENGINE16L (35) - HYDRAULIC SYSTEMS

1

87360480

OIL COOLER FILTER

Incl 26 - 27

1шт.

2

87000230

PLATE

Hose Clamp, 9mm ID x 65mm L x 30mm Thk

4шт.

3

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

4

87000144

CLAMP

19.05mm ID x 15.88mm ID x 67mm L x 30mm Thk

2шт.

5

47513485

HYDRAULIC HOSE

Main Cooler Return, 19mm ID x 900mm L, Incl 25 - 26

1шт.

6

84318895

SPACER,17.97mm H

Swivel Tie Base, 20.32mm W

1шт.

7

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

8

47633817

TUBE

Main Cooler Supply, 19mm ID x 1340mm L

1шт.

9

433100

SUPPORT

U Shape, One Hole

2шт.

10

47513961

TUBE

Aux Supply Cooler 2, 16mm ID x 20mm OD x 1220mm L

1шт.

11

47628785

TUBE

Motor Return 1, 16mm ID x 20mm OD x 862mm L

1шт.

12

47692289

TUBE

Motor Supply 1, 12mm ID x 16mm OD x 714mm L

1шт.

13

47513534

HYDRAULIC HOSE

Aux Cooler Return, 19mm ID x 980mm L, Incl 25 - 26

1шт.

14

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 26 - 27

1шт.

15

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 24 - 25

2шт.

16

87656138

BOLT,M8 x 78.1mm, Cl 10.9

2шт.

17

47634759

HOSE

Aux Cooler Supply, 16mm ID x 530mm L, Incl 25

1шт.

18

433007

CLAMP

Tube, 39mm L x 20mm Thk

1шт.

19

86566990

CABLE TIE,292mm OAL x 4.8mm W

4шт.

20

47515741

HOSE

Motor Return 2, 16mm ID x 470mm L, Incl 25, 29

1шт.

21

47692303

HYDRAULIC HOSE

Motor Supply 1, 12.5mm ID x 540mm L, Incl 28 - 29

1шт.

22

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

23

84266050

CABLE TIE,384mm L, Polyamide

2шт.

24

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

25

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

26

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

27

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

28

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
