Запчасти Case IH 9240 (35.106.AO [05]) - HYDRAULIC SYSTEM, PTO,1 (35) - HYDRAULIC SYSTEMS

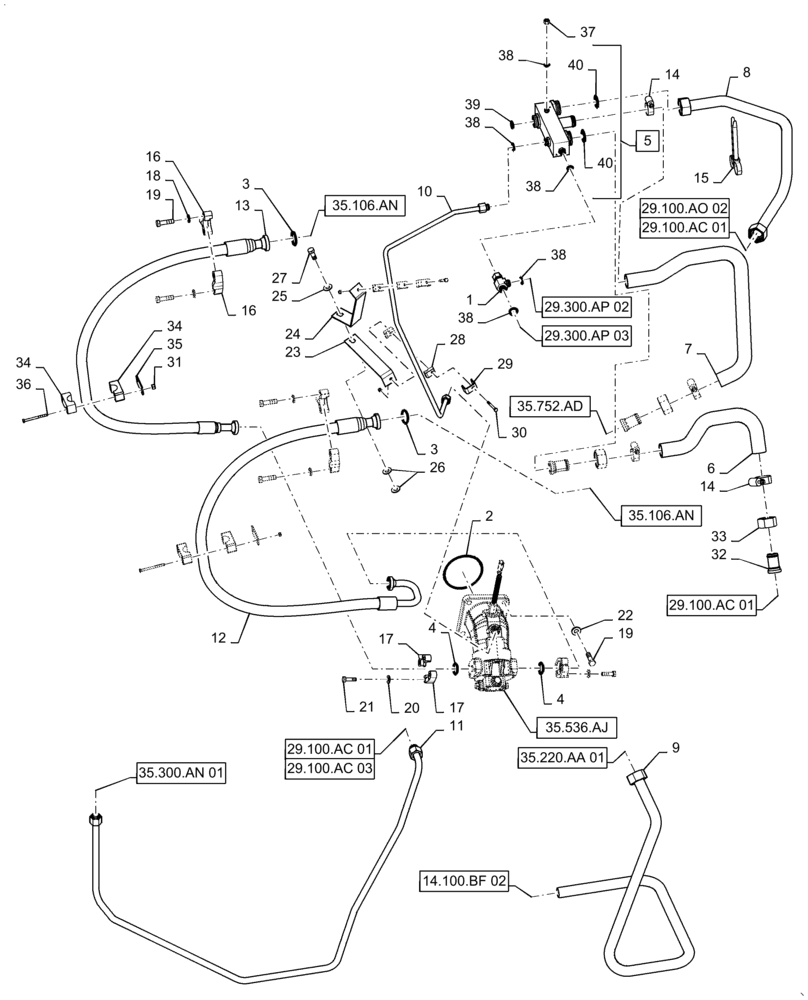

Схема запчастей Case IH 9240 - (35.106.AO [05]) - HYDRAULIC SYSTEM, PTO,1 (35) - HYDRAULIC SYSTEMS
17
19
18
35.220.aa 01
20
35.300.an 01
7
12
35.536.aj
40
15
22
14
32
38
34
8
5
29.100.ac 01
35.752.ad
14.100.bf 02
3
2
35
6
28
33
29.100.ac 01
29.100.ac 03
4
35.106.an
21
17
37
25
9
19
38
23
35.106.an
29.100.ac 01
38
30
29.300.ap 03
29.100.ao 02
13
26
39
27
29.300.ap 02
1
16
11
3
10
36
29
24
34
14
40
38
16
38
31
4

Артикул

Название

Примечание

Количество

1

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

2

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

3

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

4

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

5

84317035

HYDRAULIC MANIFOLD

Returns, Incl 38 - 40

1шт.

6

47487298

HOSE

Hydraulic, Ground Drive Pump Drain

1шт.

7

47366241

HOSE

Hydraulic, Charge Pump Supply

1шт.

8

47366237

TUBE

Hydraulic, Lube Pump Supply

1шт.

9

84549899

HYD TUBE

PTO Oil Pan Suction to Rotor Motor

1шт.

10

84317298

HYD TUBE

Rotor Motor Drain

1шт.

11

47392844

HYD TUBE

Lube to Filter

1шт.

12

84370076

HYDRAULIC HOSE,19.05mm ID x 1600mm L, SAE 100R15

Rotor Drive A

1шт.

13

84370077

HYDRAULIC HOSE,19.05mm ID x 1500mm L, SAE 100R15

Rotor Drive B

1шт.

14

86634187

HOSE CLAMP,50.8mm ID - 26.9mm ID, Lined

4шт.

15

84386243

CLAMP,489mm L

1шт.

16

86980732

CLAMP

Split Flange, 13.5mm ID x 81.8mm OD

4шт.

17

86980731

CLAMP

Split Flange, 19mm ID

4шт.

18

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

19

87022684

BOLT,Hex, M12 x 45mm, Cl 10.9

12шт.

20

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.

21

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

8шт.

22

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

23

87324916

BRACKET

Lower, Rotor Drain

1шт.

24

87324918

BRACKET

Upper, Rotor Drain

1шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

26

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

27

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

28

433008

CLAMP

Hydraulic Tube

4шт.

29

442340

SUPPORT

Clamp, Bracket

2шт.

30

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

31

353308

NUT,M6 x 1.0, Cl 8

6шт.

32

84322357

SLEEVE

Hydraulic Connector, 1.25" OD x 1.68" L

3шт.

33

86639098

TUBE NUT,1-11/16'-12 x 27.5mm Thk

ORFS, 30mm or 1-1/4"

3шт.

34

84190470

CLAMP

Hydraulic Tube, 33.7mm

2шт.

35

2978702

PLATE

Clamp Support

2шт.

36

11030421

BOLT,Hex, M6 x 75mm, Cl 8.8

4шт.

37

9840575

CAP,13/16" - 16 ORFS

1шт.

38

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

39

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

40

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

Выбрано товаров: 40
