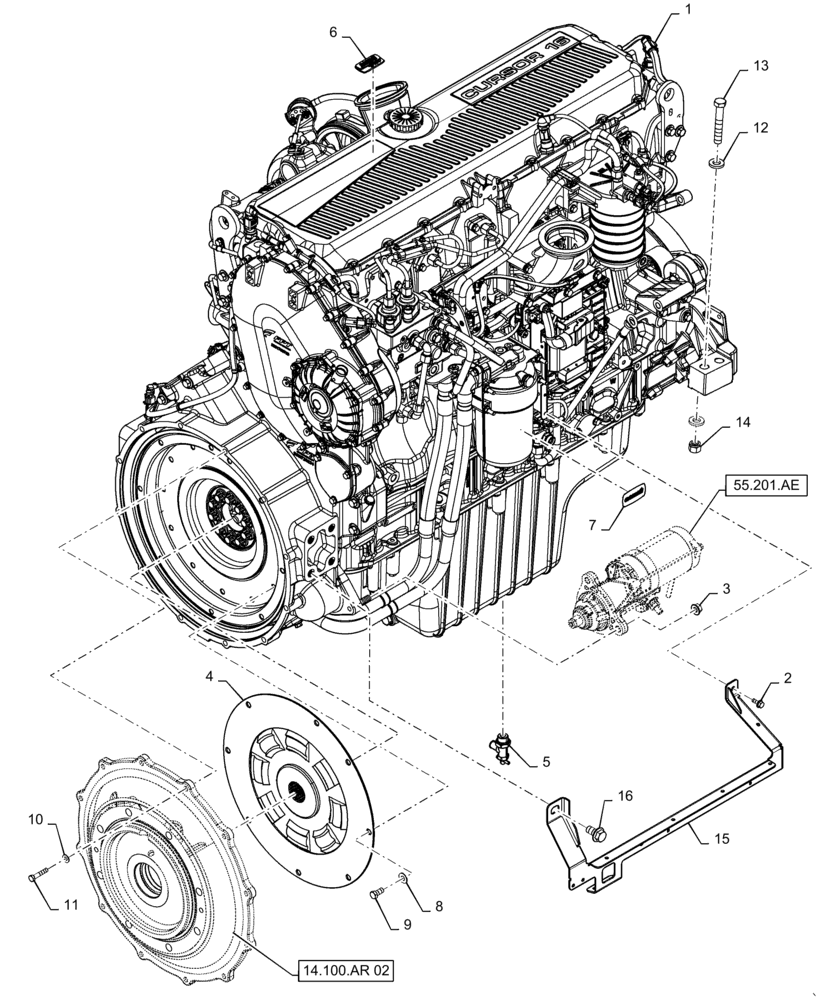

Запчасти Case IH 9240 (18.112.AC[03]) - DAMPER, FLYWHEEL, PTO ASSY, ENGINE (18) - CLUTCH

1

47702763

ENGINE

T2, 9240

1шт.

1

47702760

ENGINE

T4, EU & NA, 9240

1шт.

2

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

3

86512497

FLANGE NUT,M12 x 1.75, Cl 10

3шт.

4

47368299

COUPLING

Damper, 18.373" OD, 22T

1шт.

5

87105048

DRAINCOCK/TAP SUPPLY

Oil Drain

1шт.

6

84373430

EMBLEM

Engine, Case - IH

1шт.

7

87679098

DECAL,37mm x 70mm

Case - IH, Filter

1шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

9

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

11

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

12шт.

12

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

8шт.

13

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

4шт.

14

412066

NUT,M16 x 2.0, Cl 8

4шт.

15

47503696

SUPPORT

Bracket, Harness

1шт.

16

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

1шт.
