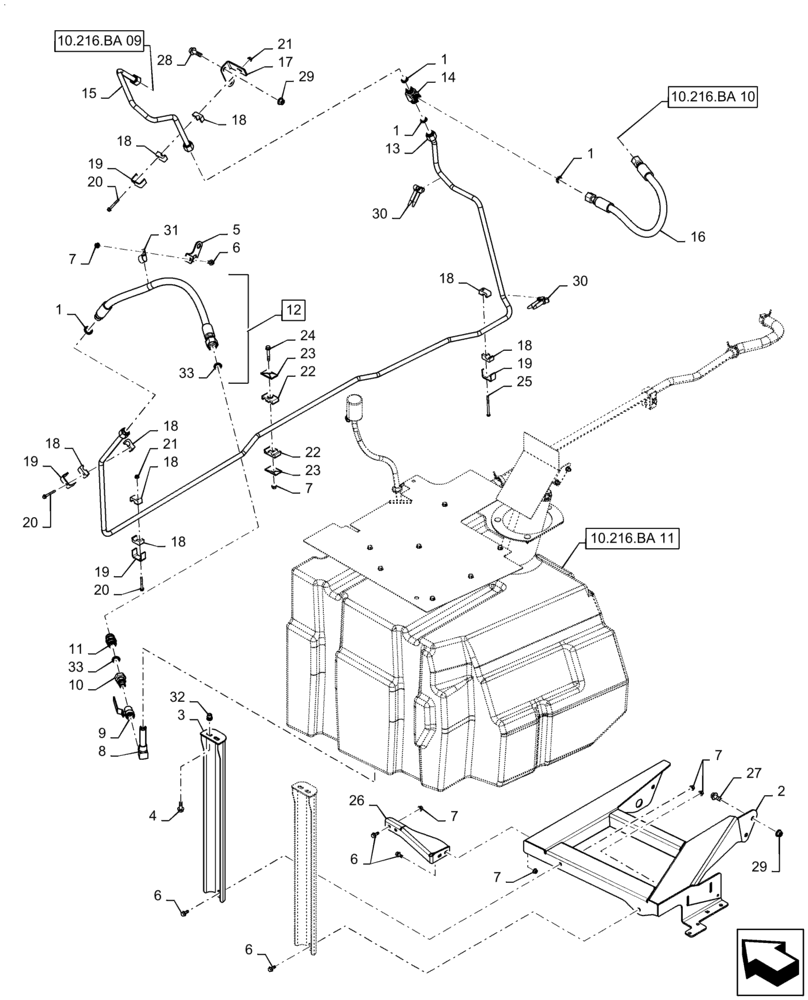

Запчасти Case IH 9240 (10.216.BA [12]) - FUEL LINE (10) - ENGINE

1

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

2

47594747

SUPPORT

LH, Bracket, Fuel Tank

1шт.

3

47595569

BRACKET

Support, Fuel Tank

2шт.

4

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

5

47702810

BRACKET

Mounting, Fuel Line

1шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

7шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

8

47393252

FILTER STRAINER

Fuel Suction, 30 Mesh

1шт.

9

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

1шт.

10

47559912

FITTING,3/4"-12 x 1/2" NPT

Adapter

1шт.

11

47518136

CHECK VALVE

Fuel Supply

1шт.

12

47702827

HOSE

Fuel, LH Tank, 900mm L, Incl 1, 33

1шт.

13

47702819

TUBE

Fuel, LH Tank to Tee, 14.8mm ID x 16mm OD

1шт.

14

87530405

TEE,1" - 14, ORFS

1шт.

15

47645370

TUBE

Fuel, Tee to Filter, 14.8mm ID x 16mm OD

1шт.

16

47519569

HOSE

Fuel, RH Tank, 620mm L

1шт.

17

47702722

BRACKET

Mounting, Fuel Line

1шт.

18

433007

CLAMP

Hydraulic Tube, 39mm L x 20mm W x 15.5mm H

8шт.

19

433100

SUPPORT

Hydraulic Hose Clamp

4шт.

20

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

3шт.

21

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

22

87451102

CLAMP

Hydraulic Tube, 53mm L x 30mm W x 26mm H

1шт.

23

384870A1

PLATE

Hose Clamp Cover

2шт.

24

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

1шт.

25

86508570

BOLT,Hex, M6 x 80mm OAL, Cl 8.8

1шт.

26

47665989

BRACKET

Support

1шт.

27

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

4шт.

28

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

29

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

30

84484346

STRAP,328mm L

Dual Tie

2шт.

31

700514

CLAMP,3.8mm, Coat, M8 Bolt

Fuel Line

1шт.

32

86976968

INSERT,Rivnut, M10 x 1.5 x 19mm OD

4шт.

33

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
