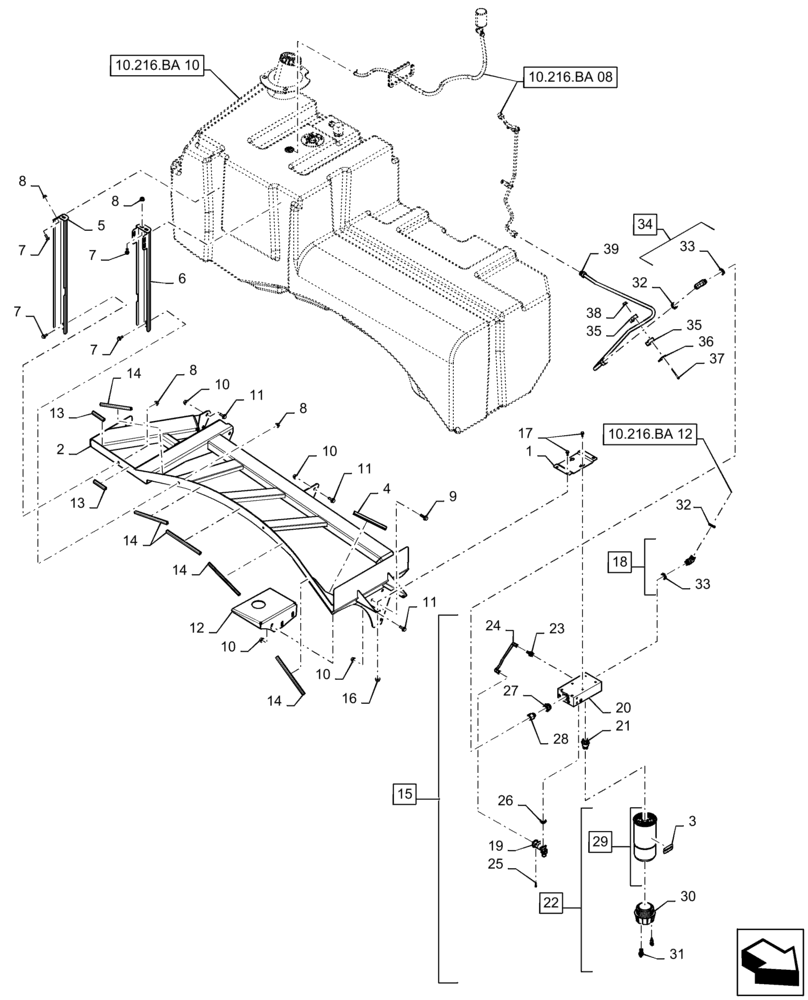

Запчасти Case IH 9240 (10.216.BA [09]) - FUEL LINE, FUEL FILTER (10) - ENGINE

1

47742616

SUPPORT

Bracket, Fuel Manifold

1шт.

2

47639599

SUPPORT

Bottom, Fuel Tank, 1130L

1шт.

3

87679098

DECAL,37mm x 70mm

Case - IH Filter

1шт.

4

448606A1

SEAL ASSY.,12.7mm W x 203.2mm OAL x 17mm Thk

Fuel Tank Support

1шт.

5

84156717

SUPPORT

Fuel Tank Rear

1шт.

6

84162005

SUPPORT

Fuel Tank Middle

1шт.

7

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

8

86050279

FLANGE NUT,M10 x 1.5, Cl 10

6шт.

9

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

1шт.

10

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

11

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

9шт.

12

47600161

BRACKET

Sump

1шт.

13

228634A1

PROTECTION STRIP

Fuel Tank Support, 68.9mm L

3шт.

14

121574A1

SEAL PROTECTION

Fuel Tank Support, 388mm L

5шт.

15

47552002

FUEL PUMP

Assy, Incl 3, 19 - 31

1шт.

16

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

17

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

18

86639053

ELBOW,45 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 33

1шт.

19

47635952

FUEL PUMP

1шт.

20

47638747

MANIFOLD

Fuel Pump

1шт.

21

47545596

ADAPTER,1-1/4"-12 RH x 1-1/4"-12 LH

Fuel Filter

1шт.

22

47635958

FUEL FILTER

Assy, Incl 3, 29 - 31

1шт.

23

47638916

COUPLING,M16 x 1.5 ORB x 3/8" Quick Connect

Hydraulic Connector

1шт.

24

47638905

HOSE

Fuel Pump to Manifold

1шт.

25

86512134

HEX SOC SCREW,M6 x 16mm, Cl 12.9

4шт.

26

47643473

O-RING,12.37mm ID x 17.6mm OD x 2.62mm Thk

Fuel Pump to Manifold

1шт.

27

47741810

REDUCER,M22 x 1.5mm ID x 7/8"-4 OD

1шт.

28

47741815

REDUCER,7/8"-14 ID x 1-5/16"-2 OD

1шт.

29

84423586

FUEL FILTER

Element, 30 Micron, Incl 3

1шт.

30

84409714

FILTER BOWL

Water Collection

1шт.

31

84409712

SENSOR

Water/Fuel

1шт.

32

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

33

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

34

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 33

1шт.

35

117395A1

COLLAR CLAMP,M15.87mm ID, 50mm x 35mm x 30mm

Fuel Tube

1шт.

36

86900727

COVER

Plate, Fuel Tube Clamp

1шт.

37

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

38

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

39

47698014

TUBE

Fuel, Pump to Tube

1шт.
