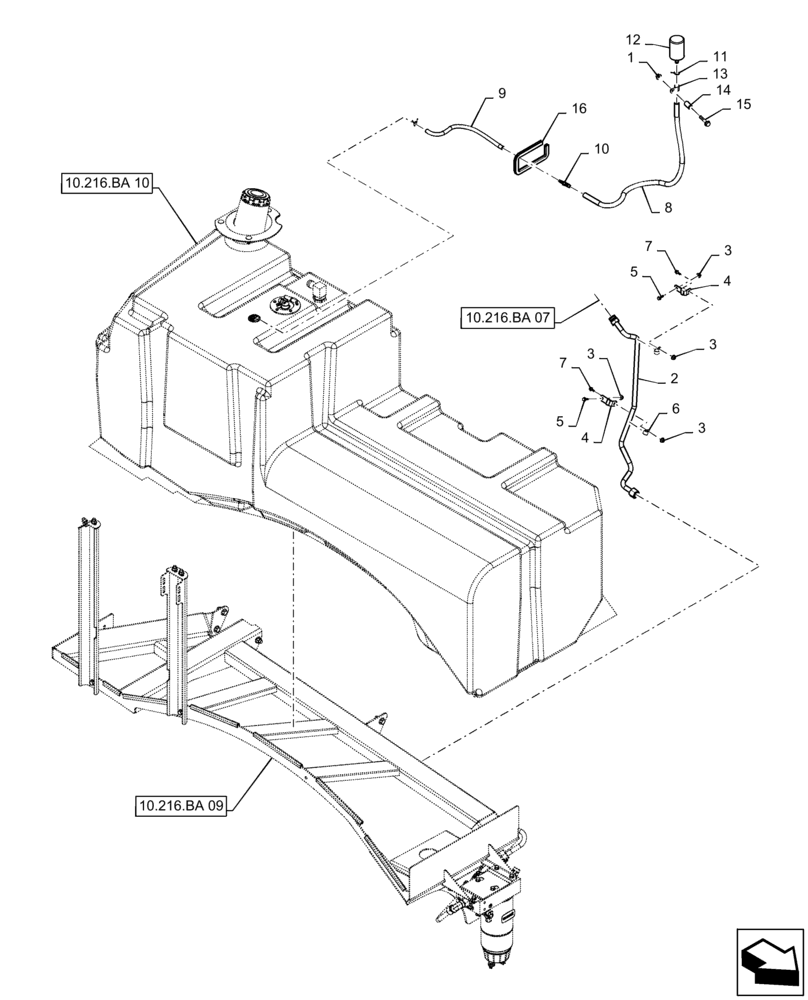

Запчасти Case IH 9240 (10.216.BA [08]) - FUEL LINE (10) - ENGINE

1

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

2

47700134

TUBE

Fuel, 14.8mm ID x 16mm OD

1шт.

3

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

4

47400742

SUPPORT

Bracket, Fuel Line

2шт.

5

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

6

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

7

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

8

47530820

HOSE

Fuel, Breather, 842mm L

1шт.

9

47531066

HOSE

Fuel, Breather, 359mm L

1шт.

10

47484902

UNION,3/8" - 1/4", Plastic Barb

1шт.

11

86637702

HOSE CLAMP,15.49mm - 16.26mm

1шт.

12

47437399

FUEL FILTER

Fuel Tank Vent, 10 Micron

1шт.

13

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

14

84132594

SPACER,10.7mm ID x 17.1mm OD x 30mm OAL

1шт.

15

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

1шт.

16

1977624C1

SEAL,0.19mm Grip, 373.38mm OAL

Trim

1шт.
