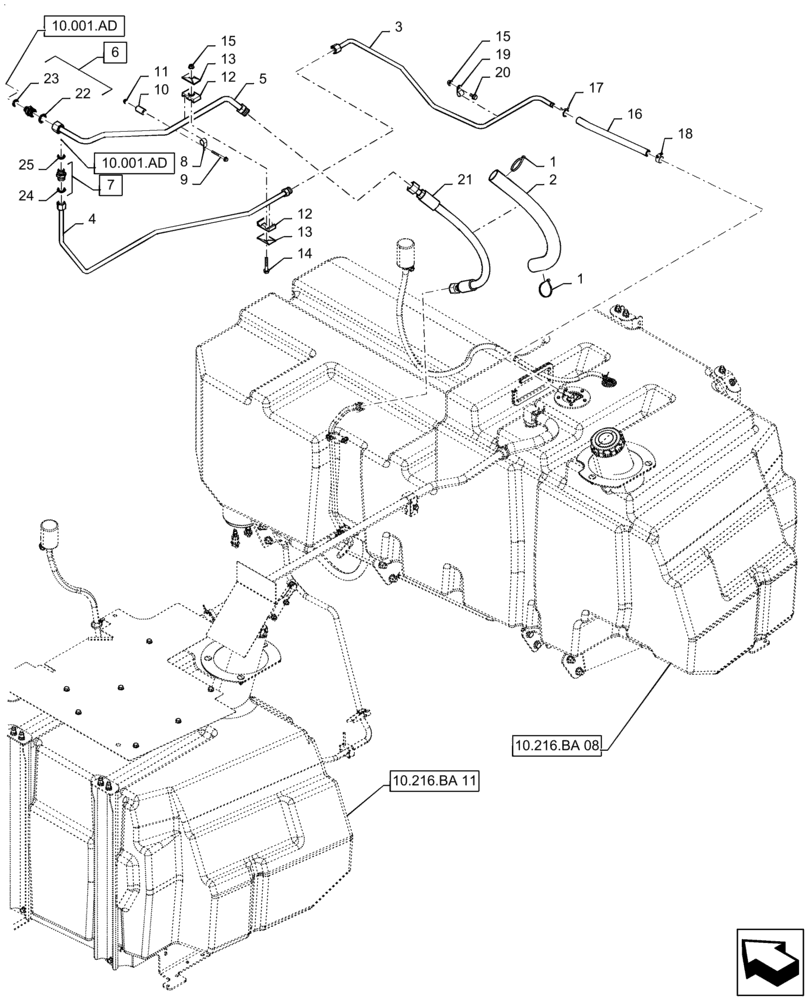

Запчасти Case IH 9240 (10.216.BA [07]) - FUEL LINE (10) - ENGINE

1

86566989

CABLE TIE,208mm L

2шт.

2

47702592

SLEEVE

Thermal, Fuel Hose, RH Tank

1шт.

3

47702021

TUBE

Fuel, 10.8mm ID x 12mm OD x 502mm L

1шт.

4

47699541

TUBE

Fuel, Return Line, 10.8mm ID x 12mm OD x 996mm L

1шт.

5

47700218

TUBE

Fuel, 14.8mm ID x 16mm OD x 607mm L

1шт.

6

47688467

HYD CONNECTOR,M16 x 1.5 x 1"-14

Incl 22 - 23

1шт.

7

47402073

UNION,M18 x 1.5 x 13/16"-18

Incl 24

1шт.

8

87532034

CLAMP,15.9mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

9

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

1шт.

10

84132594

SPACER,10.7mm ID x 17.1mm OD x 30mm OAL

1шт.

11

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

12

87451102

CLAMP

Hydraulic Tube, 30mm W x 53mm L

1шт.

13

384870A1

PLATE

Hydraulic Hose Clamp Cover

2шт.

14

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

1шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

16

47539358

HOSE

Fuel Return, 302mm L

1шт.

17

86624006

HOSE CLAMP,20.12mm - 21.13mm

1шт.

18

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

1шт.

19

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

20

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

21

47702022

HOSE

RH, Fuel, Tank, 595mm L

1шт.

22

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

82019812

SEAL,13.8mm ID x 8.9mm OD x 1.5mm Thk

1шт.

24

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
