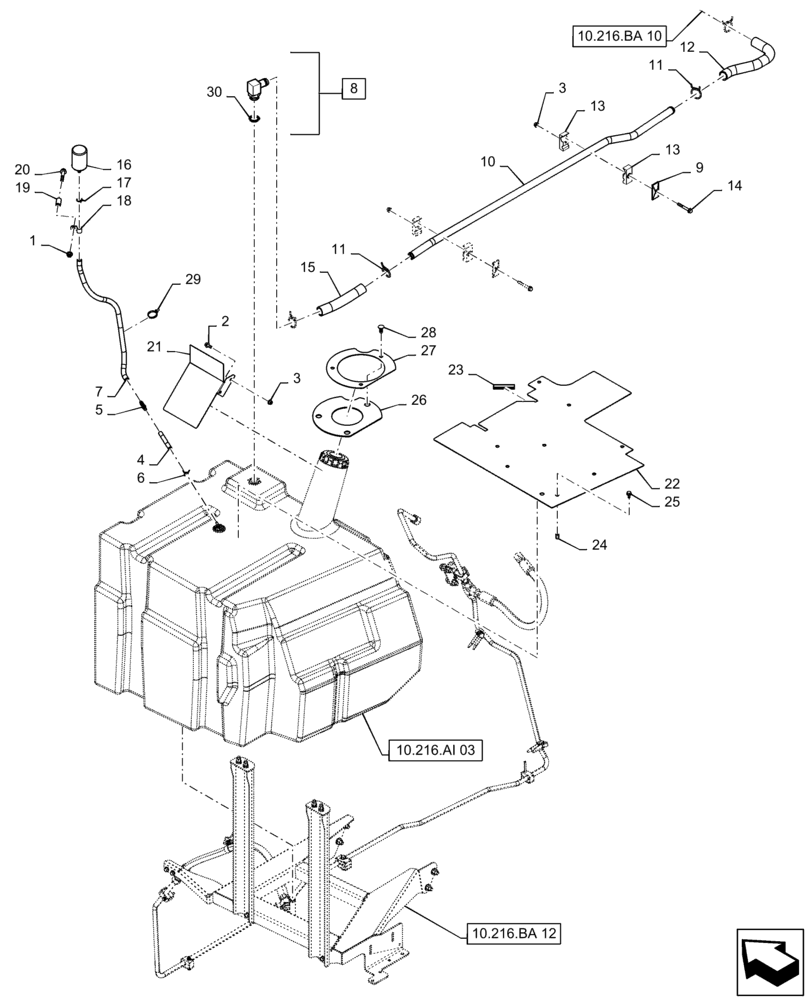

Запчасти Case IH 9240 (10.216.BA[11]) - FUEL TANK, FUEL LINE (10) - ENGINE

1

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

2

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

3

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

4

47530825

HOSE

Fuel, Breather, 105mm L

1шт.

5

47484902

UNION,3/8" - 1/4", Plastic Barb

1шт.

6

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

7

47530808

HOSE

Fuel, Breather, 673mm L

1шт.

8

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

Incl 30

1шт.

9

87000230

PLATE

Hose Clamp Support

2шт.

10

47529607

TUBE

Fuel Vent, 23.5mm ID x 25mm OD

1шт.

11

47704310

HOSE CLAMP,1.344" ID - 1.406" ID, Spring Type, SAE #22

Vent Line

4шт.

12

47529611

HOSE

RH Tank, Fuel Vent, Top Side

1шт.

13

87000141

CLAMP

Hydraulic Tube

2шт.

14

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

2шт.

15

47702043

HOSE

Fuel Vent, 203mm L

1шт.

16

47437399

FUEL FILTER

Tank Vent, Breather, 10 Micron

1шт.

17

86637702

HOSE CLAMP,15.49mm - 16.26mm

1шт.

18

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

19

84132594

SPACER,10.7mm ID x 17.1mm OD x 30mm OAL

1шт.

20

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

1шт.

21

47567839

SHIELD

Fuel Neck

1шт.

22

47595074

Plate, Fuel Tank Top

SUPPORT

1шт.

23

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

Trim

1шт.

24

84983188

RIVET,Flng, SW 11mm OD x 17.2mm L

7шт.

25

87681207

BOLT,M8 x 24.1mm, Cl 10.9

7шт.

26

47583625

SEAL

Rubber, Fuel Neck, 115mm ID x 255mm OD

1шт.

27

47597570

RETAINER

Fuel Neck Seal

1шт.

28

47551475

FASTENER

Push - In, Tree

3шт.

29

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree

1шт.

30

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
