Запчасти Case IH 9240 (80.180.AP[08]) - VAR - 425356 - UNLOADING TUBE, FOLDING TOP, EXTENSION (80) - CROP STORAGE/UNLOADING

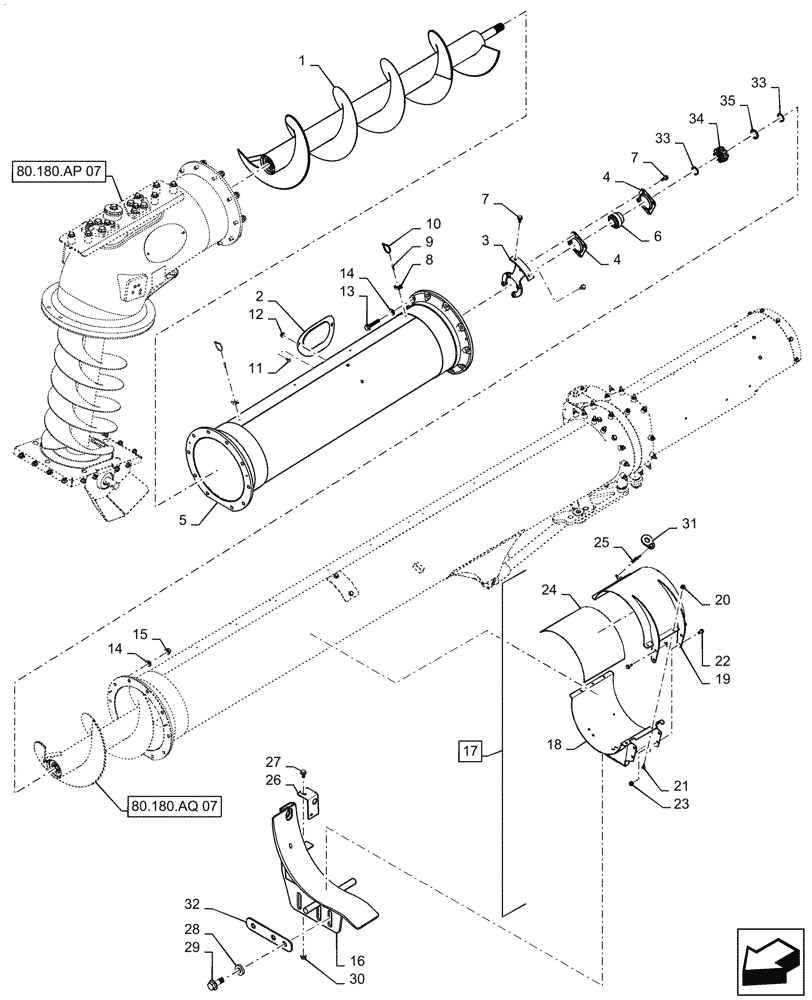

Схема запчастей Case IH 9240 - (80.180.AP[08]) - VAR - 425356 - UNLOADING TUBE, FOLDING TOP, EXTENSION (80) - CROP STORAGE/UNLOADING
80.180.aq 07
31
21
13
10
34
2
28
25
18
3
14
35
4
6
7
23
19
32
29
1
4
5
16
15
9
7
12
17
27
33
8
33
11
24
26
22
14
20
30
80.180.ap 07

Артикул

Название

Примечание

Количество

1

47395186

AUGER

Extended Wear, High Capacity, Extension, Serial Range: -YGG231218

1шт.

1

47826369

AUGER

Extended Wear, Hight Capacity, Extension, 8 Spline, Start Serial: YGG231219

1шт.

2

84307048

CAP COVER

Side, 280mm OD x 2.14mm Thk

1шт.

3

47392729

BRACKET

Bearing

1шт.

4

86979948

FLANGE

85mm ID x 15.5mm Thk

2шт.

5

84536432

UNLOADING TUBE

High Capacity, Folding Tube Extension

1шт.

6

84416910

BALL BEARING,41.27mm ID x 85mm OD x 22mm W

Extension, 41.275mm ID x 85mm OD x 56.5mm Thk

1шт.

7

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

6шт.

8

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

4шт.

9

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

10

86566989

CABLE TIE,208mm L

5шт.

11

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

13

47411044

FLANGE BOLT,M16 x 95.4mm, Full Thd, Cl 10.9

10шт.

14

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

20шт.

15

86512498

FLANGE NUT,M16 x 2, Cl 10

10шт.

16

84485433

CRADLE

Tube Saddle

1шт.

17

47838895

CLAMP BRACKET

Assy, Unload Tube, Upgrade

1шт.

Z Bracket for Cradle

1шт.

17

47649480

BAND

Unload Tube, Incl 18 - 25, 31

1шт.

18

47649331

CLAMP

424.6mm W

1шт.

19

47649327

CLAMP

423.1mm W

1шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

21

87030775

BOLT,M8 x 38.1mm, Cl 10.9

7шт.

22

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

23

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

24

84487455

RUBBER PAD

225mm W x 406mm OAL x 3.18 Thk

1шт.

25

47619489

PIN

Klik, Quick Connect, 7.94mm OD

1шт.

26

47360554

BRACKET

Supporting

1шт.

27

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

28

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

3шт.

29

87698849

BOLT,M16 x 50mm, Cl 10.9

3шт.

30

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

31

47771442

WASHER

Unload Tube Securing, 21mm ID x 10.668mm Thk

1шт.

32

47535076

PLATE

Saddle Support, 200mm OAL x 40mm W

1шт.

33

370006

SNAP RING,M40, Ext

, Start Serial: YGG231219

2шт.

34

47745647

COUPLING

Course, Start Serial: YGG231219

1шт.

35

47832557

SPACER

Hub, Start Serial: YGG231219

1шт.

Выбрано товаров: 38
