Запчасти Case IH 9240 (80.175.AK[05]) - VAR - 425366 - CHAIN, UNLOADING & FLOW (80) - CROP STORAGE/UNLOADING

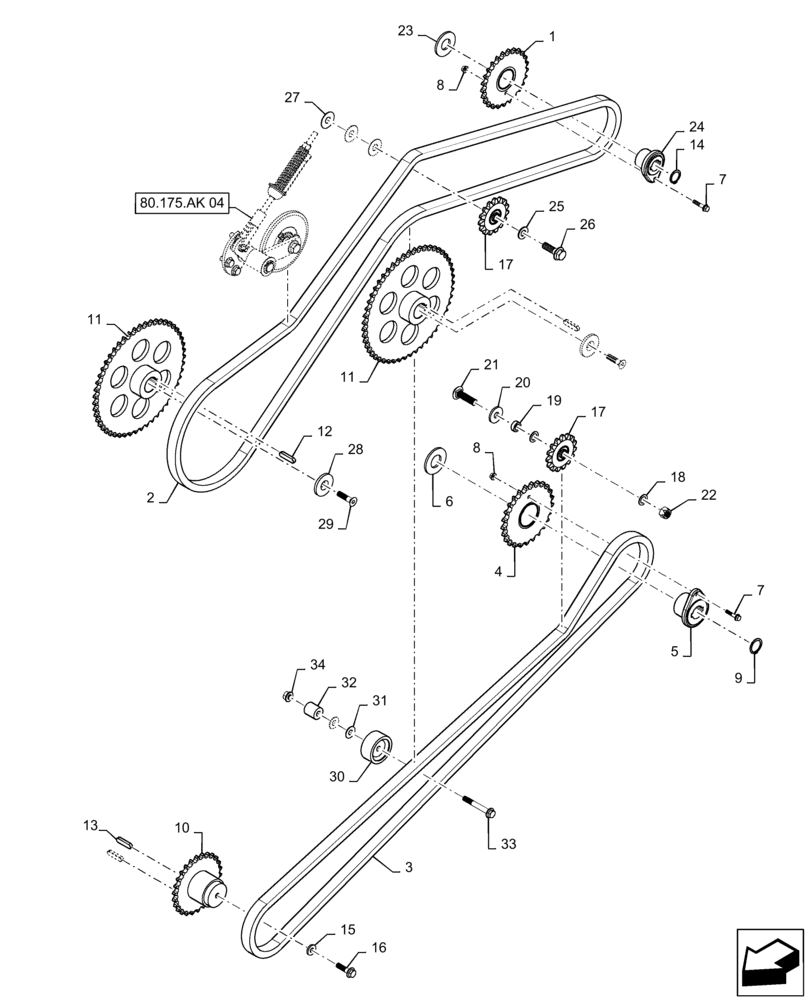

Схема запчастей Case IH 9240 - (80.175.AK[05]) - VAR - 425366 - CHAIN, UNLOADING & FLOW (80) - CROP STORAGE/UNLOADING
14
19
30
12
32
4
33
11
28
3
10
5
7
80.175.ak 04
2
18
24
17
31
8
6
1
9
13
23
22
25
17
20
7
15
8
11
29
16
26
27
21
34

Артикул

Название

Примечание

Количество

1

84373834

SPROCKET

25 Tooth, 50.08mm ID x 164mm OD

1шт.

2

84351953

CHAIN,60H, 192 Links x 19.05mm = 3658mm

Assy

1шт.

3

84525580

CHAIN,60H, 167 Links x 19.05mm = 3181.4mm

Assy

1шт.

4

84069795

SPROCKET

25 Tooth, 60.08mm ID x 164mm OD

1шт.

5

84073176

SHEAR BOLT BUSHING

35mm ID x 54.25mm Thk

1шт.

6

84073175

WASHER,35.1mm ID x 71.5mm OD x 5mm Thk

1шт.

7

87698834

BOLT,M8 x 48.1mm, Cl 10.9

2шт.

8

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

9

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

10

47373845

SPROCKET

26 Tooth, 60 Standard

1шт.

11

84308147

SPROCKET

51 Tooth, 60 Standard

2шт.

12

170056

KEY,12mm W x 50mm OAL

2шт.

13

170012

KEY,8mm W x 50mm OAL

2шт.

14

370003

SNAP RING,M30, External

1шт.

15

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

1шт.

16

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

1шт.

17

86627639

SPROCKET,15T

15 Tooth

2шт.

18

34821

WASHER,17.86mm ID x 28.57mm OD x 1.52mm Thk

2шт.

19

86582836

SPACER

16.5mm ID x 25mm OD x 9.5mm OAL

1шт.

20

86519909

WASHER,17mm ID x 46mm OD x 5mm Thk

1шт.

21

120046

CARRIAGE BOLT,M16 x 60mm, Cl 8.8

1шт.

22

86000441

NUT,M16 x 2.0, Cl 8

1шт.

23

84373836

WASHER

30.1mm ID x 66.5 mm OD x 5mm Thk

1шт.

24

84370481

HUB

Shear Bolt, 30mm ID x 48.4mm Thk

1шт.

25

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

26

87698849

BOLT,M16 x 50mm, Cl 10.9

1шт.

27

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

1шт.

28

84351012

THRUST WASHER,13.5mm ID x 60mm OD x 6.35mm Thk

13.5mm ID x 60mm OD x 6.35mm Thk

2шт.

29

87654459

SCREW

M12 x 50mm

2шт.

30

334970

IDLER,75mm OD

Pulley

1шт.

31

64263

WASHER,13.49mm ID x 31.8mm OD x 1.5mm Thk

1шт.

32

84263247

SPACER

13mm ID x 31.75mm OD x 34.8mm Thk

1шт.

33

87698847

FLANGE BOLT,M12 x 90mm, Cl 10.9

1шт.

34

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

1шт.

Выбрано товаров: 34
