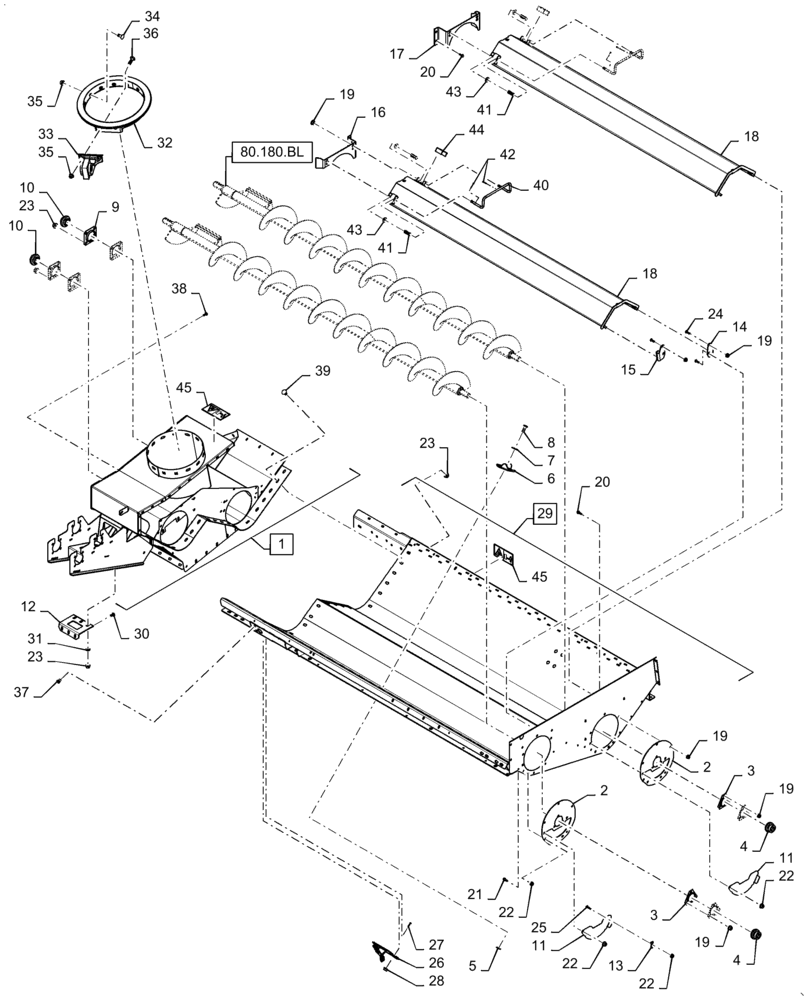

Запчасти Case IH 9240 (80.150.AI[02]) - VAR - 425367, 425371, 425373 - BOTTOM, GRAIN TANK, HC (80) - CROP STORAGE/UNLOADING

1

47495645

SUMP

Grain Tank, Incl 45

1шт.

2

84524976

COVER

Auger End Cap, 352.5mm OD

2шт.

3

84414985

FLANGED BEARING

72mm ID x 9.8mm Thk

4шт.

4

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

2шт.

5

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

6

362786

FASTENER

Wing

2шт.

7

362785

BELLEVILLE WASHER,5.5mm ID x 15mm OD x 0.5mm Thk

2шт.

8

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

9

1307583C1

FLANGED BEARING

80mm ID x 14.7mm Thk

4шт.

10

87605595

BEARING,40mm ID x 80mm OD x 22mm W

2шт.

11

84226493

INSPECTION DOOR

Grain Tank Auger

2шт.

12

84517688

ANGLE

Trough Support

1шт.

13

425093

CLAMP

Panel Retainer

6шт.

14

84376421

BRACKET

Auger Tent Retainer, Rear

1шт.

15

84376423

BRACKET

Auger Tent Retainer, Front

1шт.

16

84524974

SUPPORT

Auger Tent Mount, Rear

1шт.

17

47463127

SUPPORT

Auger Tent Mount, Front

1шт.

18

47408720

COVER

Auger Tent

2шт.

19

86050279

FLANGE NUT,M10 x 1.5, Cl 10

18шт.

20

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

18шт.

21

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

22

86507066

FLANGE NUT,M8 x 1.25, Cl 10

14шт.

23

86512497

FLANGE NUT,M12 x 1.75, Cl 10

37шт.

24

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

4шт.

25

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

8шт.

26

84529558

COVER ASSY

Grain Tank Inspection/Drain

1шт.

27

87752072

CARRIAGE BOLT,M6 x 1.0 x 26.6mm, Cl 10.9

2шт.

28

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

29

47573255

TROUGH

Grain Tank Bottom, Incl 45

1шт.

30

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

6шт.

31

86585939

BELLEVILLE WASHER,M12 Bolt Size x 32mm OD x 3.5mm Thk

6шт.

32

47405745

RING

Unload Tube Support

1шт.

33

84403366

BRACKET

Unload Tube Support

1шт.

34

84382750

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 40mm, Cl 10.9

12шт.

35

86512498

FLANGE NUT,M16 x 2, Cl 10

14шт.

36

84470496

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 60mm, Cl 10.9

2шт.

37

86976968

INSERT,Rivnut, M10 x 1.5 x 19mm OD

2шт.

38

87695427

CARRIAGE BOLT,M12 x 35mm, Cl 10.9

1шт.

39

9503839

CARRIAGE BOLT,Short NK, M12 x 25, Cl8.8, Full Thd

22шт.

40

84233663

HANDLE

Auger Tent

1шт.

41

80025823

SPRING,63.5mm Free Length

Compression

2шт.

42

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

2шт.

43

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

2шт.

44

86976481

COVER

Auger Tent End Cap

2шт.

45

84004736

DANGER DECAL

Auger Entanglement

2шт.
