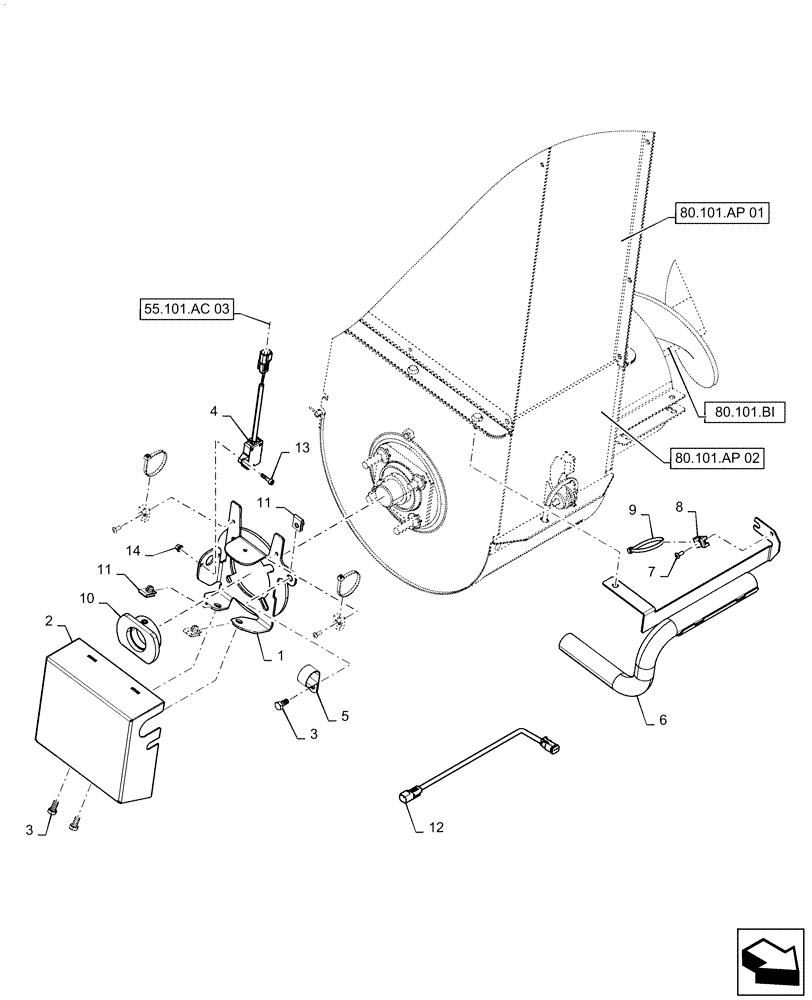

Запчасти Case IH 9240 (80.101.AR[03]) - VAR - 425528, 425529, 425399 - CLEAN GRAIN ELEVATOR, BOOT, SENSOR, NARROW TRACK VERSION (80) - CROP STORAGE/UNLOADING

1

47825917

BRACKET

Clean Grain Elevator Speed Sensor Mount

1шт.

2

84401341

COVER

Clean Grain Elevator Speed Sensor

1шт.

3

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

4

47684406

SENSOR

Clean Grain Auger

1шт.

5

87035382

CLAMP,30.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

6

47519639

TUBE

Wire Harness Protection

1шт.

7

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

5шт.

8

445394

RIVET,Pop, 3/16" x 1/2" OAL

5шт.

9

86566989

CABLE TIE,208mm L

5шт.

10

84399373

COLLAR

Clean Grain Auger Speed Reluctor

1шт.

11

86508354

PUSH-ON NUT,M8 x 1.25

3шт.

12

47501359

WIRE HARNESS

Clean Grain Auger Speed

1шт.

13

14304321

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

2шт.

14

12578015

NUT,M5 x .5, Flg

2шт.
