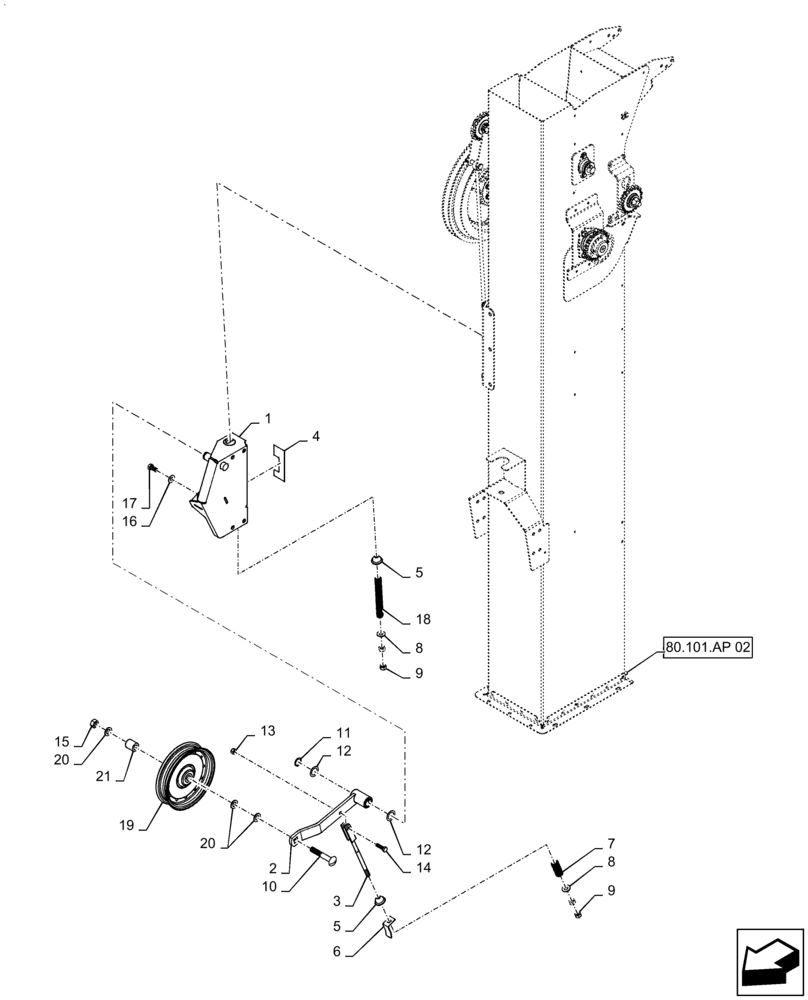

Запчасти Case IH 9240 (80.101.AP[06]) - VAR - 425241, 722481, 425363 - CLEAN GRAIN ELEVATOR, TENSIONER (80) - CROP STORAGE/UNLOADING

1

87108857

MOUNTING PLATE

Idler Pulley

1шт.

2

84155077

ARM

Idler

1шт.

3

86999557

ADJUSTMENT ROD

Idler

1шт.

4

87719433

DECAL

Adjustment

1шт.

5

86560521

PIVOT,13mm ID x 50mm OD x 25.4mm Thk

2шт.

6

84073601

INDICATOR

25mm W x 92.6mm OAL x 2.14mm Thk

1шт.

7

681902

SPRING

Compression, 0.935" OD x 3.49" Free Length, 12 Coils

1шт.

8

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

9

9706685

NUT,M12 x 1.75, Cl 8

4шт.

10

322362

CARRIAGE BOLT,M16 x 100mm, Cl 8.8

1шт.

11

370002

CIRCLIP,M25, External

1шт.

12

140103

WASHER,26mm ID x 38mm OD x 1mm Thk

2шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

14

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

15

100020

NUT,M16 x 2.0, Cl 8

1шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

17

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

18

87719434

COIL SPRING

Compression, 20.68mm OD x 204mm Free Length, 38 Coils

1шт.

19

86588003

IDLER,51.6mm W x 228.6mm OD

16.49mm ID x 228.6mm OD x 51.6mm Thk

1шт.

20

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

3шт.

21

86975913

SPACER,17.46mm ID x 30.16mm OD x 33mm L

17.46mm ID x 30.16mm OD x 33mm OAL

1шт.
