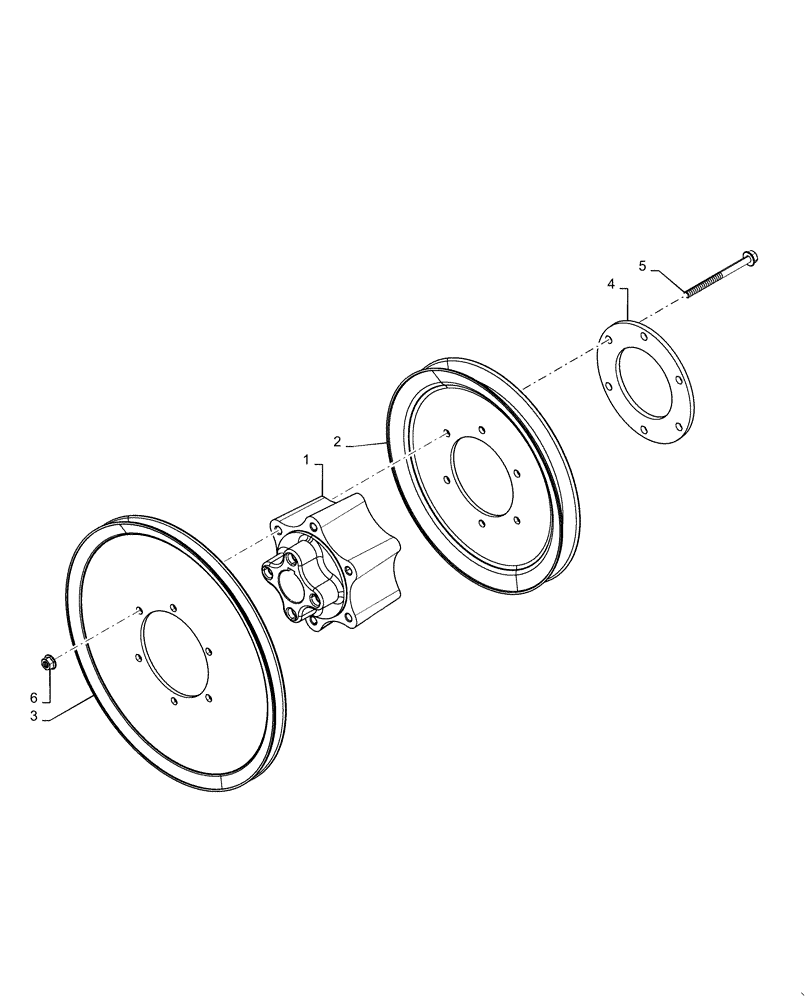

Запчасти Case IH 9240 (80.101.AM[02]) - VAR - 722481, 425241, 425363 - PULLEY, CLEAN GRAIN ELEVATOR (80) - CROP STORAGE/UNLOADING

1

47513699

HUB

Clean Grain Elevator Drive, 40.012mm ID x 109.6mm Thk

1шт.

2

84128455

PULLEY ASSY.

Single Speed,100mm ID x 281mm OD x 30mm Thk, - VAR - 722481

1шт.

2

86999007

PULLEY,335mm OD

2 - Speed, 100mm ID x 344.8mm OD, - VAR - 425363, 425241

1шт.

3

47628742

PULLEY

Clean Grain Elevator Driver, Inner, 108.25mm ID x 340.99mm OD x 18.9mm Thk

1шт.

4

84252607

RING,90mm ID x 150mm OD x 6mm Thk

1шт.

5

87301686

BOLT,M8 x 108.1mm, Cl 10.9

6шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.
