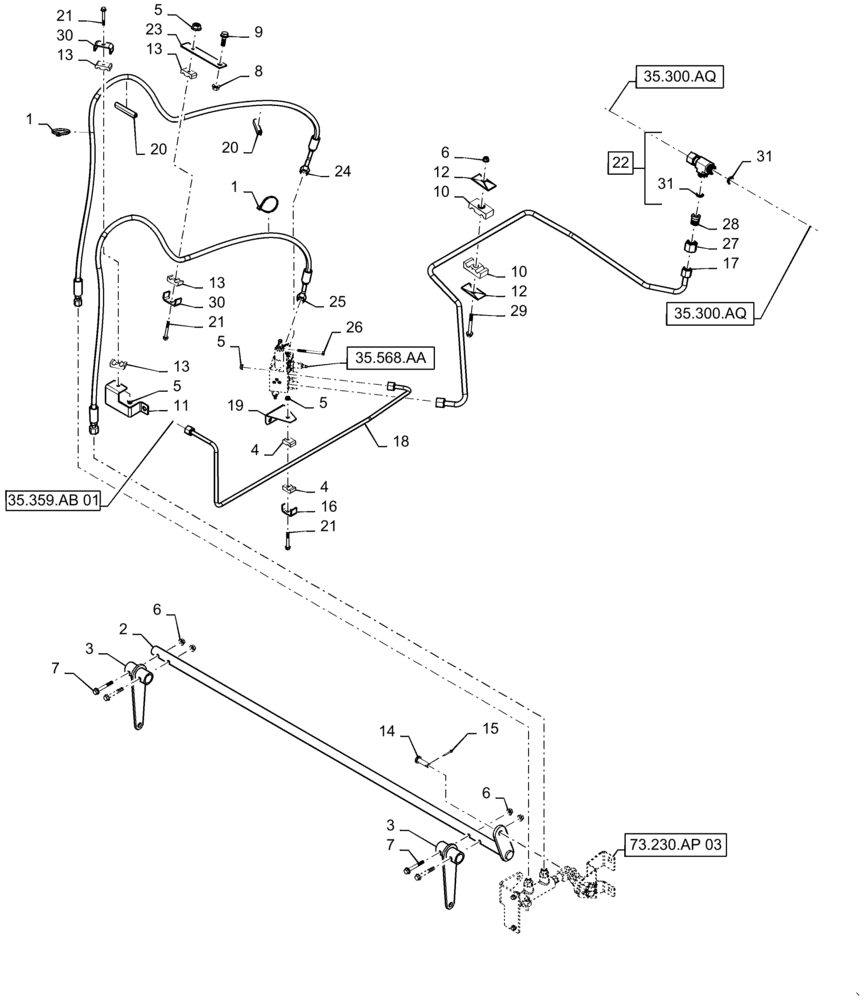

Запчасти Case IH 9240 (73.230.AP[02]) - VAR - 425360, 425428 - ADJUSTER, HYDRAULIC SYSTEM, KNIFE HOLDER (73) - RESIDUE HANDLING

1

86566989

CABLE TIE,208mm L

2шт.

2

84353544

SHAFT

Knife Adjuster, 25.4mm OD x 1394.6mm OAL

1шт.

3

87670419

ARM ASSY.

Knife Adjuster

2шт.

4

433008

CLAMP

Hydraulic Hose, 31mm OAL x 20mm Thk

2шт.

5

86050300

FLANGE NUT,M6 x 1.0, Cl 10

5шт.

6

87681210

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

7

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

4шт.

8

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

9

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

10

87000139

CLAMP

Hydraulic Hose, 15.87mm ID x 12.7mm ID x 67mm OAL x 30mm Thk

1шт.

11

47393223

BRACKET

Mounting, Counter Knife Hose

1шт.

12

87000230

PLATE

Hose Clamp, 9mm ID x 65mm OAL x 30mm Thk

2шт.

13

430357

CLAMP

Hydraulic Hose, 6.5mm ID x 42mm OAL x 20mm Thk

4шт.

14

321018

CLEVIS PIN,12mm OD x 44mm L

1шт.

15

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

1шт.

16

433101

SUPPORT

Hydraulic Hose Clamp, 69.9mm OAL x 20mm Thk

1шт.

17

47405122

HYD TUBE

Counter Knife, Return, 10.2mm ID x 12.7mm OD x 700.2mm OAL

1шт.

18

47394727

HYD TUBE

Counter Knife Supply, 7.5mm ID x 10mm OD x 824mm OAL

1шт.

19

47408148

BRACKET

Support, Counter Knife Hydraulic Valve

1шт.

20

47560080

PROTECTION

Edge Channel, Cut From Bulk. 0.6 Ft.

1шт.

21

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

3шт.

22

84989850

3 WAY CONNECTION

Hydraulic, 16mm, Incl 31

1шт.

23

84342783

BRACKET

Support, Counter Knife Tube

1шт.

24

47393228

HYDRAULIC HOSE,6.35mm ID x 1625mm L, SAE 100R17

Counter Knife, Cylinder B, 6.3mm ID x 1625mm OAL

1шт.

25

47393231

HYDRAULIC HOSE,6.35mm ID x 1585mm L, SAE 100R17

Counter Knife, Cylinder A, 6.3mm ID x 1565mm OAL

1шт.

26

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

2шт.

27

85802819

TUBE NUT,1"-14 x 24mm L

ORFS, 16mm

1шт.

28

84989629

HYD CONNECTOR,13/16" - 16 ORB x 1" ORFS

Adapter, 5/8" x 1/2"

1шт.

29

87656138

BOLT,M8 x 78.1mm, Cl 10.9

1шт.

30

431941

SUPPORT

Hydraulic Hose Clamp, 20mm W x 49mm OAL x 3.3mm Thk

2шт.

31

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.
