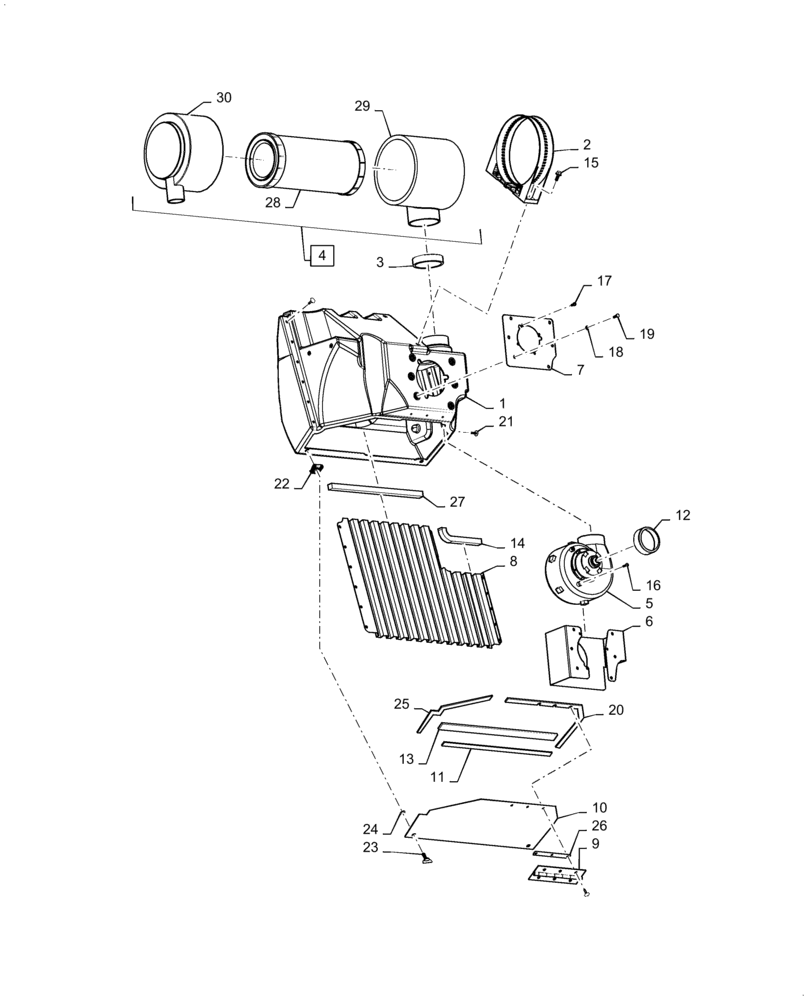

Запчасти Case IH 9240 (50.300.AB[02]) - AIR CLEANER, BLOWER, CAB (50) - CAB CLIMATE CONTROL

1

87720596

FAN HOUSING

Cab Intake

1шт.

2

84057675

CLAMP BRACKET

Filter Clamp

1шт.

3

87343108

RUBBER SEAL

Cut From Bulk, 280mm OAL

1шт.

4

84334657

AIR CLEANER

Cab, Incl 28 - 30

1шт.

5

84056300

BLOWER

Cab Intake

1шт.

6

87720601

SUPPORT

Airbox Inner, Blower

1шт.

7

87720602

SUPPORT

Airbox Outer, Blower

1шт.

8

47405913

SCREEN

Airbox

1шт.

9

87720610

HINGE

Airbox Lower

1шт.

10

87720605

LID

Airbox Bottom

1шт.

11

47405846

SEALING STRIP,410mm L

Airbox, Bottom, Front, 410mm OAL x 4mm Thk

1шт.

12

84042730

PROTECTION

Shrink Tube, 30mm OAL

1шт.

13

401278

SEALING STRIP

Cut From Bulk, 438mm OAL

1шт.

14

47552731

FOAM

Middle, Filter, 147mm OAL x 19.05mm Thk

1шт.

15

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

16

84043237

SCREW,Pozidrive, Pan HD, M4.8 x 1.6 x 19mm

3шт.

17

84043238

SELF-TAP SCREW,Pozidrive, Pan HD, M6.3 x 1.8 x 13mm

4шт.

18

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

6шт.

19

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

20

47474573

SEALING STRIP

Airbox, Bottom, Rear, 319mm OAL x 4mm Thk

1шт.

21

9512290

RIVET,Pop, 4.8mm OD x 17.8mm L

19шт.

22

84576335

LOCK

Quarter Turn Receiver

2шт.

23

84580402

PLUG

Quarter Turn Lock

2шт.

24

84576365

WASHER,8mm ID x 16mm OD x 0.5mm Thk

Quarter Turn Lock

2шт.

25

47474574

SEALING STRIP

Airbox, Lower, Rear, 319mm OAL x 4mm Thk

1шт.

26

47405887

SEALING STRIP

Bottom Hinge, 135mm OAL x 15mm W x 1.64mm Thk

1шт.

27

47552732

FOAM

Bottom, Filter, 346mm OAL x 19.05mm Thk

1шт.

28

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Cab, Primary, Was 87682993

1шт.

29

NSS

NOT SOLD SEPARAT

Air Cleaner, Lower, Incl in 4

1шт.

30

NSS

NOT SOLD SEPARAT

Air Cleaner, Upper, Incl in 4

1шт.
