Запчасти Case IH 9240 (48.134.AJ[03]) - VAR - 415219, 415306, 415260, 415261, 415332 - HYDRAULIC CYLINDER, TRACK ASSY (48) - TRACKS & TRACK SUSPENSION

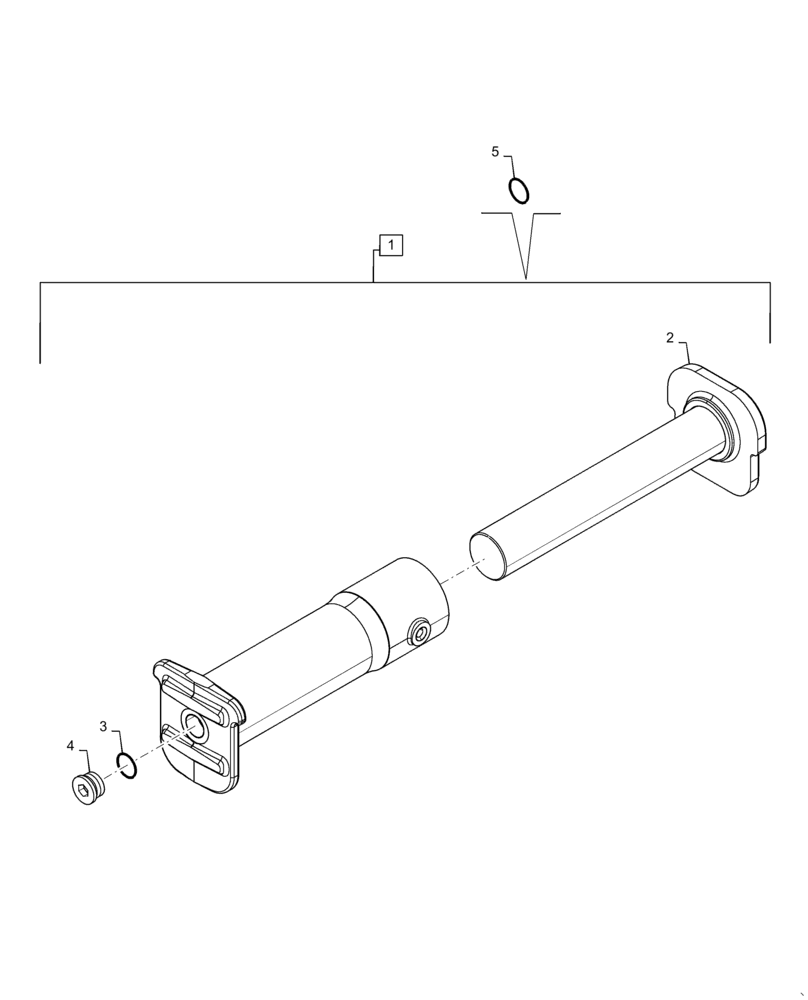

Схема запчастей Case IH 9240 - (48.134.AJ[03]) - VAR - 415219, 415306, 415260, 415261, 415332 - HYDRAULIC CYLINDER, TRACK ASSY (48) - TRACKS & TRACK SUSPENSION
1
4
3
5
2

Артикул

Название

Примечание

Количество

1

84577087

HYDRAULIC CYLINDER,Double Acting, 60mm Rod, 228mm Stroke

Track Tension, Incl 2 - 5

1шт.

1

84577087R

REMAN-HYD CYLINDER

Reman Track Tension, Incl 2 - 5

1шт.

1

84577087C

CORE-HYD CYLINDER

Core Return Number

1шт.

2

47378718

ROD,60mm OD

Rod

1шт.

3

47378721

O-RING

Cylinder Plug

1шт.

4

47378720

PLUG

Cylinder End

1шт.

5

47378722

SEAL KIT

Services 1

1шт.

Выбрано товаров: 7
