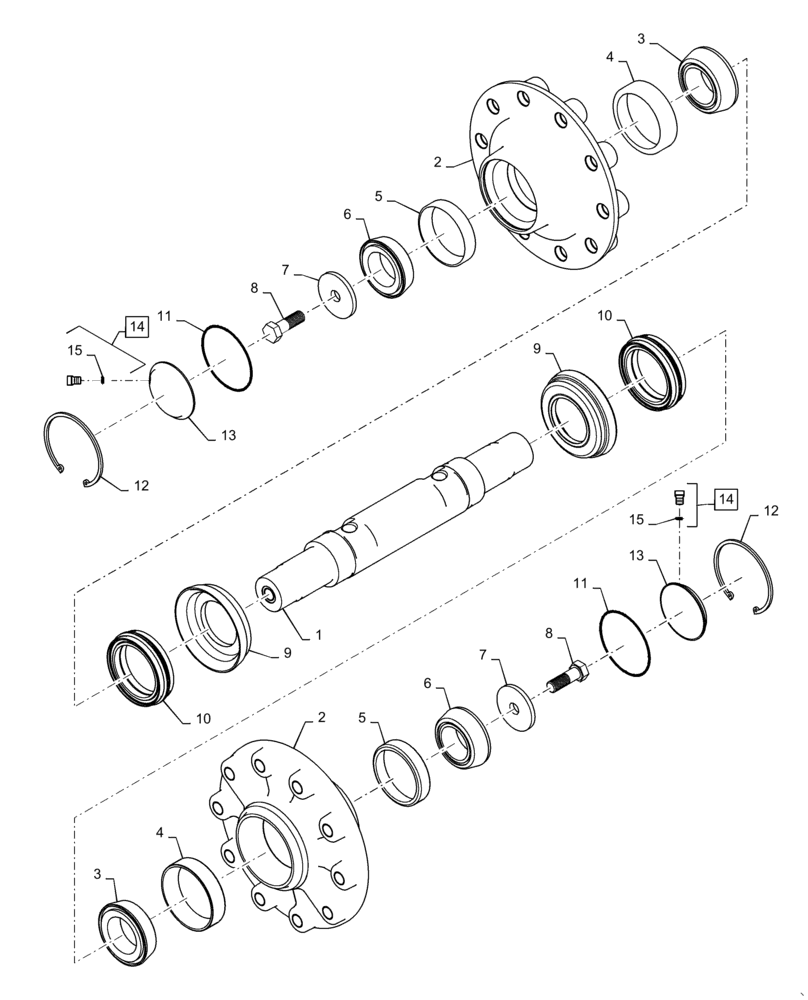

Запчасти Case IH 9240 (48.134.AA[02]) - VAR - 415219, 415261, 415306 - IDLER, TRACK ASSY, REAR (48) - TRACKS & TRACK SUSPENSION

1

84202392

IDLE SHAFT

Rear Idler

1шт.

2

84272488

HUB

Rear Idler

2шт.

3

87750406

BEARING CONE,66.68mm ID x 38.35mm W

2шт.

4

87750407

BEARING CUP,122.24mm OD x 29.72mm W

2шт.

5

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

2шт.

6

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

2шт.

7

87387720

RETAINER

20.65mm ID x 78mm OD x 8.5mm Thk

2шт.

8

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

2шт.

9

84223192

CUP

83.4mm ID x 154mm OD x 35.8mm Thk

2шт.

10

84198542

SEAL,96mm ID x 125.35mm OD x 33mm W

2шт.

11

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

12

370014

SNAP RING,M130, Internal

2шт.

13

47608296

COVER

Idler, Clear

2шт.

14

86598043

PLUG,M12 x 1.5 ORB

Incl 15

2шт.

15

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.
