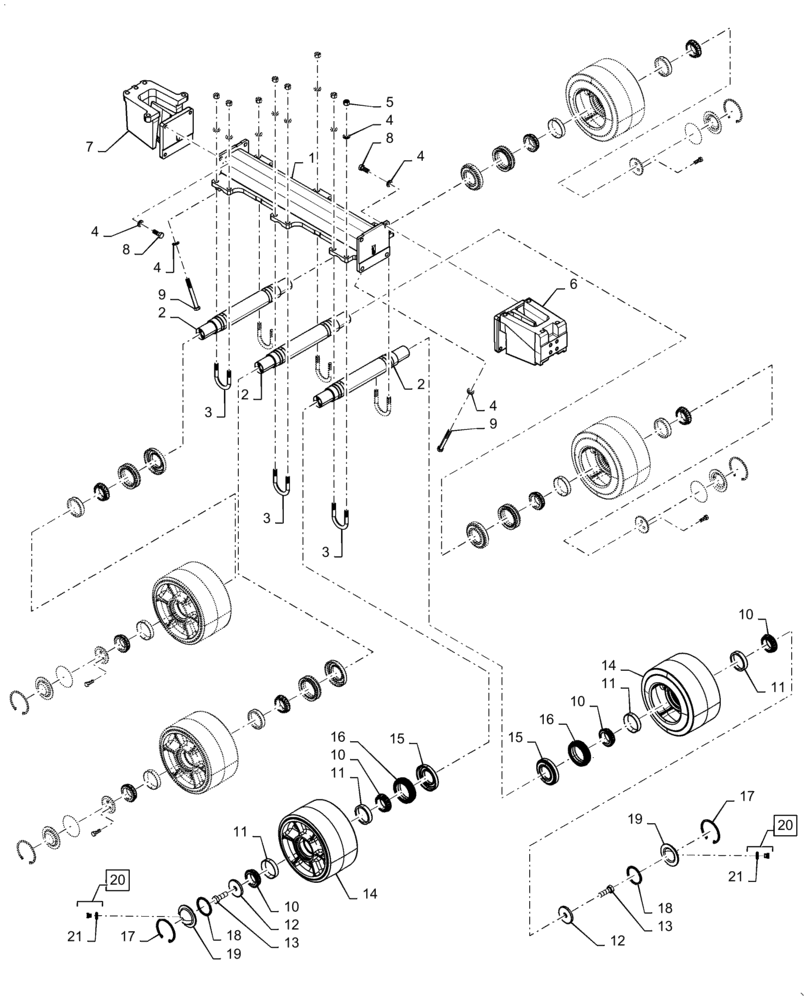

Запчасти Case IH 9240 (48.130.AN[01]) - VAR - 415219, 415261, 415306 - BEAM, TRACK ROLLER (48) - TRACKS & TRACK SUSPENSION

1

408786A1

BEAM

Roller Wheel Mount

1шт.

2

84222576

ROLLER SHAFT

Track Wheel, 588.1mm L

3шт.

2

47441558

SHAFT

Track Wheel, 600.1mm L

3шт.

Improved Roller Shaft For 36" Track VAR - 415219, 415306

1шт.

3

231765A1

U-BOLT,M16 x 2 x 30mm Threaded, x 80.2mm W

6шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

22шт.

5

832-46416

NUT,M16 x 2, Cl 8

12шт.

6

389763A1

SUSPENSION

Front, Mount

1шт.

6

389763A1R

SUSPENSION

Front, Mount, Remanufactured

1шт.

6

389763A1C

SUSPENSION

Return Number

1шт.

7

389761A1

SUSPENSION

Rear, Mount

1шт.

7

389761A1R

SUSPENSION

Rear, Mount, Remanufactured

1шт.

7

389761A1C

SUSPENSION

Return Number

1шт.

8

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

9

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

2шт.

10

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

12шт.

11

625743C1

BEARING CUP,90mm OD x 18.5mm W

12шт.

12

87387720

RETAINER

Bearing, 20.65mm ID x 78mm OD x 8.5mm Thk

6шт.

13

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

6шт.

14

84162383

WHEEL ASSY

Roller

6шт.

14

47487680R

REMAN-WHEEL ROLLER

Roller

6шт.

14

47487680C

CORE-WHEEL ROLLER

Return Number

6шт.

15

84223194

CUP,65.93mm ID x 125mm OD x 12.15mm Thk

6шт.

16

84198544

SEAL,84mm ID x 113.85mm OD x 29mm W

6шт.

17

301652

SNAP RING,M110 x 4mm, Internal

6шт.

18

86984140

O-RING,97mm ID x 6.99mm Thk

6шт.

19

47608298

COVER

Roller, Clear

6шт.

20

86598043

PLUG,M12 x 1.5 ORB

Incl 21

6шт.

21

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

6шт.
