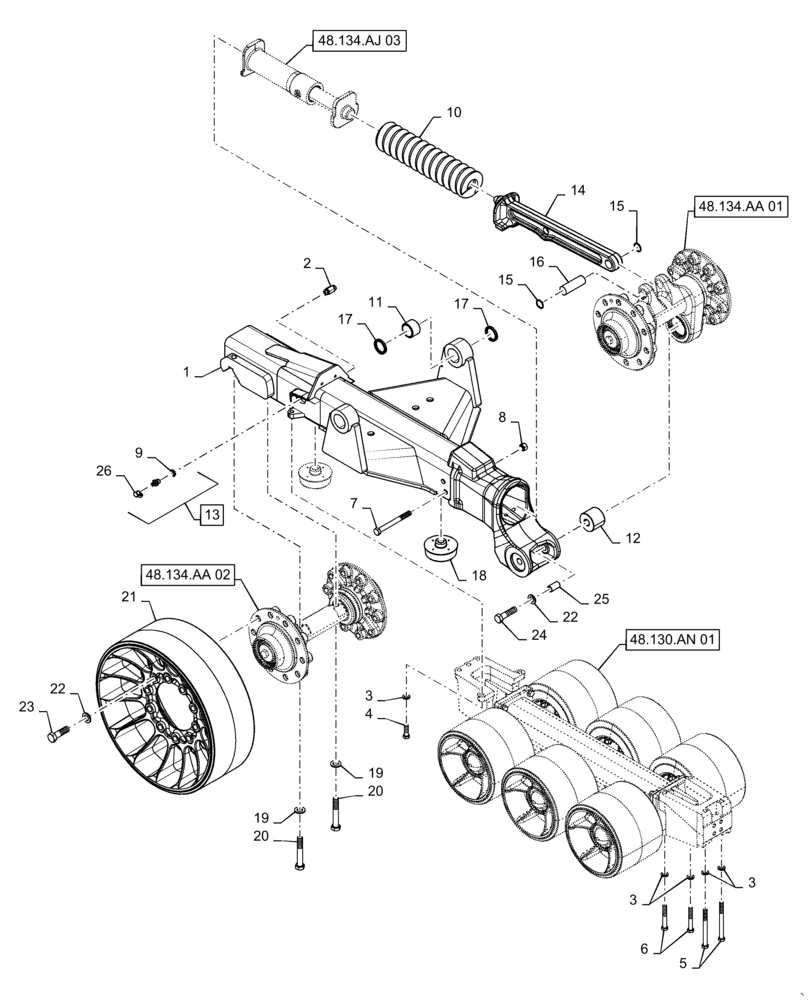

Запчасти Case IH 9240 (48.120.AJ[01]) - VAR - 415219, 415306 - UNDERCARRIAGE, TRACK ASSY (48) - TRACKS & TRACK SUSPENSION

1

87748448

MOUNTING PARTS

RH, Frame

1шт.

1

87748449

MOUNTING PARTS

LH, Frame

1шт.

2

87735260

CHECK VALVE,10mm ORFS x M18 x 1.5 ORB

1шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

13шт.

4

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

9шт.

5

827-16180

BOLT,Hex, M16 x 2 x 180mm, Cl 10.9

2шт.

6

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

7

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

1шт.

8

832-46420

NUT,M20 x 2.5, Cl 8

1шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

255729A1

SPRING

Track Tension, 13 Coils

1шт.

11

47595575

BUSHING

57.354mm ID x 69.965mm OD x 47mm Thk

2шт.

12

87324220

IDLE SHAFT

Pivot, M24 x 3 x 88.89mm OD x 71mm Thk

2шт.

13

325647A2

COUPLING

Male Quick Connect, Incl 9, 26

1шт.

14

87436823

LINK ASSY.

Track Tension

1шт.

15

87038806

SNAP RING,M38, Internal

2шт.

16

329647A1

PIN,38.1mm OD x 113mm L

1шт.

17

87423203

SEAL

Undercarriage Oscillation, 55.5mm ID x 70mm OD x 8.5mm Thk

4шт.

18

87669420

STOP,150mm OD x 68mm L

Suspension

2шт.

19

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

2шт.

20

827-22140

BOLT,Hex, M22 x 2.5 x 140mm, Cl 10.9

2шт.

21

87441100

WHEEL ASSY

Idler

4шт.

21

87752138R

REMAN-WHEEL ROLLER

4шт.

21

87752138C

CORE-WHEEL ROLLER

Return Number

4шт.

22

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

42шт.

23

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

40шт.

24

47534762

BOLT,Hex, M24 x 3 x 95mm, Cl 10.9

M24 x 90mm, Cl 10.9

2шт.

25

87585083

SPACER

Alignment, 25mm ID x 28.6mm OD x 52mm L

1шт.

26

86502604

DUST CAP

1/8", Black

1шт.
