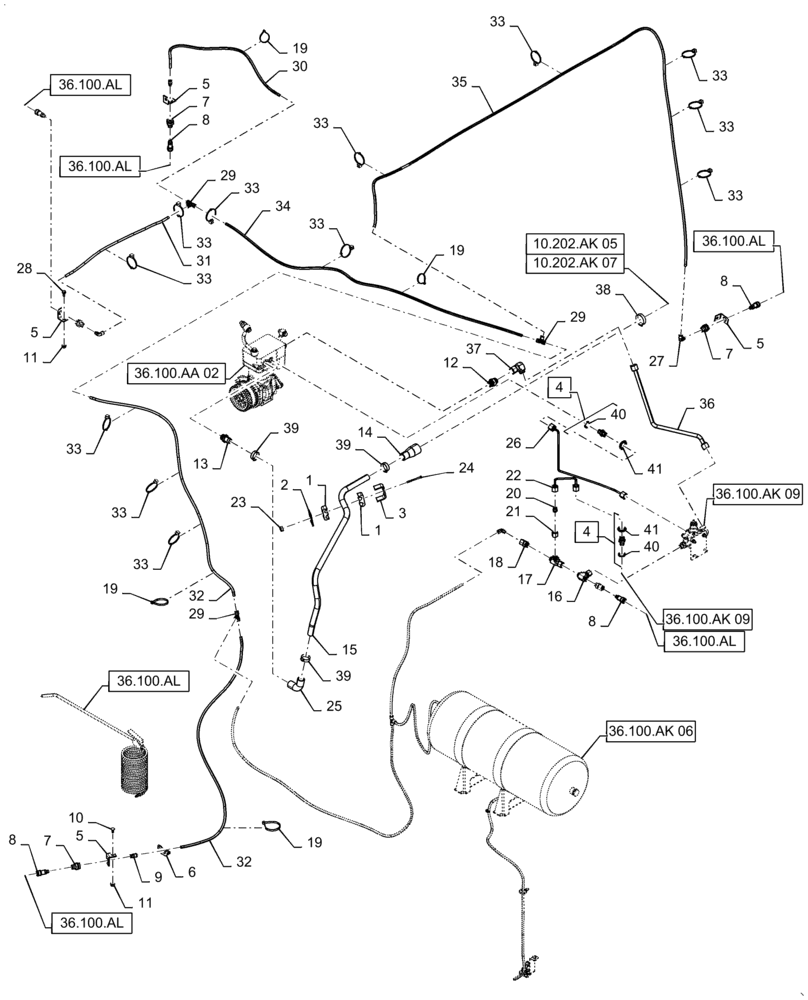

Запчасти Case IH 9240 (36.100.AK[05]) - VAR - 722525 - AIR COMPRESSOR AND RESERVOIR (36) - PNEUMATIC SYSTEM

1

457547

CLAMP

Hose, 84mm L x 20mm W

2шт.

2

367681

FIXING PLATE

Hose Clamp, 90mm L x 30mm W

1шт.

3

743320

SUPPORT

Hose Clamp, Bracket, 96mm L

1шт.

4

82019386

HYD CONNECTOR

M12 x 1.5mm x 29.7mm L, Incl 40 - 41

2шт.

5

84169096

ANGLE

Bracket, 82.2mm L x 32mm W

4шт.

6

84427158

RUBBER SEAL

Edge Channel, Cut From Bulk, 3.9" L

1шт.

7

84171982

HYD CONNECTOR

Bulkhead, 1/4" ID x 3/4" x 37mm L

4шт.

8

84172049

COUPLING

Coupling, Quick Disconnect, 1/4" OD, Male

5шт.

9

84162977

HYD CONNECTOR

Adapter, Push Connect, 3/8" OD x 1/4"

2шт.

10

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

1шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

12

47451214

FITTING

0.492" ID x 1.811" L

1шт.

13

47646564

FITTING

23.7mm ID x 53mm L

1шт.

14

84073303

HOSE,25mm ID - 38mm ID x 100mm OAL

1шт.

15

47706021

TUBE

23.5mm ID x 25mm OD x 628.9mm L

1шт.

16

84431325

TEE,13/16"-16 ORFS x 13/16"-16 Fem Sw Br

1шт.

17

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

18

84166641

HYD CONNECTOR

Female Pipe, 1/4" ID x 44.45mm L

2шт.

19

86566989

CABLE TIE,208mm L

4шт.

20

87388776

ADAPTER,13/16" - 16

1шт.

21

85802628

HYD CONNECTOR,1/2"

1/2" OD x 13/16"

1шт.

22

84165638

HYD TUBE,5.46mm ID x 6.35mm OD x 100mm OAL x 60mm W

1шт.

23

353308

NUT,M6 x 1.0, Cl 8

1шт.

24

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

1шт.

25

84334134

HOSE,25mm ID x 69mm OAL

1шт.

26

47695920

TUBE

Compressor to Pressure Relief Valve, 5.46mm ID x 6.35mm OD x 505mm L

1шт.

27

84162975

HYD CONNECTOR

Elbow, Push Connect, 3/8" OD x 1/4", 150 P.S.I

3шт.

28

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

29

84175931

HYD CONNECTOR

Tee, Push Connect, 3/8" OD x 51mm L, 150 P.S.I

3шт.

30

84173552

AIR HOSE,7.11mm ID x 1000mm OAL

1шт.

31

84173550

AIR HOSE,7.1mm ID x 800mm OAL

1шт.

32

84372643

AIR HOSE

7.112mm ID x 9.525mm OD x 1410mm L, Rated At 150 P.S.I

1шт.

33

87694057

CABLE TIE,200mm L

12шт.

34

84172815

AIR HOSE,7.11mm ID x 1150mm OAL

1шт.

35

47560369

AIR HOSE

7.112mm ID x 9.525mm OD x 3285mm L, Rated At 150 P.S.I

1шт.

36

47706745

TUBE

Compressor to Pressure Relief Valve, 14.224mm ID x15.875mm OD x 488.5mm L

1шт.

37

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

1шт.

38

382528

HOSE CLAMP,35mm ID - 52mm ID x 13mm W, Unlined

1шт.

39

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

3шт.

40

82019391

SEAL,9.8mm ID x 14.4mm OD x 1mm Thk

9.8mm ID x 14.4mm OD x 1mm Thk

1шт.

41

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
