Запчасти Case IH 9240 (29.100.AO[03]) - VAR - 425215, 425399, 425402, 425403, 425431, 425529 - HYDROSTATIC PUMP, DRIVE (29) - HYDROSTATIC DRIVE

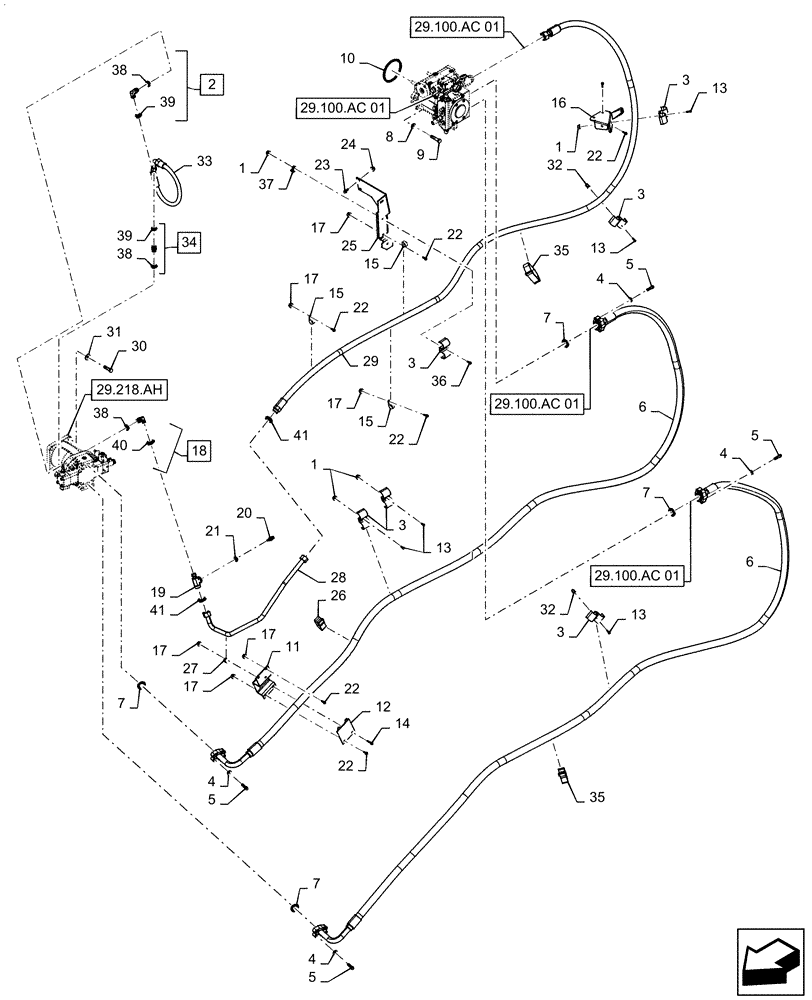

Схема запчастей Case IH 9240 - (29.100.AO[03]) - VAR - 425215, 425399, 425402, 425403, 425431, 425529 - HYDROSTATIC PUMP, DRIVE (29) - HYDROSTATIC DRIVE
29.100.ac 01
29
27
15
1
34
12
11
22
17
4
13
39
20
5
6
35
31
6
39
26
17
18
1
7
3
24
33
22
17
5
38
38
5
1
7
21
3
7
13
17
7
23
4
16
37
9
15
4
14
4
22
2
22
38
32
17
22
41
17
25
8
19
10
5
3
32
40
28
3
15
41
13
35
30
13
3
22
36
29.218.ah
29.100.ac 01
29.100.ac 01
29.100.ac 01

Артикул

Название

Примечание

Количество

1

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

2

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 38 - 39

1шт.

3

84444101

CLAMP

Hose, 128mm L x 55mm Thk

5шт.

4

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

16шт.

5

87680393

12 PT SCREW,M14 x 2 x 45mm, Cl 12.9

16шт.

6

47510438

HYDRAULIC HOSE

31.5mm ID x 5390mm L

2шт.

7

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

4шт.

8

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

4шт.

9

87341990

BOLT,Hex, M16 x 70mm, Cl 10.9

4шт.

10

87017583

O-RING,0.103" Thk x 5.987" ID, -163, Cl 7, 75 Duro

Hydrostatic Motor to PTO

1шт.

11

84069548

PLATE

Hose Retention, 342.5mm L x 120mm Thk

1шт.

12

84069549

PLATE

Outside, Hose Retention, 66mm L x 120mm Thk

1шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

14

87698834

BOLT,M8 x 48.1mm, Cl 10.9

1шт.

15

87010657

CLAMP,34.9mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

16

47700124

BRACKET

Upper, Support

1шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

18

86579692

90 ELBOW,90 Degree, 13/16"-18 ORFS x M22 x 1.5 ORB

Incl 38, 40

1шт.

19

87668483

ORIFICE

Gauge Port Tee

1шт.

20

86571273

SENSOR

Hydraulic Oil Temperature

1шт.

21

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

22

87698833

BOLT,M8 x 33.1mm, Cl 10.9

10шт.

23

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

24

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

25

47446318

BRACKET

Rear, Hydrostatic Drive Hose Support

1шт.

26

87108048

SECURING STRAP

330mm L

4шт.

27

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

28

84198520

RIGID TUBE

Case Drain, Ground Drive Motor

1шт.

29

47797658

HYDRAULIC HOSE

Case Drain, Ground Drive Motor, 25mm ID x 4720mm L

1шт.

30

84058945

WASHER,16.5mm ID x 41mm OD x 6mm Thk

4шт.

31

87022685

BOLT,Hex, M16 x 55mm, Cl 10.9

4шт.

32

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

3шт.

33

47912935

HYDRAULIC HOSE

Flushing Line

1шт.

34

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 38 - 39

1шт.

35

47789615

STRAP

Cinching

5шт.

36

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

37

84474186

BASE

Wire Tie

1шт.

38

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

39

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

40

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

41

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

Выбрано товаров: 41
