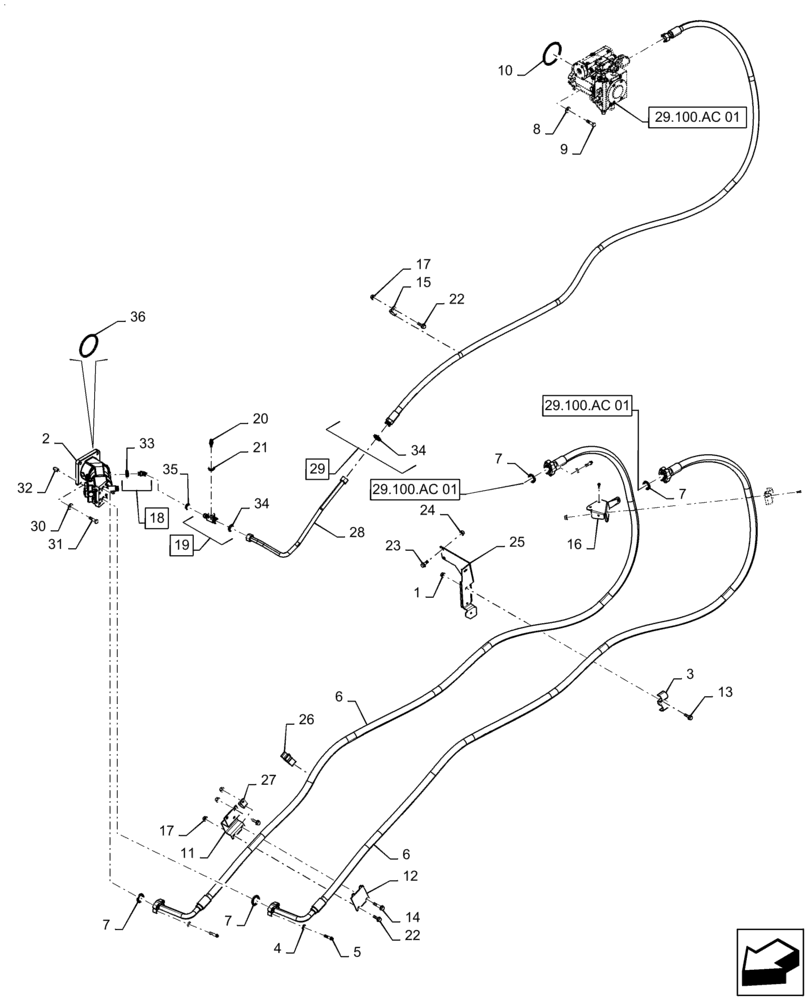

Запчасти Case IH 9240 (29.100.AO[02]) - VAR - 722775, 722776, 425273 - HYDROSTATIC PUMP, DRIVE (29) - HYDROSTATIC DRIVE

1

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

2

84168175

HYDROSTATIC MOTOR

125CC

1шт.

2

84168175R

REMAN-HYDROSTAT MOTO

125CC

1шт.

2

84168175C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

3

84444101

CLAMP

Hose, 128mm L x 55mm Thk

5шт.

4

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

16шт.

5

87680393

12 PT SCREW,M14 x 2 x 45mm, Cl 12.9

16шт.

6

47471530

HYDRAULIC HOSE

31.5mm ID x 5445mm L

2шт.

7

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

4шт.

8

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

4шт.

9

87341990

BOLT,Hex, M16 x 70mm, Cl 10.9

4шт.

10

87017583

O-RING,0.103" Thk x 5.987" ID, -163, Cl 7, 75 Duro

Hydrostatic Motor to PTO

1шт.

11

84069548

PLATE

Hose Retention, 342.5mm L x 120mm Thk

1шт.

12

84069549

PLATE

Outside, Hose Retention, 166mm L x 120mm Thk

1шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

14

87698834

BOLT,M8 x 48.1mm, Cl 10.9

1шт.

15

87010657

CLAMP,34.9mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

16

47700124

BRACKET

Upper Support

1шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

18

86639056

ELBOW,45 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 33

1шт.

19

87668483

ORIFICE

Gauge Port Tee, Incl 34

1шт.

20

86571273

SENSOR

Hydraulic Oil Temperature

1шт.

21

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

22

87698833

BOLT,M8 x 33.1mm, Cl 10.9

10шт.

23

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

24

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

25

47446318

BRACKET

Rear, Hydrostatic Drive Hose Support

1шт.

26

87108048

SECURING STRAP

330mm L

4шт.

27

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

28

84169441

HYD TUBE,25 mm OD

Case Drain, Ground Drive Motor

1шт.

29

47471531

HYDRAULIC HOSE

Case Drain, Ground Drive Motor, 25mm ID x 4720mm L, Incl 34

1шт.

30

84058945

WASHER,16.5mm ID x 41mm OD x 6mm Thk

4шт.

31

87022685

BOLT,Hex, M16 x 55mm, Cl 10.9

4шт.

32

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

3шт.

33

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

34

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

35

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

36

84190056

SEAL KIT

Services 2

1шт.
