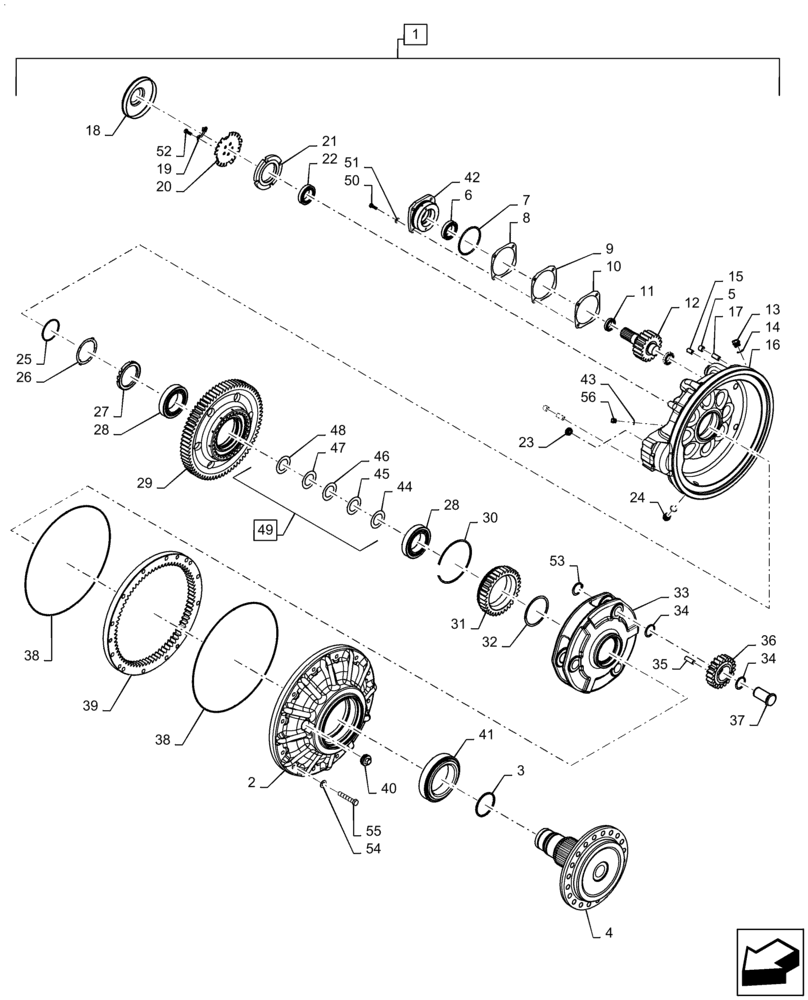

Запчасти Case IH 9240 (25.310.AB[01]) - VAR - 722775, 722776, 425273 - FINAL DRIVE, PLANETARY GEAR, STANDARD 13.09/1 (25) - FRONT AXLE SYSTEM

1

47402442

FINAL DRIVE

13.09/1 Ratio, Incl 2 - 56

2шт.

2

84448821

HOUSING

Final Drive

1шт.

3

9832264

SEAL,198.3mm ID x 230mm OD x 13mm Thk

1шт.

4

47402462

SHAFT

Axle, 351.5mm L

1шт.

5

84388501

HEX SOC SCREW

Set Screw, M20 x 20mm L

2шт.

6

5183845

SEAL

Shaft

1шт.

7

84074393

O-RING,5mm Thk x 120mm ID, 70 Duro

1шт.

8

84074713

SHIM,0.5mm Thk

1шт.

9

84074712

SHIM,130mm ID x 72.5mm OD x 0.2mm Thk

1шт.

10

84074711

SHIM,0.05mm Thk

1шт.

11

84074701

TAPERED BEARING,45mm ID x 80mm OD x 26mm W

2шт.

12

84449593

GEAR,18T

Driving, 18T

1шт.

13

150006

DRAIN PLUG,M24 x 1.5

Fill

1шт.

14

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

Washer

2шт.

15

84074543

SET SCREW,Hex Soc, M16 x 30

3шт.

16

84406656

HOUSING

Inner Shell

1шт.

17

84397896

DOWEL

16mm OD x 50mm L, M8 Internal Thread

2шт.

18

84448749

COVER

Center Ring

1шт.

19

84448750

LOCKING PLATE

Clip

1шт.

20

84448751

LOCKING PLATE

Notched

1шт.

21

84818180

LOCK NUT,M90 x 2

1шт.

22

84074719

TAPERED BEARING,90mm ID x 145mm OD x 35mm W

1шт.

23

84071596

PLASTIC PLUG,M31 x 19mm

Sight, Lower

2шт.

24

336897

PLUG,M24 x 1.5

1шт.

25

84449172

SNAP RING,M92

1шт.

26

84449597

LOCKING PLATE

97.6mm ID x126mm OD

1шт.

27

84449598

LOCK NUT,M100 x 2

1шт.

28

84449190

TAPERED BEARING,100mm ID x 145mm OD x 24mm W

2шт.

29

84806528

GEAR,72T

72T/33T

1шт.

30

84449173

SNAP RING,M199.5, Int.

1шт.

31

84806529

GEAR

33T

1шт.

32

84074395

SNAP RING,M123.6

1шт.

33

84449594

RETAINER

Carrier Planet

1шт.

34

84074023

SHIM,51.5mm ID x 80mm OD x 1mm Thk

6шт.

35

84074703

NEEDLE,8mm x 42mm

69шт.

36

84074702

PLANETARY GEAR,21T

21T

3шт.

37

84072219

PIN,50.5mm OD x 110.2mm L

3шт.

38

84074400

O-RING,4mm Thk x 500mm ID, 70 Duro

2шт.

39

84074723

SPLINED RING,75T

75T

1шт.

40

84074399

PLUG

M45 x 1.5, Tapered

1шт.

41

84074720

TAPERED BEARING,140mm ID x 210mm OD x 45mm W

1шт.

42

84449197

FLANGE

Housing, Bearing

1шт.

43

84439102

SEALING WASHER,10mm ID x 16mm OD x 1.5mm Thk

2шт.

44

87375317

SHIM,4.6mm Thk

1шт.

45

87357938

SHIM,4.65mm Thk

1шт.

46

87357939

SHIM,4.75mm Thk

1шт.

47

87380319

SHIM,4.85mm Thk

1шт.

48

87380320

SHIM,4.9mm Thk

1шт.

49

87358151

SHIM KIT

Incl 44 - 48

1шт.

50

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

51

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

52

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

53

370008

SNAP RING,M50, Ext

3шт.

54

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

12шт.

55

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

12шт.

56

9832307

PLUG,Hex, M10 x 1 x 14mm

2шт.
