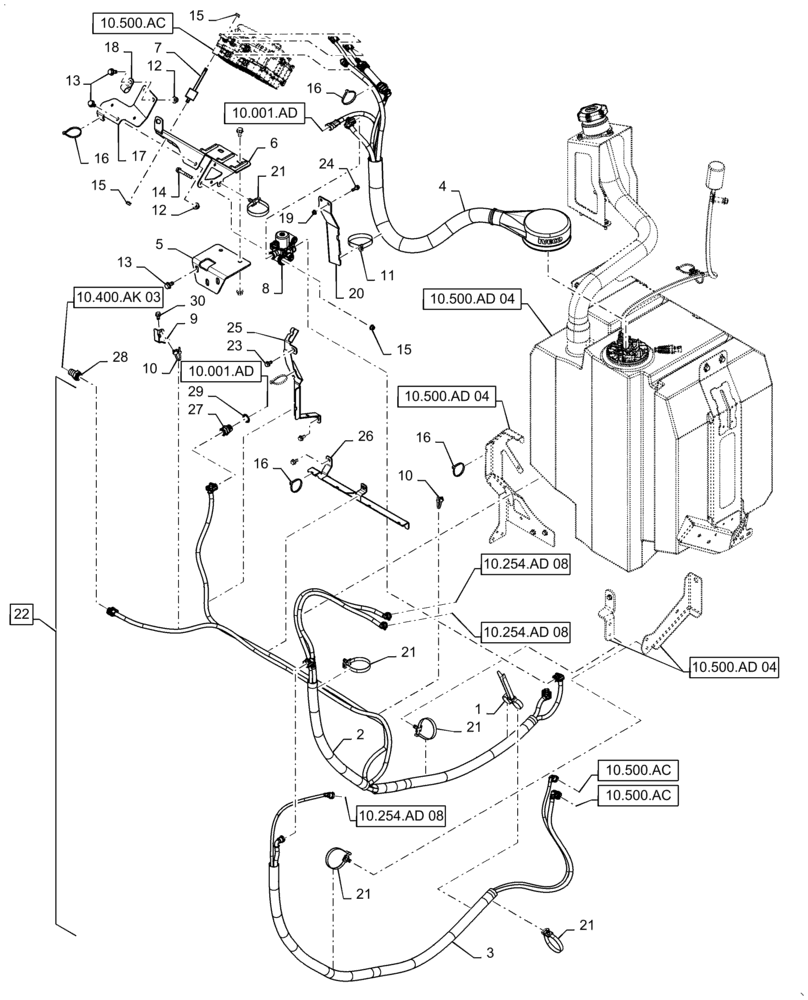

Запчасти Case IH 9240 (10.500.AD[02]) - DEF LINES, DEF TANK (10) - ENGINE

1

84386243

CLAMP,489mm L

2шт.

2

47584212

HOSE

DEF/AdBlue Supply, Dosing Module to Heater

1шт.

3

47584211

HOSE

DEF/AdBlue Supply, Dosing Module to Supply Module

1шт.

4

47693412

HOSE

DEF/AdBlue Supply

1шт.

5

47711068

BRACKET

Lower, ECU Mounting

1шт.

6

47711073

BRACKET

Upper, ECU Mounting

1шт.

7

47707670

DAMPER

ECU

3шт.

8

84483089

HEATER,12V

Valve

1шт.

9

47707392

BRACKET

Rear, Supply Tube Support

1шт.

10

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

2шт.

11

84266050

CABLE TIE,384mm L, Polyamide

Strap

2шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.

13

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

9шт.

14

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

3шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

9шт.

16

86566989

CABLE TIE,208mm L

15шт.

17

47537350

BRACKET

Upper, Harness Support

1шт.

18

87530629

CLAMP,20.6mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

19

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

20

47499053

BRACKET

Lower, Harness Support

1шт.

21

84266055

PLASTIC

Wire Tie Base

9шт.

22

47584210

HOSE

DEF/AdBlue Supply, Incl 1 - 3, 21

1шт.

23

87021006

BOLT,M10 x 26.4mm, Cl 10.9

1шт.

24

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

25

47450005

BRACKET

Upper, Supply Tube Support

1шт.

25

47499048

BRACKET

Upper, Supply Tube Support

1шт.

26

47450023

BRACKET

Lower, Supply Tube Support

1шт.

26

47499050

BRACKET

Lower, Supply Tube Support

1шт.

27

47442847

ADAPTER,M22 x 1.5 x 21.5mm OD

1шт.

28

87270102

FITTING,1/2" NPTF to Quick Connect

1шт.

29

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

30

87681207

BOLT,M8 x 24.1mm, Cl 10.9

5шт.
