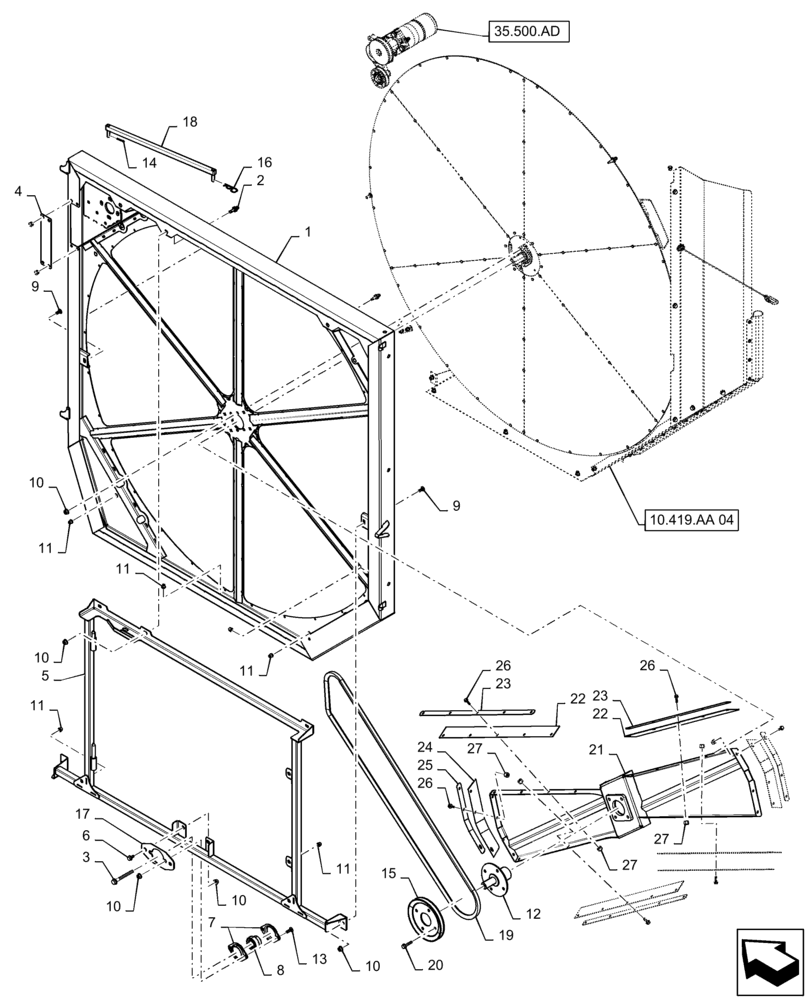

Запчасти Case IH 9240 (10.419.AA[03]) - SCREEN, AIR INTAKE (10) - ENGINE

1

47499670

DOOR

Air Screen, Fixed

1шт.

2

84572087

RIVET,17.28mm OD x 48.8mm L

3шт.

3

87695408

BOLT,M10 x 1.5 x 100.4mm OAL, Cl 10.9

1шт.

4

47705914

BRACKET

Support Gusset

1шт.

5

47629135

FRAME

Air Screen

1шт.

6

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

7

47700272

FLANGE

52mm ID Bearing Housing

2шт.

8

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

9

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

15шт.

11

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

12шт.

12

47704249

COLLAR

Block Off

1шт.

13

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

14

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

15

47631682

PULLEY,52mm ID x 167.1mm OD x 12.7mm W

Air Screen

1шт.

16

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

1шт.

17

47704264

BRACKET

SAS Bearing

1шт.

18

47359080

LINK CONROD

486mm L

1шт.

19

47635791

BELT

2260.6mm Nominal Length, Air Screen

1шт.

20

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

4шт.

21

47710485

ARM

SAS Blockoff

1шт.

22

47710888

SEAL

49.5mm W x 650mm L, Straight Ends

4шт.

23

47689758

STRAP

650mm L, Seal Retainer

4шт.

24

47710887

SEAL

44.2mm W x 296.3mm L, Angled Ends

2шт.

25

47689761

STRAP

272.3mm L, Seal Retainer

2шт.

26

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

26шт.

27

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

26шт.
