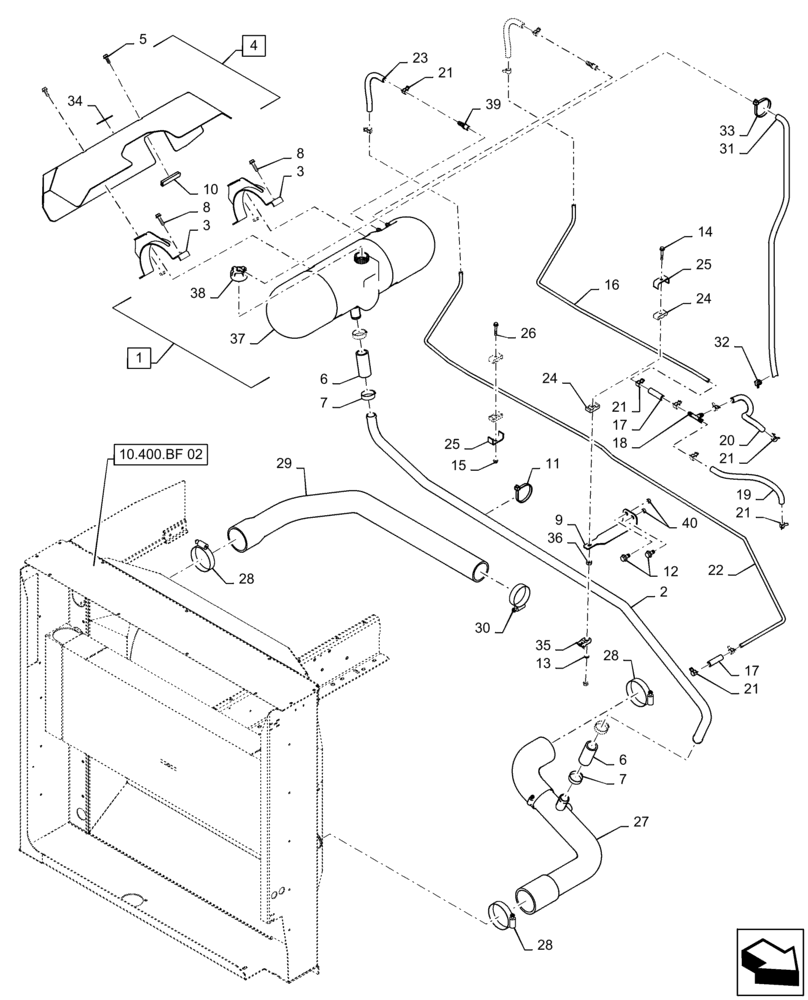

Запчасти Case IH 9240 (10.400.AK[03]) - COOLING SYSTEM LINE, COOLANT EXPANSION RESERVOIR (10) - ENGINE

1

87670349

RESERVOIR, COOLANT E

Deaeration Bottle, Incl 37 - 39

1шт.

2

47502686

TUBE

1460.4mm L, Drain

1шт.

3

47590698

CLAMP

Support, Half Moon

2шт.

4

47705976

SHIELD

Water Reservoir, Incl 34

1шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

6

87551123

HOSE,28.6mm ID x 80mm OAL, SAE 20R4

2шт.

7

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

4шт.

8

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.

9

47766380

SUPPORT

Bracket, 139.9mm L

1шт.

10

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

Edge Trim

1шт.

11

529070

CABLE TIE,368.3mm L

1шт.

12

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

14

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

1шт.

15

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

1шт.

16

47705162

TUBE

Deaeration, 692.2mm L

1шт.

17

47548019

HOSE

Intake Air Deaeration, 55mm L

2шт.

18

248632A1

TEE,3/8" Hose Barb x 3/8" Hose Barb x 3/8" Hose Barb

1шт.

19

47705921

HOSE

Intake Air Deaeration, 310mm L

1шт.

20

47705919

HOSE

Intake Air Deaeration, 280mm L

1шт.

21

87436932

CLAMP,13.9mm - 15.5mm, Spring

12шт.

22

47705163

TUBE

Deaeration, 1565.4mm L

1шт.

23

47705922

HOSE

Intake Air Deaeration, 205mm L

1шт.

24

430357

CLAMP

Dual Tube, 42mm L x 20mm W

4шт.

25

431941

SUPPORT

49mm L, U - Shaped

2шт.

26

87670759

FLANGE BOLT,M6 x 1.0 x 46.6mm, Cl 10.9

1шт.

27

47502313

TUBE

Radiator, 28.6mm OD

1шт.

28

86633353

HOSE CLAMP,70mm - 92mm

3шт.

29

47502308

HOSE

Reducer, 76mm ID - 60mm ID

1шт.

30

87778863

CLAMP,57mm ID - 79mm ID x 16mm W, Lined

1шт.

31

47599370

HOSE

Overflow, 5600mm L

1шт.

32

82033028

CABLE TIE,170mm L

6шт.

33

86566989

CABLE TIE,208mm L

1шт.

34

47757332

DECAL

Coolant - Actifull OT

1шт.

35

84485207

BASE

M12, Plastic

1шт.

36

9706755

NUT,M6, Cl 8

2шт.

37

87670348

BOTTLE

Deaeration

1шт.

38

82022744

CAP,Female, Vented, Non-Locking

52mm OD

1шт.

39

87742820

FITTING,1/4" Barb x 3/8" Pipe

Barb to Male Pipe

1шт.

40

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.
