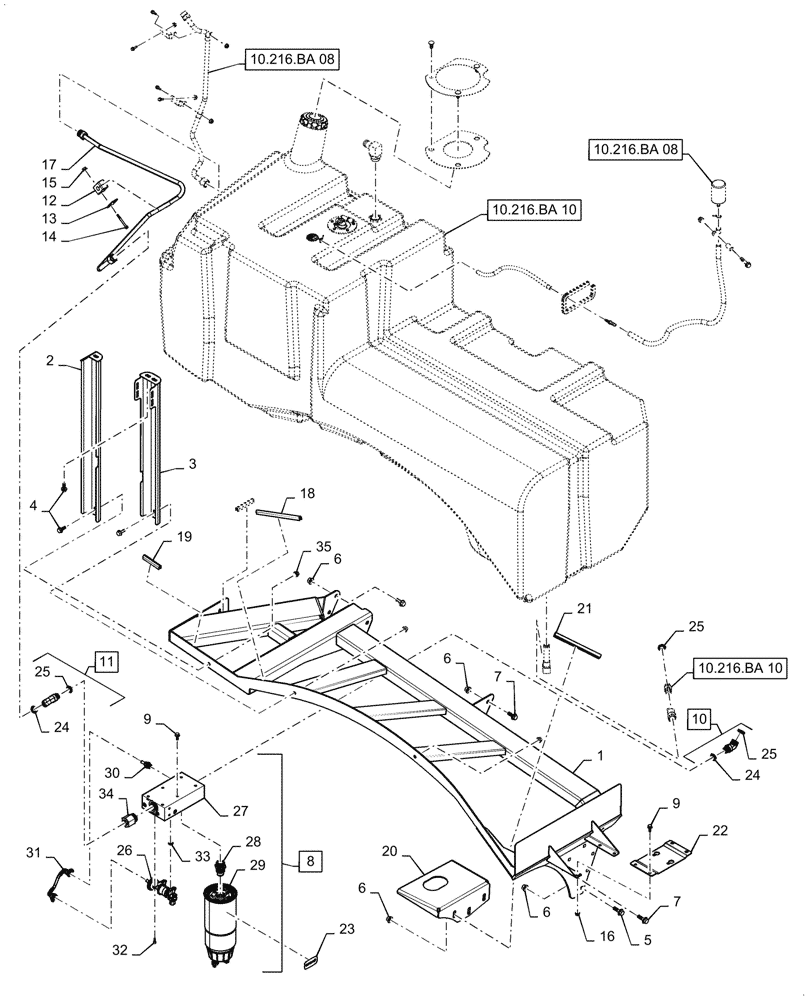

Запчасти Case IH 9240 (10.216.BA[09]) - FUEL LINE, FUEL FILTER (10) - ENGINE

1

47639599

SUPPORT

Fuel Tank

1шт.

2

84156717

SUPPORT

Tank Rear

1шт.

3

84162005

SUPPORT

Tank Middle

1шт.

4

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

5

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

9шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

7

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

9шт.

8

47552002

FUEL PUMP

Filter Assy, Incl 26 - 34

1шт.

9

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

10

86639053

ELBOW,45 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 24, 25

1шт.

11

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 24, 25

1шт.

12

117395A1

COLLAR CLAMP,M15.87mm ID, 50mm x 35mm x 30mm

1шт.

13

86900727

COVER

Plate

1шт.

14

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

15

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

16

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

17

47698014

TUBE

Fuel, Pump to Tube

1шт.

18

121574A1

SEAL PROTECTION

Edge Trim

5шт.

19

228634A1

PROTECTION STRIP

Edge Trim

3шт.

20

47600161

BRACKET

Sump

1шт.

21

448606A1

SEAL ASSY.,12.7mm W x 203.2mm OAL x 17mm Thk

1шт.

22

47742616

SUPPORT

Fuel Manifold

1шт.

23

87679098

DECAL,37mm x 70mm

CIH Filter

1шт.

24

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

25

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

26

47635952

FUEL PUMP

Filter

1шт.

27

47638747

MANIFOLD

Fuel

1шт.

28

47545596

ADAPTER,1-1/4"-12 RH x 1-1/4"-12 LH

Fuel Filter

1шт.

29

47635958

FUEL FILTER

Pump

1шт.

30

47638916

COUPLING,M16 x 1.5 ORB x 3/8" Quick Connect

1шт.

31

47638906

HOSE

Fuel, Pump to Manifold

1шт.

32

86512134

HEX SOC SCREW,M6 x 16mm, Cl 12.9

4шт.

33

47643473

O-RING,12.37mm ID x 17.6mm OD x 2.62mm Thk

1шт.

34

47773394

REDUCER

Manifold

1шт.

35

86050279

FLANGE NUT,M10 x 1.5, Cl 10

6шт.
