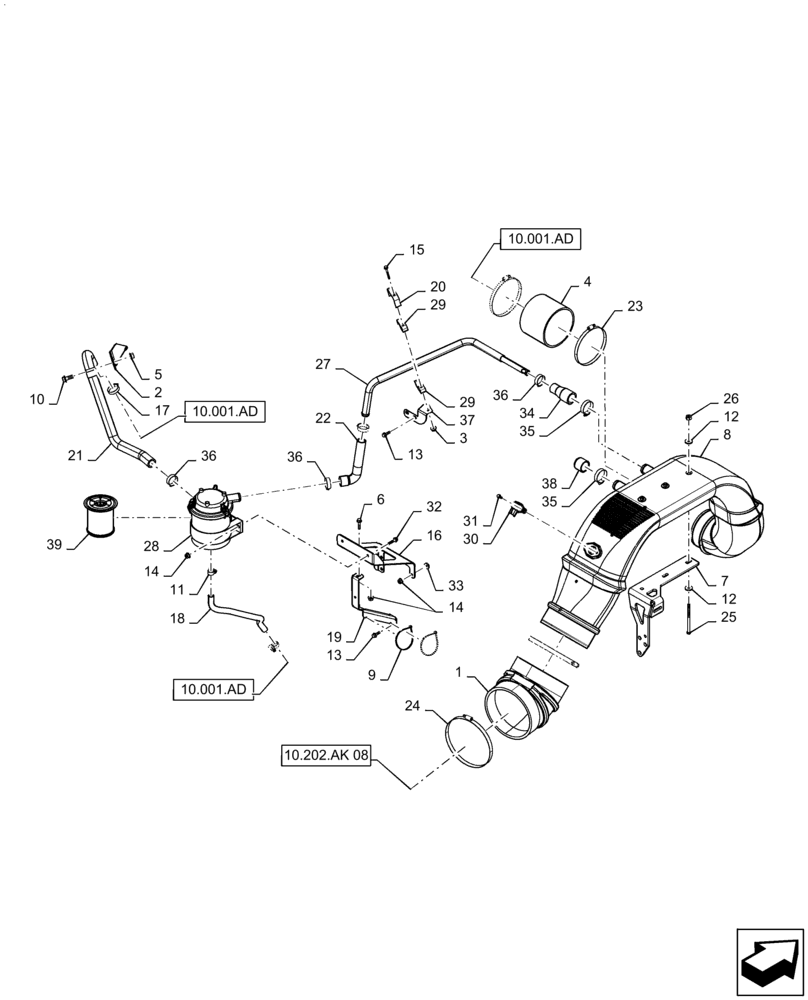

Запчасти Case IH 9240 (10.202.AK[07]) - AIR INTAKE (10) - ENGINE

1

47487470

ELBOW,203mm ID, 45 Degree

Air Intake

1шт.

2

47555990

SUPPORT

Bracket, Intake Tube

1шт.

3

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

4

47487464

RING

152mm ID x 125mm L

1шт.

5

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

7

47513032

SUPPORT

Bracket, Crossover Tube, Intake

1шт.

8

47466777

AIR DUCT

Tube, 152.4mm OD

1шт.

9

86566990

CABLE TIE,292mm OAL x 4.8mm W

2шт.

10

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

4шт.

11

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

2шт.

12

140041

WASHER,M8 x 28mm OD x 3mm Thk

6шт.

13

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

15

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

1шт.

16

47676453

SUPPORT

Bracket, CCV Filter Housing

1шт.

17

86639002

CLAMP,34.9mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

18

47573095

HOSE

Drain, CCV Filter, 16mm ID x 23.8mm OD x 481mm L

1шт.

19

47676456

SUPPORT

Bracket

1шт.

20

743318

SUPPORT

Clamp

1шт.

21

47555714

HOSE

Engine to CCV Filter, 25.4mm ID x 30.17mm OD

1шт.

22

47550795

ELBOW,Reducer, 30mm ID to 25mm ID

Air Intake

1шт.

23

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

24

214-32144

HOSE CLAMP,8-1/4" - 9-1/8", HD Worm, W/ Liner

2шт.

25

381522

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

3шт.

26

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

27

47551522

TUBE

Air Intake, 23.9mm ID x 25.4mm OD

1шт.

28

84326459

FILTER ASSY

CCV, Housing

1шт.

29

457546

CLAMP

Intake Tube

2шт.

30

87482355

SENSOR

Intake Air Temperature

1шт.

31

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

32

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

2шт.

33

86592699

WASHER,8.4mm ID x 23mm OD x 4mm Thk

3шт.

34

84073303

HOSE,25mm ID - 38mm ID x 100mm OAL

1шт.

35

382528

HOSE CLAMP,35mm ID - 52mm ID x 13mm W, Unlined

2шт.

36

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

5шт.

37

47702754

BRACKET

Air Intake Support

1шт.

38

87717199

CUP COVER

Intake Hose

1шт.

39

84376809

ELEMENT

Filter, CCV

1шт.
