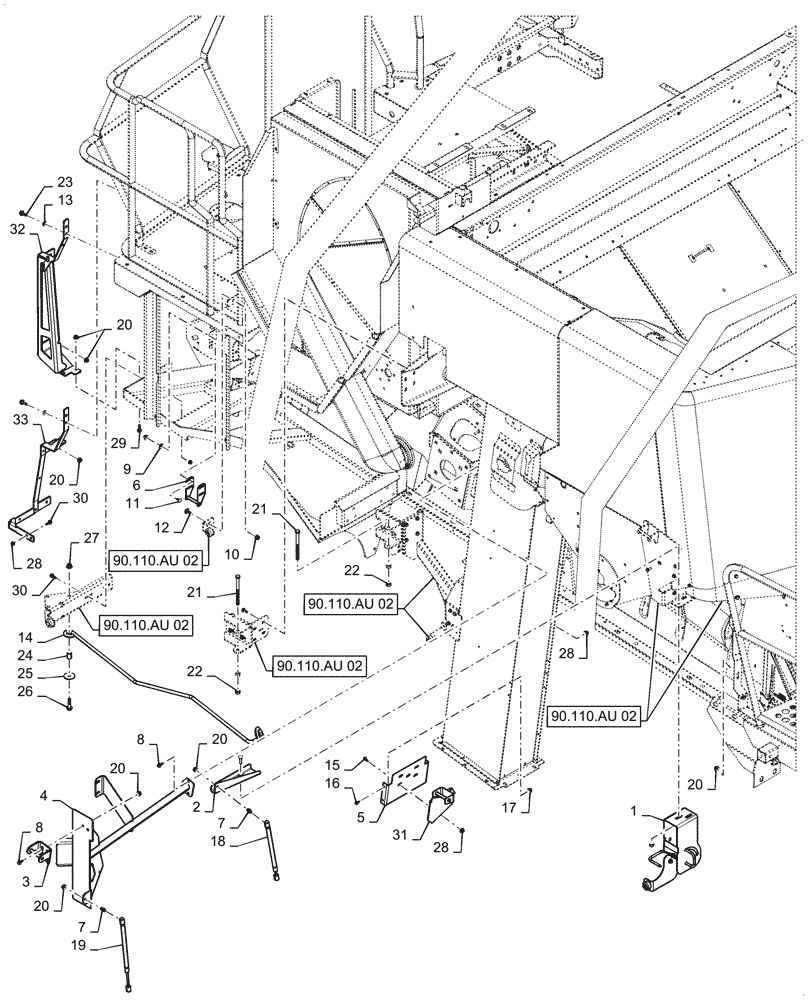

Запчасти Case IH 9240 (90.110.AU[01]) - TRIM, BODY, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87711600

BRACKET

Stop Lock

1шт.

2

84337451

BRACKET

Bumper

1шт.

3

87728296

BRACKET

Latch

1шт.

4

47693306

SUPPORT

Trim Panel

1шт.

5

87475013

BRACKET

Clean Grain Elevator

1шт.

6

87734815

LATCH ASSY.

Panel

1шт.

7

83952214

BALL STUD,M8 x 29.5mm OAL

2шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

11

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

12

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

14

47375281

ROD

Door Prop

1шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

16

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

4шт.

17

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

18

87728305

STRUT

Gas Spring

1шт.

19

87108532

STRUT

Gas Spring

1шт.

20

87681210

FLANGE NUT,M8 x 1.25, Cl 10

18шт.

21

385427

BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

2шт.

22

9706685

NUT,M12 x 1.75, Cl 8

4шт.

23

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

24

87036416

SPACER,13.51mm ID x 19.05mm OD x 26.97mm L

1шт.

25

87026355

WASHER,12.8mm ID x 50mm OD x 3mm Thk

1шт.

26

87670764

BOLT,M12 x 61.8mm, Cl 10.9

1шт.

27

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

28

86507066

FLANGE NUT,M8 x 1.25, Cl 10

9шт.

29

87030775

BOLT,M8 x 38.1mm, Cl 10.9

2шт.

30

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

31

87494170

BRACKET

Latch Striker

1шт.

32

47430222

BRACKET

Outer Panel Support

1шт.

33

84183857

BRACKET

Right Inner Trim Strap

1шт.
