Запчасти Case IH 9240 (90.105.BH[03]) - PANEL, BODY, REAR, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

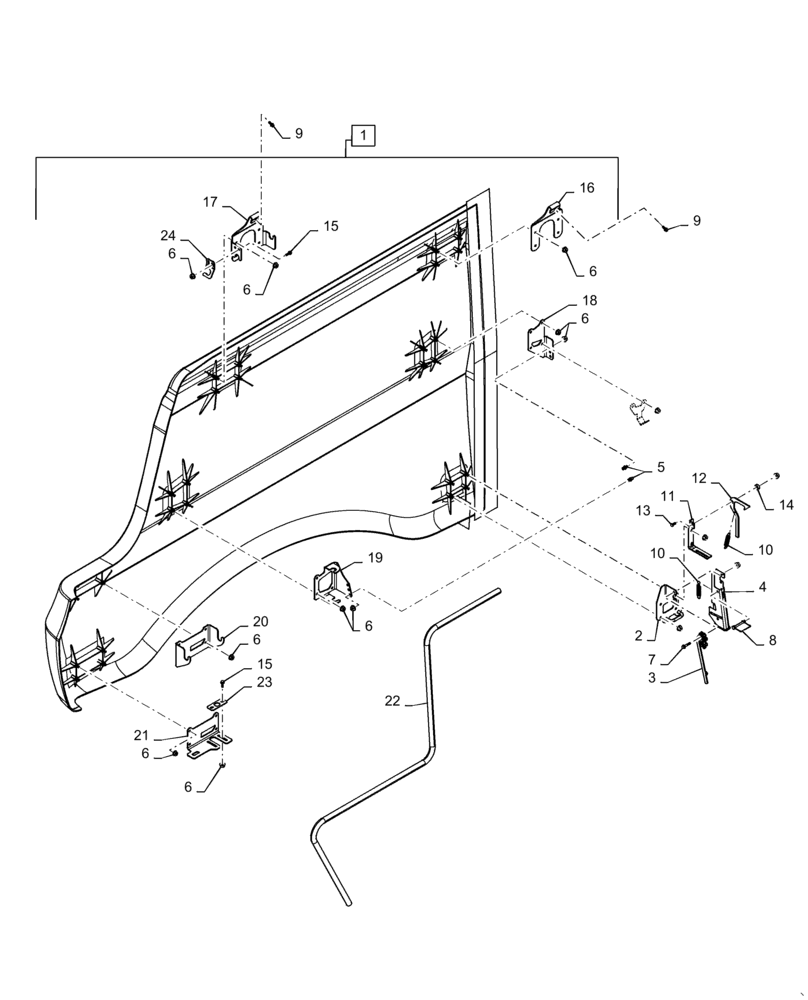

Схема запчастей Case IH 9240 - (90.105.BH[03]) - PANEL, BODY, REAR, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
10
12
5
6
9
19
20
6
15
11
1
4
17
6
6
18
10
6
13
6
3
7
14
9
23
16
21
24
22
2
15
6
8

Артикул

Название

Примечание

Количество

1

87751018

PANEL ASSY.

LH, Rear, Incl 6, 15 - 24

1шт.

Incl Qty 26 of Ref. 6

1шт.

2

87711622

BRACKET

Hinge, Lower, Front

1шт.

3

87701158

LATCH ASSY.

Securing

1шт.

4

87711617

BRACKET

Latch, Lower Rear, Support

1шт.

5

83952214

BALL STUD,M8 x 29.5mm OAL

2шт.

6

86619801

FLANGE NUT,M8 x 1.25, Cl 8

37шт.

7

87698834

BOLT,M8 x 48.1mm, Cl 10.9

2шт.

8

647695

PIN,7.94mm OD

Hitch

1шт.

9

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

2шт.

10

87109697

SPRING

Extension, 69.9mm L

2шт.

15

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

16

87654736

BRACKET

LH, Upper, Hinge, Front

1шт.

17

87470677

BRACKET

LH, Upper, Hinge, Rear

1шт.

18

87661469

BRACKET

Gas Spring Mount, Rear

1шт.

19

87470680

BRACKET

Gas Spring Mount, Upper

1шт.

20

87470683

BRACKET

Door Stiffener Support

1шт.

21

87649312

BRACKET

Door Lock

1шт.

22

87654332

BRACKET

Door Stiffener

1шт.

23

87649314

BRACKET

Door Lock Plate

1шт.

24

87661473

BRACKET

Tube Retainer

1шт.

Выбрано товаров: 21
