Запчасти Case IH 9240 (55.510.AF[05]) - VAR - 425357, 425358 - CAB MAIN WIRE HARNESS, CONTINUED (55) - ELECTRICAL SYSTEMS

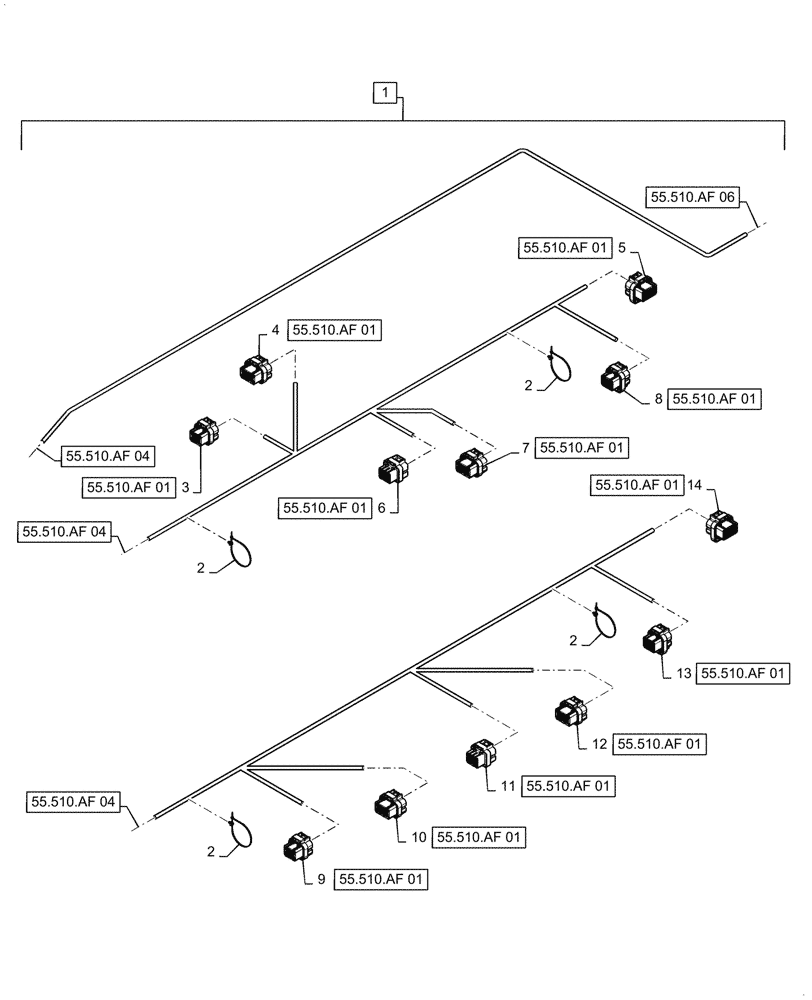

Схема запчастей Case IH 9240 - (55.510.AF[05]) - VAR - 425357, 425358 - CAB MAIN WIRE HARNESS, CONTINUED (55) - ELECTRICAL SYSTEMS
55.510.af 06
10
7
4
3
11
2
13
2
5
8
2
1
6
14
9
12
2
55.510.af 04
55.510.af 04
55.510.af 04
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01

Артикул

Название

Примечание

Количество

1

48000768

WIRE HARNESS

Cab Main, Incl 2 - 14

1шт.

2

87741307

SECURING STRAP

Fir Tree

4шт.

3

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM2 CN1A (Top), X-016A

1шт.

3

82017049

PLUG

UCM2 CN1A (Top), X-016A

10шт.

3

82017048

CABLE TERMINAL

UCM2 CN1A (Top), X-016A

15шт.

4

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

UCM2 CN1B (Top), X-016B

1шт.

4

82017049

PLUG

UCM2 CN1B (Top), X-016B

18шт.

4

82017048

CABLE TERMINAL

UCM2 CN1B (Top), X-016B

11шт.

4

87410950

ELEC. TERMINAL PIN,Female

UCM2 CN1B (Top), X-016B

5шт.

5

84130760

ELEC CONNECTOR,Female, 34 Cavities

UCM2 CN3B (Top), X-018B

1шт.

5

82017049

PLUG

UCM2 CN3B (Top), X-018B

11шт.

5

82017048

CABLE TERMINAL

UCM2 CN3B (Top), X-018B

15шт.

5

87410950

ELEC. TERMINAL PIN,Female

UCM2 CN3B (Top), X-018B

8шт.

6

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM2 CN2A (Top), X-017A

1шт.

6

82017049

PLUG

UCM2 CN2A (Top), X-017A

14шт.

6

82017048

CABLE TERMINAL

UCM2 CN2A (Top), X-017A

8шт.

6

87410950

ELEC. TERMINAL PIN,Female

UCM2 CN2A (Top), X-017A

4шт.

7

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

UCM2 CN2B (Top), X-017B

1шт.

7

82017049

PLUG

UCM2 CN2B (Top), X-017B

15шт.

7

87410950

ELEC. TERMINAL PIN,Female

UCM2 CN2B (Top), X-017B

6шт.

7

82017048

CABLE TERMINAL

UCM2 CN2B (Top), X-017B

13шт.

8

84130757

ELEC CONNECTOR,Female, 26 Cavities

UCM2 CN3A (Top), X-018A

1шт.

8

82017049

PLUG

UCM2 CN3A (Top), X-018A

12шт.

8

82017048

CABLE TERMINAL

UCM2 CN3A (Top), X-018A

8шт.

8

87410950

ELEC. TERMINAL PIN,Female

UCM2 CN3A (Top), X-018A

6шт.

9

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM1 CN1A (Bottom), X-012A

1шт.

9

82017049

PLUG

UCM1 CN1A (Bottom), X-012A

9шт.

9

82017048

CABLE TERMINAL

UCM1 CN1A (Bottom), X-012A

17шт.

10

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

UCM1 CN1B (Bottom), X-012B

1шт.

10

82017049

PLUG

UCM1 CN1B (Bottom), X-012B

16шт.

10

87410950

ELEC. TERMINAL PIN,Female

UCM1 CN1B (Bottom), X-012B

6шт.

10

82017048

CABLE TERMINAL

UCM1 CN1B (Bottom), X-012B

12шт.

11

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM1 CN2A (Bottom), X-013A

1шт.

11

82017049

PLUG

UCM1 CN2A (Bottom), X-013A

4шт.

11

82017048

CABLE TERMINAL

UCM1 CN2A (Bottom), X-013A

15шт.

11

87410950

ELEC. TERMINAL PIN,Female

UCM1 CN2A (Bottom), X-013A

7шт.

12

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

UCM1 CN2B (Bottom), X-013B

1шт.

12

82017049

PLUG

UCM1 CN2B (Bottom), X-013B

8шт.

12

82017048

CABLE TERMINAL

UCM1 CN2B (Bottom), X-013B

19шт.

12

87410950

ELEC. TERMINAL PIN,Female

UCM1 CN2B (Bottom), X-013B

7шт.

13

84130757

ELEC CONNECTOR,Female, 26 Cavities

UCM1 CN3A (Bottom), X-014A

1шт.

13

82017049

PLUG

UCM1 CN3A (Bottom), X-014A

9шт.

13

82017048

CABLE TERMINAL

UCM1 CN3A (Bottom), X-014A

9шт.

13

87410950

ELEC. TERMINAL PIN,Female

UCM1 CN3A (Bottom), X-014A

8шт.

14

84130760

ELEC CONNECTOR,Female, 34 Cavities

UCM1 CN3B (Bottom), X-014B

1шт.

14

82017049

PLUG

UCM1 CN3B (Bottom), X-014B

10шт.

14

82017048

CABLE TERMINAL

UCM1 CN3B (Bottom), X-014B

18шт.

14

87410950

ELEC. TERMINAL PIN,Female

UCM1 CN3B (Bottom), X-014B

6шт.
