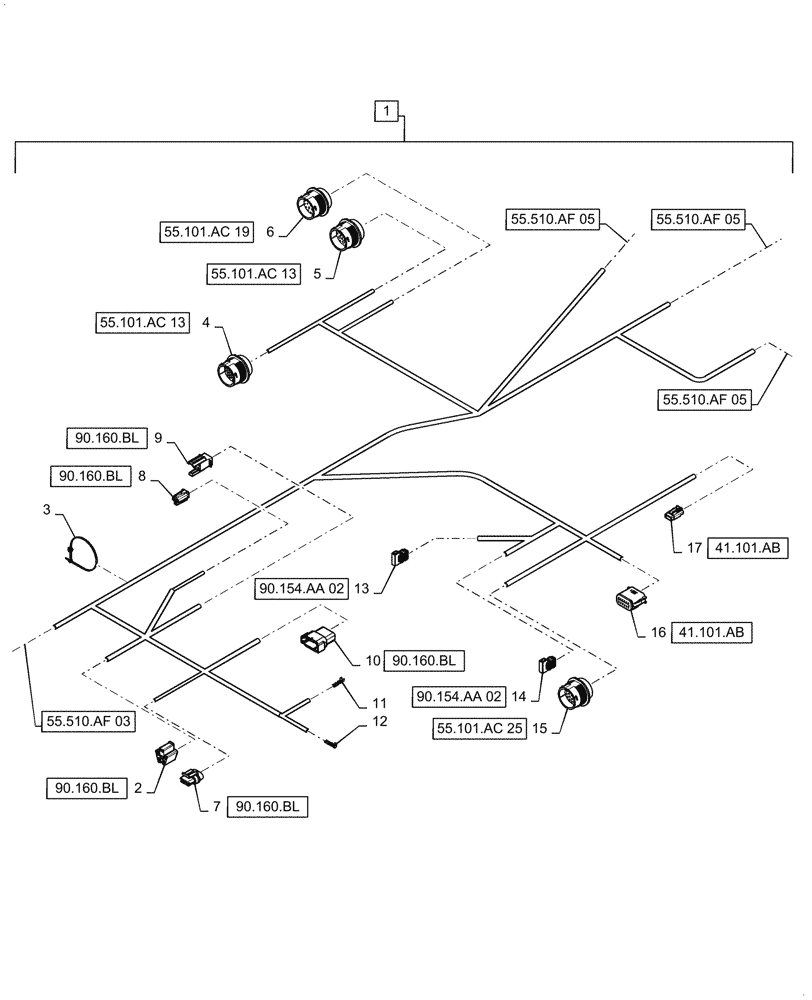

Запчасти Case IH 9240 (55.510.AF[04]) - VAR - 425357, 425358 - CAB MAIN WIRE HARNESS, CONTINUED (55) - ELECTRICAL SYSTEMS

1

48000768

WIRE HARNESS

Cab Main, Incl 2 - 17

1шт.

2

87693713

ELEC CONNECTOR,Female, 6 Cavities

Key Switch, X-068

1шт.

2

87697660

TERMINAL

Key Switch, X-068

2шт.

2

87709400

ELEC. TERMINAL PIN

Key Switch, X-068

1шт.

3

47647146

CLIP

Tie Strap

1шт.

4

87700162

ELEC CONNECTOR

Right Front Harness, X-008

1шт.

4

84068583

PLUG,12 - 16 Ga, White

Right Front Harness, X-008

1шт.

4

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Right Front Harness, X-008

29шт.

4

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Right Front Harness, X-008

1шт.

5

87696098

ELEC CONNECTOR

Right Front Harness, X-010

1шт.

5

84068583

PLUG,12 - 16 Ga, White

Right Front Harness, X-010

2шт.

5

87695623

ELEC. TERMINAL PIN

Right Front Harness, X-010

13шт.

5

87704524

ELEC CONNECTOR,Pin, Size 12

Right Front Harness, X-010

4шт.

6

87696087

ELEC CONNECTOR

Left Front Harness, X-011

1шт.

6

84068583

PLUG,12 - 16 Ga, White

Left Front Harness, X-011

2шт.

6

87695623

ELEC. TERMINAL PIN

Left Front Harness, X-011

15шт.

6

87704524

ELEC CONNECTOR,Pin, Size 12

Left Front Harness, X-011

4шт.

7

87693710

ELEC CONNECTOR,Female 2 Cavities

2.4K Resistor, X-319

1шт.

7

47405859

RESISTOR

2.4K Resistor, X-319

1шт.

7

87688863

CAP

2.4K Resistor, X-319

1шт.

7

87688848

TERMINAL

2.4K Resistor, X-319

2шт.

8

84398827

WIRE CONNECTOR

Cigar Lighter Outlet, X-069

1шт.

8

84178477

RETAINER

Cigar Lighter Outlet, X-069

1шт.

8

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Cigar Lighter Outlet, X-069

2шт.

9

82944116

ELEC CONNECTOR

Implement Socket Jumper, X-070

1шт.

9

87695516

Implement Socket Jumper, X-070

ELEC. TERMINAL PIN

3шт.

10

87700155

ELEC CONNECTOR,Female, 12 Cavities

Nav Diagnostic, X-521

1шт.

10

84807680

PLUG

Nav Diagnostic, X-521

9шт.

10

87705201

WEDGE

Nav Diagnostic, X-521

1шт.

10

87696141

TERMINAL

Nav Diagnostic, X-521

3шт.

11

84165997

TERMINAL

Grid Heater Indicator, X-318A

1шт.

12

84165997

TERMINAL

Grid Heater Indicator, X-318B

1шт.

13

87475532

ELEC CONNECTOR

LH Door Switch, X-147

1шт.

13

87694684

ELEC CONNECTOR

LH Door Switch, X-147

1шт.

14

87475532

ELEC CONNECTOR

LH Door Switch, X-137

1шт.

14

87694684

ELEC CONNECTOR

LH Door Switch, X-137

1шт.

15

87700159

ELEC CONNECTOR

Front Platform Harness, X-031

1шт.

15

84068583

PLUG,12 - 16 Ga, White

Front Platform Harness, X-031

2шт.

15

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Front Platform Harness, X-031

18шт.

15

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Front Platform Harness, X-031

3шт.

16

87696075

ELEC CONNECTOR

Steering Column Harness, X-067

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Steering Column Harness, X-067

10шт.

16

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Steering Column Harness, X-067

2шт.

17

87696551

CONTACT HOUSING,Female, 3 Pole

Steering Wheel Position, X-464

1шт.

17

87704042

TERMINAL

Steering Wheel Position, X-464

3шт.
