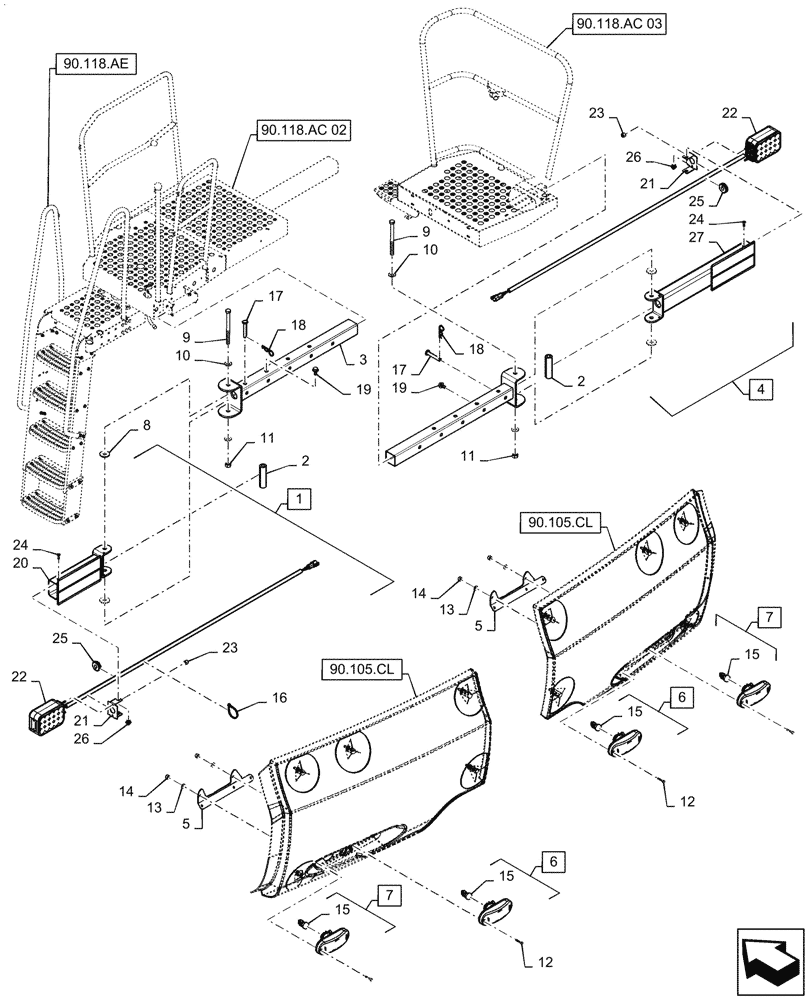

Запчасти Case IH 9240 (55.404.CB[01]) - VAR - 425165, 425167 - LIGHT, MARKER (55) - ELECTRICAL SYSTEMS

1

47983733

TURN/SMV LAMP

LH, Incl 20 - 26

1шт.

2

87105383

SPACER,12.7mm ID x 25.4mm OD x 96.4mm L

2шт.

3

84421008

SUPPORT

Lamp

2шт.

4

47983734

TURN/SMV LAMP

RH, Incl 21 - 27

1шт.

5

84481134

BRACKET

Tail Light

2шт.

6

87627854

LIGHT ASSY.,12V, 27W, Red

Tail/Stop, Incl 15

2шт.

7

87629587

LIGHT ASSY.,12V, 27W, Amber

Turn/SMV, Incl 15

2шт.

8

86997936

WASHER,12.7mm ID x 38.1mm OD x 3.18mm Thk

4шт.

9

385427

BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

2шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

11

9706685

NUT,M12 x 1.75, Cl 8

2шт.

12

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

8шт.

13

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

8шт.

14

80043440

NUT,M5 x 0.8, Cl 8

8шт.

15

87106262

BULB

Tail/Turn Lamp

4шт.

16

86566989

CABLE TIE,208mm L

1шт.

17

87035064

CLEVIS PIN,12mm OD x 70mm L

2шт.

18

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

2шт.

19

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

20

48013438

ARM

Supporting W/ Decals

1шт.

21

48006865

BRACKET

Lamp Mount

2шт.

22

48006407

LAMP

Turn/SMV, LED

2шт.

23

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

4шт.

24

14441427

SCREW,Flat Csk Hd, M6 x 20mm, Cl 8.8

4шт.

25

87015294

GROMMET,1/2" ID x 1-1/2" OD x 0.438" Thk

2шт.

26

86610198

INSERT,M6 x 1

4шт.

27

48013439

ARM

Supporting W/ Decals

1шт.
