Запчасти Case IH 9240 (55.101.AC[20]) - STRAW HOOD FRONT WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

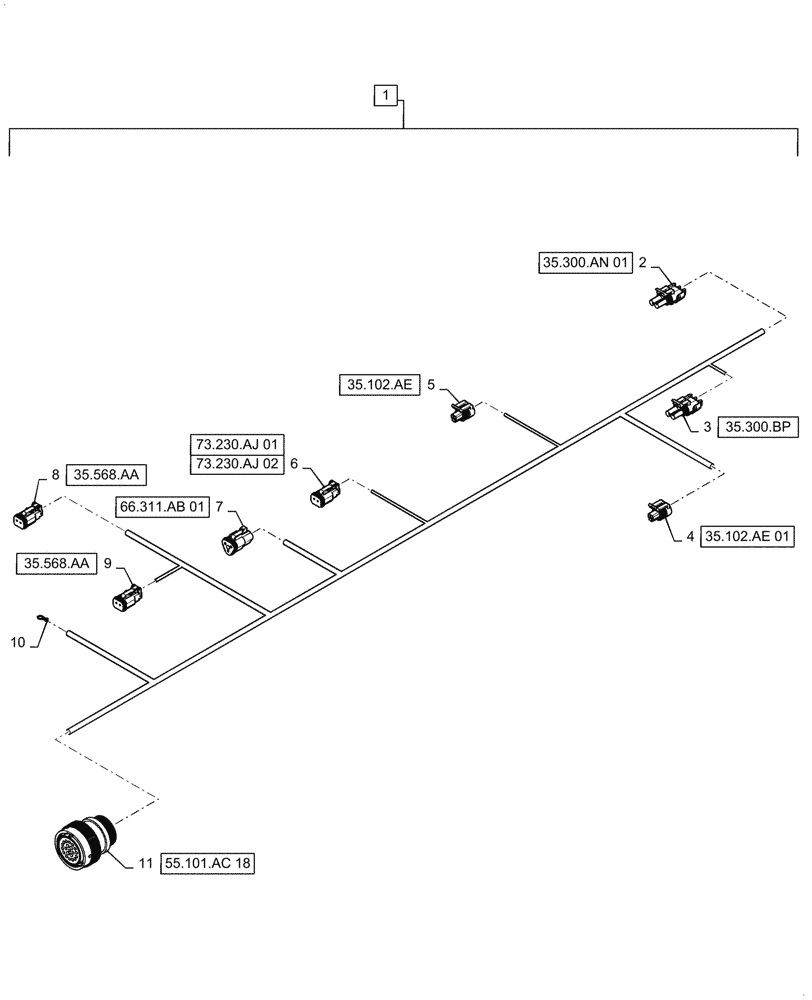

Схема запчастей Case IH 9240 - (55.101.AC[20]) - STRAW HOOD FRONT WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS
35.102.ae 01
7
3
9
2
1
6
8
4
10
11
5
35.300.bp
73.230.aj 02
35.300.an 01
35.568.aa
35.568.aa
55.101.ac 18
66.311.ab 01
73.230.aj 01
35.102.ae

Артикул

Название

Примечание

Количество

1

47501324

WIRE HARNESS

Front Straw Hood, Incl 2 - 11

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

PTO Filter Switch, X-238

1шт.

2

87680704

SEAL

PTO Filter Switch, X-238

1шт.

2

87692856

CABLE TERMINAL

PTO Filter Switch, X-238

2шт.

2

87680701

SEAL

PTO Filter Switch, X-238

2шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

Reservoir Filter Switch, X-239

1шт.

3

87680704

SEAL

Reservoir Filter Switch, X-239

1шт.

3

87692856

CABLE TERMINAL

Reservoir Filter Switch, X-239

2шт.

3

87680701

SEAL

Reservoir Filter Switch, X-239

2шт.

4

84078681

WIRE CONNECTOR,Female

PTO Lube Pressure, X-399

1шт.

4

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

PTO Lube Pressure, X-399

3шт.

5

84078681

WIRE CONNECTOR,Female

Low Control Pressure, X-098

1шт.

5

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Low Control Pressure, X-098

3шт.

6

87695909

ELEC CONNECTOR,Female, 2 Pole

Chopper RPM, X-411

1шт.

6

87712180

ELEC CONNECTOR

Chopper RPM, X-411

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Chopper RPM, X-411

2шт.

7

87695549

ELEC CONNECTOR,Female, 3 Cavities

Rotor RPM, X-177

1шт.

7

84058193

LOCKING TAB,Wedge Lock

Rotor RPM, X-177

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Rotor RPM, X-177

3шт.

8

87695909

ELEC CONNECTOR,Female, 2 Pole

Counter Knives Out, X-552

1шт.

8

84074638

LOCKING TAB,Locking Wedge, Green

Counter Knives Out, X-552

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Counter Knives Out, X-552

2шт.

9

87695909

ELEC CONNECTOR,Female, 2 Pole

Counter Knives In, X-551

1шт.

9

84074638

LOCKING TAB,Locking Wedge, Green

Counter Knives In, X-551

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Counter Knives In, X-551

2шт.

10

84127303

TERMINAL

Ground, X-944

1шт.

11

87704432

Expansion Harness, X-102

ELEC CONNECTOR

1шт.

11

87696197

NUT

Expansion Harness, X-102

1шт.

11

87696199

SEALING RING

Expansion Harness, X-102

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Expansion Harness, X-102

13шт.

Выбрано товаров: 30
