Запчасти Case IH 9240 (55.101.AC[14]) - RH MAIN FRAME WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

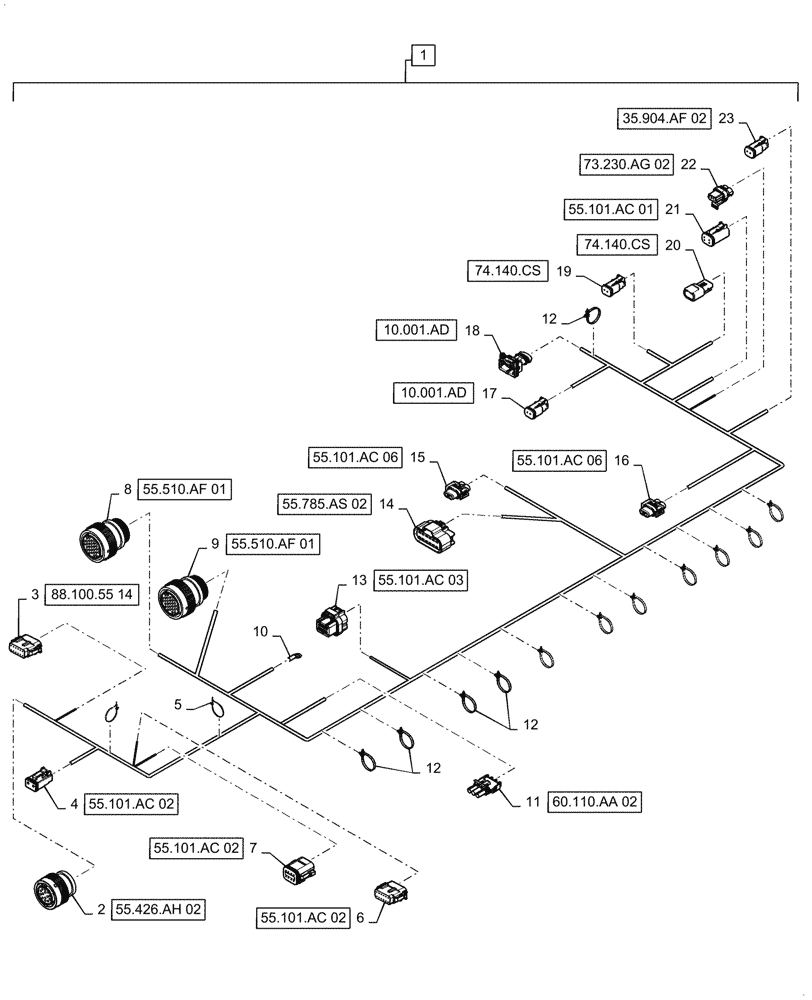

Схема запчастей Case IH 9240 - (55.101.AC[14]) - RH MAIN FRAME WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS
55.101.ac 01
20
4
6
7
3
12
10
9
16
22
5
23
21
18
19
8
12
15
13
2
12
17
14
11
1
60.110.aa 02
55.101.ac 02
35.904.af 02
55.101.ac 02
55.101.ac 02
10.001.ad
10.001.ad
55.101.ac 03
55.510.af 01
55.510.af 01
55.785.as 02
74.140.cs
74.140.cs
73.230.ag 02
55.101.ac 06
55.101.ac 06
88.100.55 14
55.426.ah 02

Артикул

Название

Примечание

Количество

1

47981844

WIRE HARNESS

RH Main Frame, Incl 2 - 23

1шт.

2

84284799

ELEC CONNECTOR

Grain Tank Harness, X-020

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Grain Tank Harness, X-020

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Grain Tank Harness, X-020

13шт.

3

87700156

CONTACT HOUSING,Female, 12 Pole

GPS Antenna, X-499

1шт.

3

84807680

PLUG

GPS Antenna, X-499

1шт.

3

87705198

WEDGE

GPS Antenna, X-499

1шт.

3

87704042

TERMINAL

GPS Antenna, X-499

11шт.

4

87711966

PLUG

BT Harness, X-105

1шт.

4

84391159

WIRE CONNECTOR

BT Harness, X-105

1шт.

4

87712180

ELEC CONNECTOR

BT Harness, X-105

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

BT Harness, X-105

2шт.

5

87741307

SECURING STRAP

Fir Tree

2шт.

6

87700156

CONTACT HOUSING,Female, 12 Pole

Autoguidance Harness, X-498

1шт.

6

84807680

PLUG

Autoguidance Harness, X-498

1шт.

6

87705198

WEDGE

Autoguidance Harness, X-498

1шт.

6

87704042

TERMINAL

Autoguidance Harness, X-498

10шт.

7

87695693

ELEC CONNECTOR

Autoguidance Harness, X-520

1шт.

7

84068583

PLUG,12 - 16 Ga, White

Autoguidance Harness, X-520

1шт.

7

87695638

STOP LOCK

Autoguidance Harness, X-520

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Autoguidance Harness, X-520

7шт.

8

87704522

ELEC CONNECTOR

Cab Main Harness, X-008

1шт.

8

84068583

PLUG,12 - 16 Ga, White

Cab Main Harness, X-008

1шт.

8

87696197

NUT

Cab Main Harness, X-008

1шт.

8

87696199

SEALING RING

Cab Main Harness, X-008

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cab Main Harness, X-008

30шт.

9

87703942

ELEC CONNECTOR

Cab Main Harness, X-010

1шт.

9

84068583

PLUG,12 - 16 Ga, White

Cab Main Harness, X-010

2шт.

9

87696197

NUT

Cab Main Harness, X-010

1шт.

9

87696199

SEALING RING

Cab Main Harness, X-010

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cab Main Harness, X-010

13шт.

9

87697875

ELEC. TERMINAL PIN,Female, 2 - 3.6 mm2

Cab Main Harness, X-010

4шт.

10

84399574

TERMINAL,5/16" Ring, SAE 10 - 12

Ground 6, X-943

1шт.

11

87644909

WIRE CONNECTOR,Female, 3 Pins

Feeder Angle, X-174

1шт.

11

87680704

SEAL

Feeder Angle, X-174

1шт.

11

87692880

CABLE TERMINAL

Feeder Angle, X-174

3шт.

11

84286327

SEAL

Feeder Angle, X-174

3шт.

12

84266055

PLASTIC

Tie Strap

12шт.

13

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

H Bridge, X-196

1шт.

13

82017049

PLUG

H Bridge, X-196

19шт.

13

82017048

CABLE TERMINAL

H Bridge, X-196

7шт.

14

84137524

ELEC CONNECTOR

Clean Grain Harness, X-220

1шт.

14

87745379

PLUG

Clean Grain Harness, X-220

1шт.

14

87354736

RETAINER

Clean Grain Harness, X-220

1шт.

14

87745379

PLUG

Clean Grain Harness, X-220

1шт.

14

84193153

TERMINAL

Clean Grain Harness, X-220

11шт.

14

84143101

SEAL

Clean Grain Harness, X-220

11шт.

15

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

RH Front Shield Light, X-347

1шт.

15

87680701

SEAL

RH Front Shield Light, X-347

1шт.

15

87690602

LOCK

RH Front Shield Light, X-347

1шт.

15

87680656

CONTACT

RH Front Shield Light, X-347

2шт.

15

84286327

SEAL

RH Front Shield Light, X-347

2шт.

16

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

RH Rear Shield Light, X-348

1шт.

16

87680701

SEAL

RH Rear Shield Light, X-348

1шт.

16

87690602

LOCK

RH Rear Shield Light, X-348

1шт.

16

87680656

CONTACT

RH Rear Shield Light, X-348

2шт.

16

84286327

SEAL

RH Rear Shield Light, X-348

2шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

Fuel Pump, X-183

1шт.

17

84068583

PLUG,12 - 16 Ga, White

Fuel Pump, X-183

1шт.

17

84074638

LOCKING TAB,Locking Wedge, Green

Fuel Pump, X-183

1шт.

17

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Fuel Pump, X-183

2шт.

18

84806091

WIRE CONNECTOR,Female, 3 Pin

Water In Fuel Sensor, X-424

1шт.

18

87691478

SEAL

Water In Fuel Sensor, X-424

1шт.

18

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

Water In Fuel Sensor, X-424

3шт.

18

87691480

SEAL

Water In Fuel Sensor, X-424

3шт.

19

87695582

ELEC CONNECTOR,Female, 2 Pole

Rear Returns RPM, X-186

1шт.

19

84074638

LOCKING TAB,Locking Wedge, Green

Rear Returns RPM, X-186

1шт.

19

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Rear Returns RPM, X-186

2шт.

20

84817101

ELEC CONNECTOR,Male, 16 - 20 SAE

Tailings Volume, X-445

1шт.

20

84817102

LOCKING TAB,Wedge Lock, 3-Pin

Tailings Volume, X-445

1шт.

20

87696141

TERMINAL

Tailings Volume, X-445

3шт.

21

87694153

CONTACT HOUSING,Female, 4 Cavities

Rear Rotor Loss, X-188

1шт.

21

84068583

PLUG,12 - 16 Ga, White

Rear Rotor Loss, X-188

1шт.

21

84074640

LOCKING TAB,Wedge Lock

Rear Rotor Loss, X-188

1шт.

21

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Rear Rotor Loss, X-188

3шт.

22

87679438

WIRE CONNECTOR,Female

Discharge Deflector, X-590

1шт.

22

84806458

COLLAR

Discharge Deflector, X-590

2шт.

22

87686736

ELEC CONNECTOR

Discharge Deflector, X-590

1шт.

22

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Discharge Deflector, X-590

2шт.

22

84286327

SEAL

Discharge Deflector, X-590

2шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

Cleaning Fan Solenoid, X-444

1шт.

23

84074638

LOCKING TAB,Locking Wedge, Green

Cleaning Fan Solenoid, X-444

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cleaning Fan Solenoid, X-444

2шт.

Выбрано товаров: 83
