Запчасти Case IH 9240 (55.101.AC[08]) - STRAW HOOD, WIRE HARNESS, REAR (55) - ELECTRICAL SYSTEMS

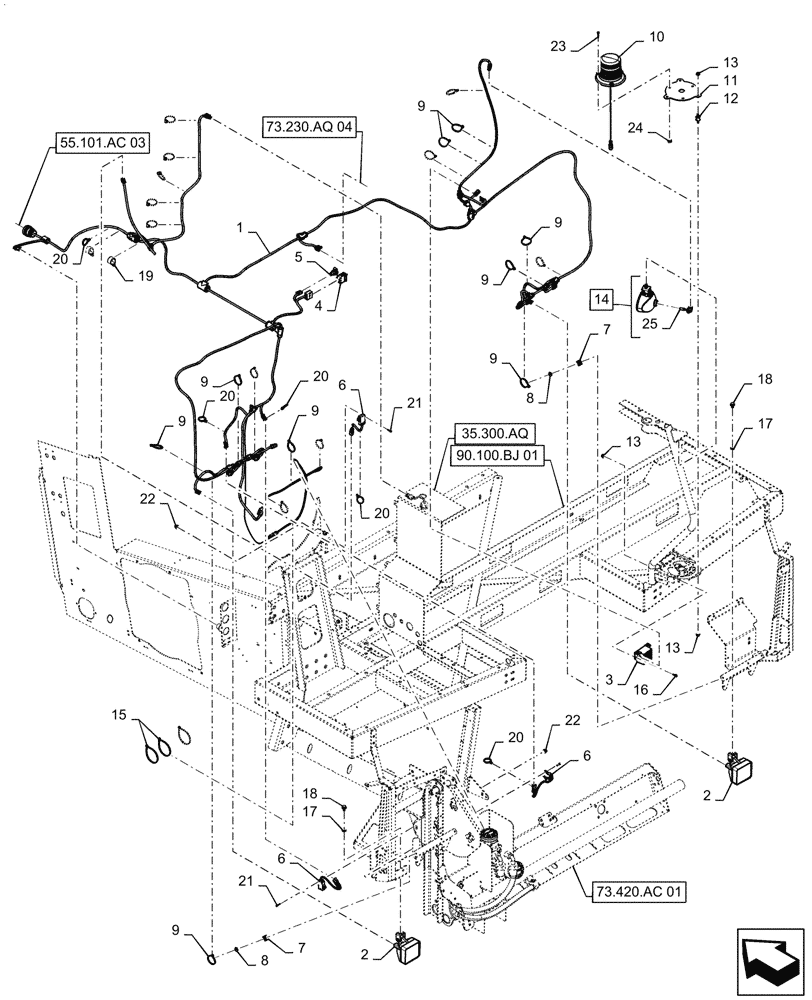

Схема запчастей Case IH 9240 - (55.101.AC[08]) - STRAW HOOD, WIRE HARNESS, REAR (55) - ELECTRICAL SYSTEMS
73.420.ac 01
22
20
6
23
21
9
1
2
11
19
14
6
7
24
18
25
4
21
17
22
20
9
20
9
9
8
10
9
20
3
16
9
5
20
9
18
13
8
9
6
2
13
13
17
15
7
12
35.300.aq
55.101.ac 03
90.100.bj 01
73.230.aq 04

Артикул

Название

Примечание

Количество

1

47586133

WIRE HARNESS

Strawhood Rear

1шт.

2

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

2шт.

3

L112318

ALARM

Backup

1шт.

4

87603462

LIGHT SWITCH

Work

1шт.

5

82002966

POWER SOCKET,M18 x 1

AUX Electric

1шт.

6

47684406

SENSOR

Proximity Switch

3шт.

7

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

6шт.

8

445394

RIVET,Pop, 3/16" x 1/2" OAL

6шт.

9

86566989

CABLE TIE,208mm L

15шт.

10

47730257

BEACON

Light

1шт.

11

84527113

MOUNTING PLATE

Rear Beacon

1шт.

12

47673402

DAMPER

Isolator

3шт.

13

86050300

FLANGE NUT,M6 x 1.0, Cl 10

8шт.

14

87001315

WORK LAMP,Halogen, 12V, 37.5W, Clear

Incl 25

1шт.

15

86566990

CABLE TIE,292mm OAL x 4.8mm W

3шт.

16

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

17

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

18

87021006

BOLT,M10 x 26.4mm, Cl 10.9

2шт.

19

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

20

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

21

14304321

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

6шт.

22

12578015

NUT,M5 x .5, Flg

6шт.

23

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

24

412152

NUT,M6 x 1, Cl 8.8

3шт.

25

87107077

BULB,Halogen, 12V, 37.5W

1шт.

Выбрано товаров: 25
