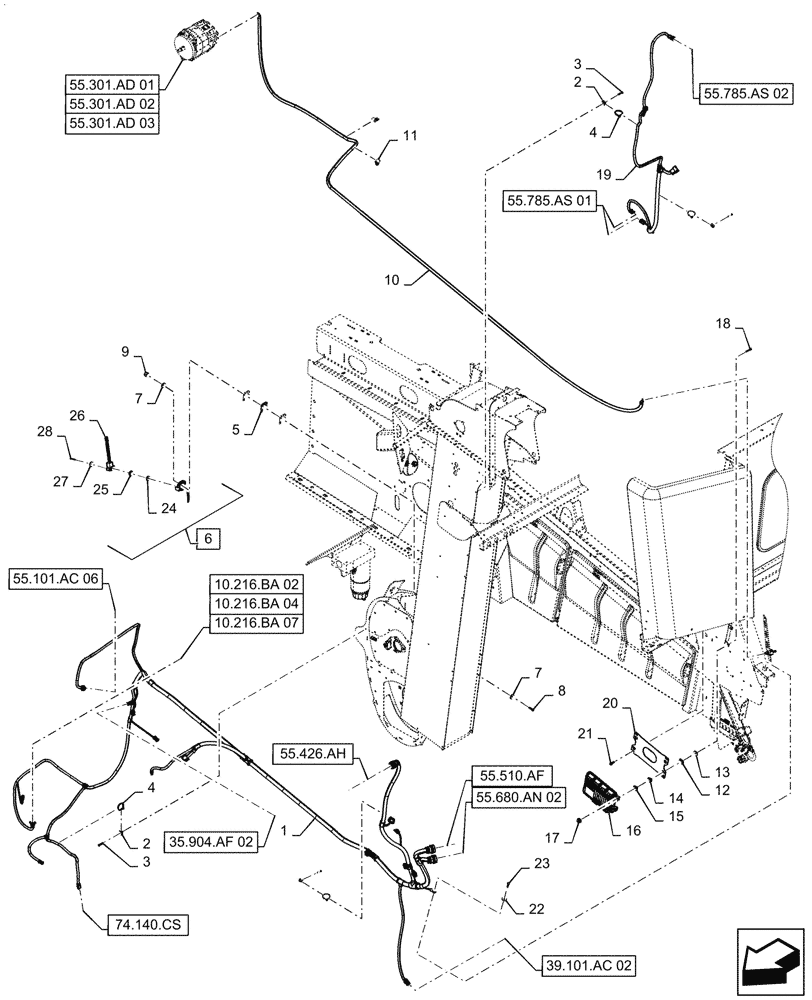

Запчасти Case IH 9240 (55.101.AC[02]) - WIRE HARNESS, FRAME, RH (55) - ELECTRICAL SYSTEMS

1

47981844

WIRE HARNESS

Main Frame, RH

1шт.

2

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

21шт.

3

445394

RIVET,Pop, 3/16" x 1/2" OAL

21шт.

4

86566989

CABLE TIE,208mm L

32шт.

5

87494198

ADJUSTING PLATE

Sensor

3шт.

6

84212481

SENSOR

Incl 24 - 28

1шт.

7

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

4шт.

8

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

10

47700973

CABLE

Jumper, 12V to Cab

1шт.

11

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

12

87672920

RUBBER SEAL,19mm ID x 30mm L x 3mm Thk

4шт.

13

87317427

WASHER,0.28" ID x 1" OD x 0.11" Thk

4шт.

14

47131603

PAD,14mm ID x 26mm OD x 8mm Thk

Elastic Plug

4шт.

15

47131590

SPACER,8.5mm ID x 26mm OD x 10mm Thk

4шт.

16

47398072

MODULE

H-Bridge, Full Population

1шт.

17

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

18

87670759

FLANGE BOLT,M6 x 1.0 x 46.6mm, Cl 10.9

4шт.

19

47591310

WIRE HARNESS

Clean Grain Elevator

1шт.

20

47411578

PLATE

Mounting

1шт.

21

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

24

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

25

129979

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

26

87283865

SENSOR

Angle Position

1шт.

27

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

2шт.

28

86837479

SELF-TAP SCREW,Hex Hd, M4.8 x 40

2шт.
